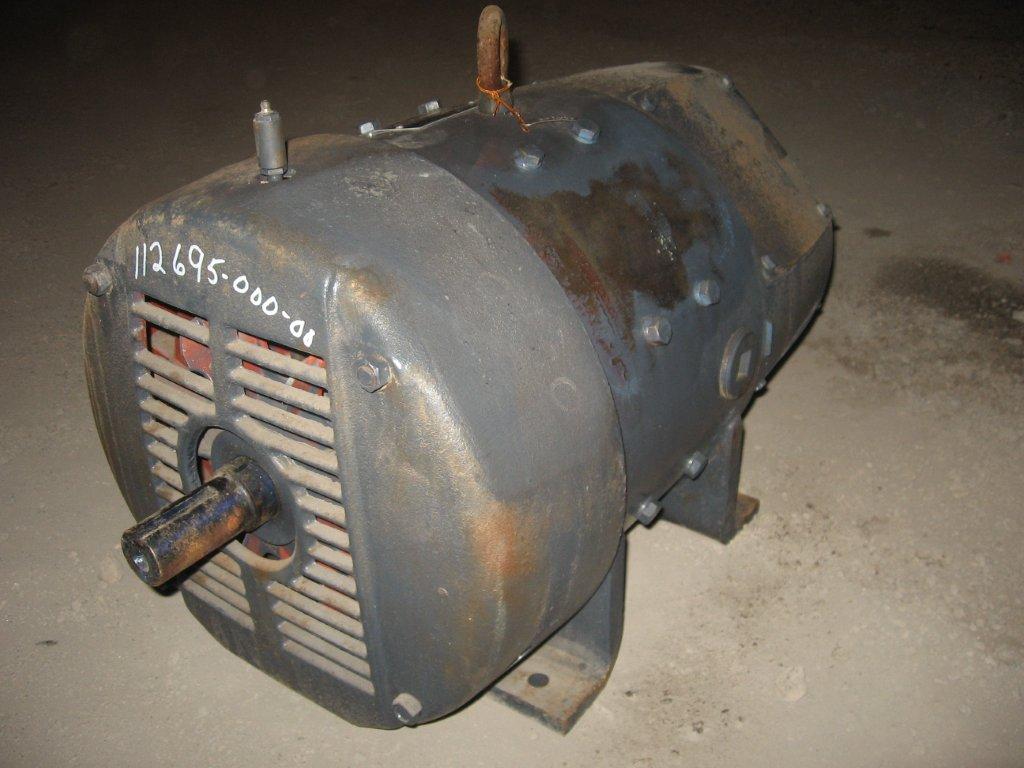

10HP, 1150/2800RPM, 240V, GENERAL ELECTRIC, CD326, SHUNT USED DC MOTOR
 "11269500000 10HP, 1150/2800RPM, 240V, GENERAL ELECTRIC, CD326, SHUNT USED DC MOTOR")

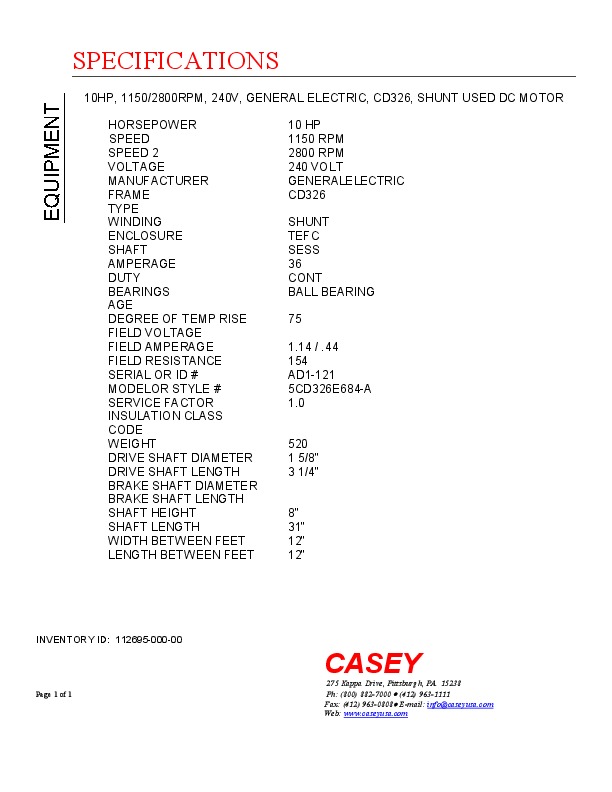

| INVENTORY ID | 11269500000 |
| TITLE | 10HP, 1150/2800RPM, 240V, GENERAL ELECTRIC, CD326, SHUNT USED DC MOTOR |
| HORSEPOWER | 10 HP |
| SPEED | 1150 RPM |
| SPEED 2 | 2800 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 326 |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| AMPERAGE | 36 |
| DUTY | CONT |
| BEARINGS | BALL BEARING |
| FIELD AMPERAGE | 1.14 / .44 |
| FIELD RESISTANCE | 154 |
| DEGREE OF TEMPERATURE RISE | 75 |
| SERIAL NUMBER OR ID NUMBER | AD1-121 |
| MODEL NUMBER OR STYLE NUMBER | 5CD326E684-A |
| SERVICE FACTOR | 1.0 |
| WEIGHT | 520 |
| DRIVE SHAFT DIMENSION | 1 5/8" |
| DRIVE SHAFT LENGTH | 3 1/4" |
| SHAFT HEIGHT | 8" |
| SHAFT LENGTH | 31" |
| WIDTH BETWEEN FEET | 12" |
| LENGTH BETWEEN FEET | 12" |
