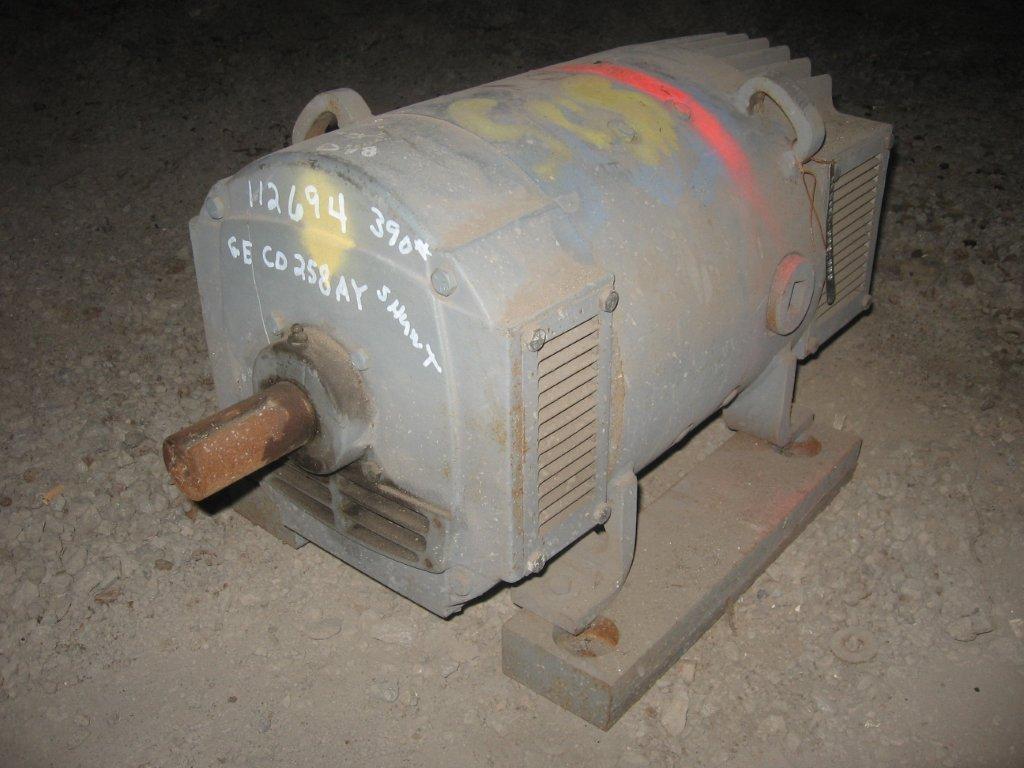

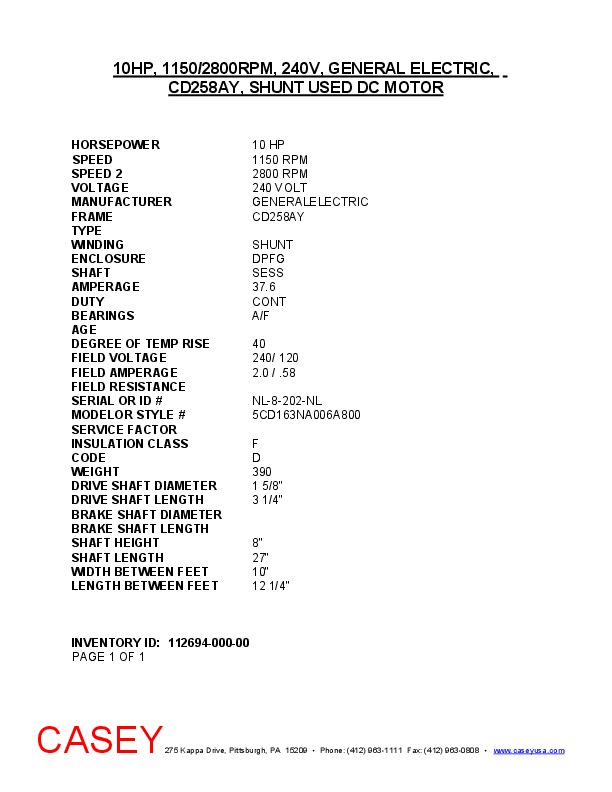

10HP, 1150/2800RPM, 240V, GENERAL ELECTRIC, CD258AY, SHUNT USED DC MOTOR
 "11269400000 10HP, 1150/2800RPM, 240V, GENERAL ELECTRIC, CD258AY, SHUNT USED DC MOTOR")
| INVENTORY ID | 11269400000 |
| TITLE | 10HP, 1150/2800RPM, 240V, GENERAL ELECTRIC, CD258AY, SHUNT USED DC MOTOR |
| HORSEPOWER | 10 HP |
| SPEED | 1150 RPM |
| SPEED 2 | 2800 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 258AY |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | DPFG |
| SHAFT | SESS |
| AMPERAGE | 37.6 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240/ 120 |
| FIELD AMPERAGE | 2.0 / .58 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | NL-8-202-NL |
| MODEL NUMBER OR STYLE NUMBER | 5CD163NA006A800 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| WEIGHT | 390 |
| DRIVE SHAFT DIMENSION | 1 5/8" |
| DRIVE SHAFT LENGTH | 3 1/4" |
| SHAFT HEIGHT | 8" |
| SHAFT LENGTH | 27" |
| WIDTH BETWEEN FEET | 10" |
| LENGTH BETWEEN FEET | 12 1/4" |
