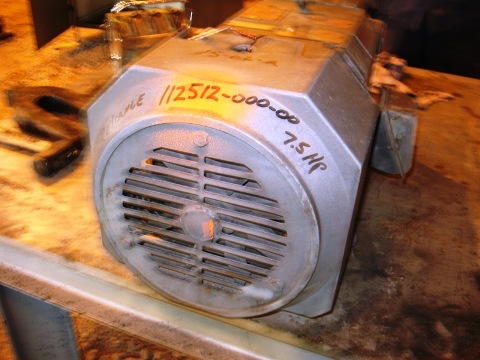

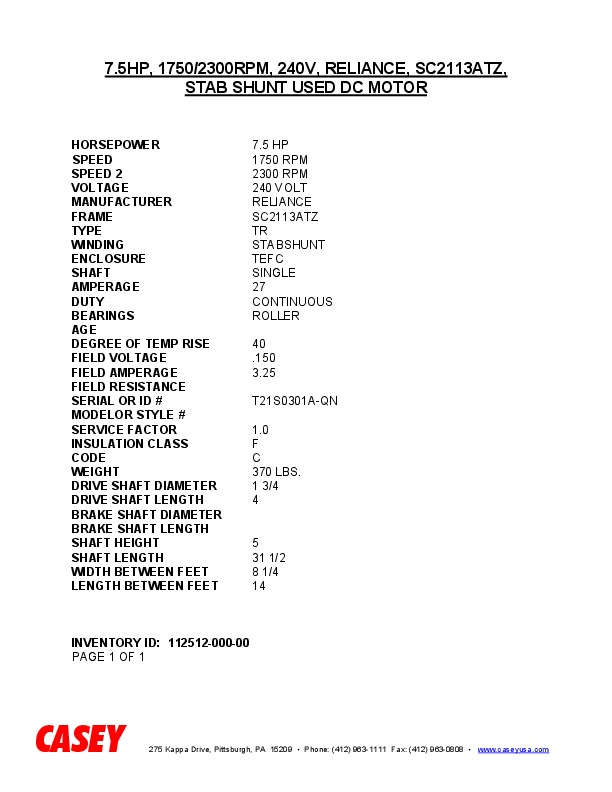

7.5HP, 1750/2300RPM, 240V, RELIANCE, SC2113ATZ, STAB SHUNT USED DC MOTOR
 "11251200000 7.5HP, 1750/2300RPM, 240V, RELIANCE, SC2113ATZ, STAB SHUNT USED DC MOTOR")
| INVENTORY ID | 11251200000 |
| TITLE | 7.5HP, 1750/2300RPM, 240V, RELIANCE, SC2113ATZ, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 7.5 HP |
| SPEED | 1750 RPM |
| SPEED 2 | 2300 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | RELIANCE |
| FRAME | 2113ATZ |
| TYPE | TR |
| WINDING | STABSHUNT |
| ENCLOSURE | TEFC |
| SHAFT | SINGLE |
| AMPERAGE | 27 |
| DUTY | CONTINUOUS |
| BEARINGS | ROLLER |
| FIELD VOLTAGE | .150 |
| FIELD AMPERAGE | 3.25 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | T21S0301A-QN |
| SERVICE FACTOR | 1.0 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 370 LBS. |
| DRIVE SHAFT DIMENSION | 1 3/4 |
| DRIVE SHAFT LENGTH | 4 |
| SHAFT HEIGHT | 5 |
| SHAFT LENGTH | 31 1/2 |
| WIDTH BETWEEN FEET | 8 1/4 |
| LENGTH BETWEEN FEET | 14 |
