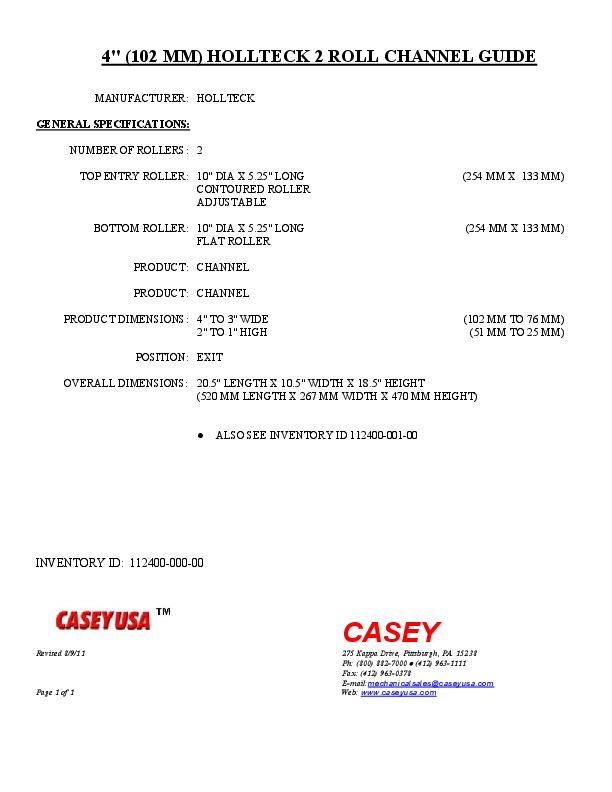

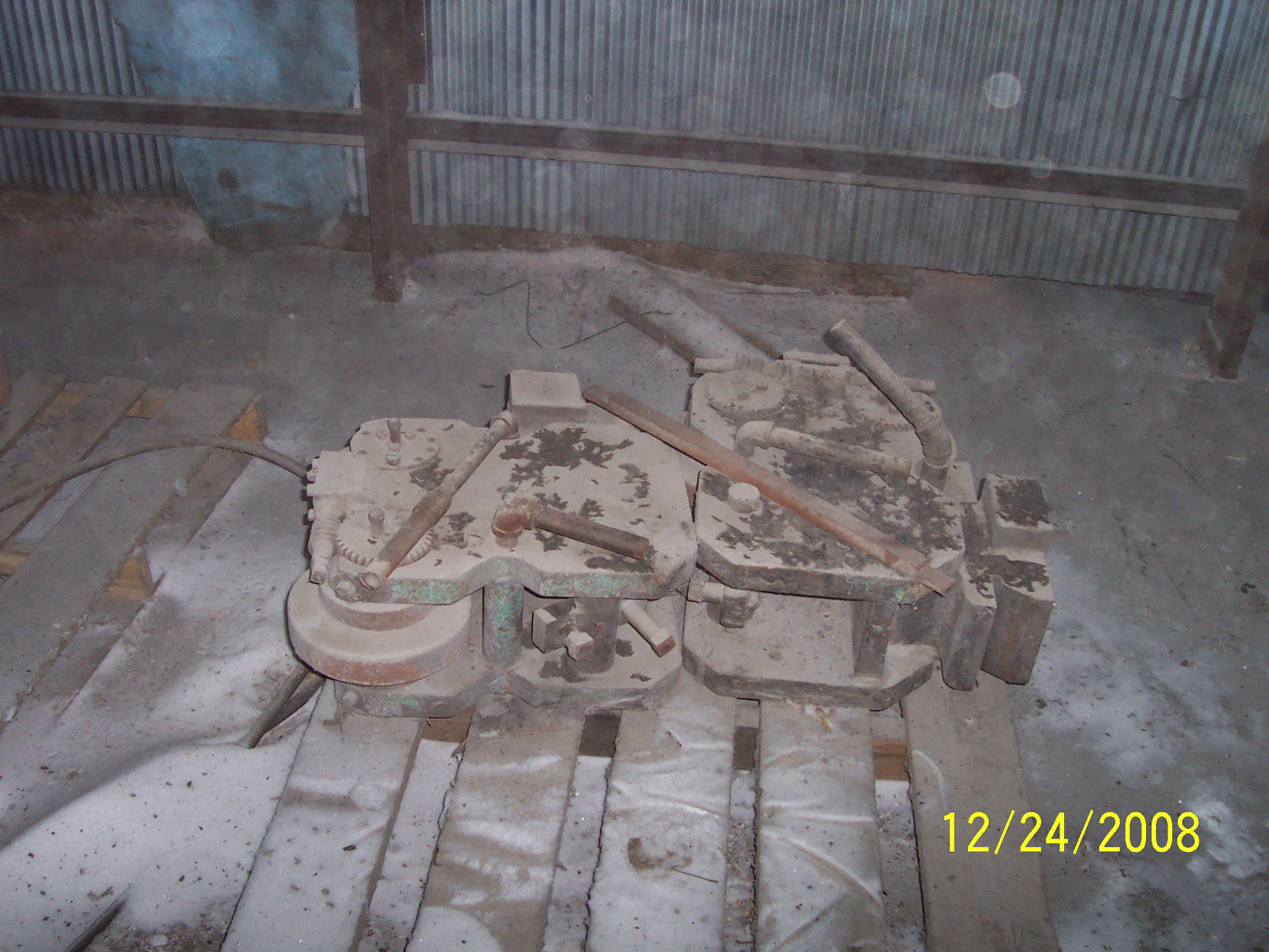

4" (102 MM) HOLLTECK 2 ROLL CHANNEL GUIDE
 "11240000000 4\" (102 MM) HOLLTECK 2 ROLL CHANNEL GUIDE")
| INVENTORY ID | 11240000000 |
| TITLE | 4" (102 MM) HOLLTECK 2 ROLL CHANNEL GUIDE |
| MANUFACTURER OF EQUIPMENT | HOLLTECK |
| PRODUCT (ROUND, FLAT, ANGLE) | CHANNEL |
| ENTRY TOP ROLLER DIAMETER | 10 |
| ENTRY TOP ROLLER LENGTH | 5.25 |
| EXIT BOTTOM ROLLER DIAMETER | 10 |
| EXIT ROLLER LENGTH | 5.25 |
| EXIT BOTTOM ROLLER LENGTH | 5.25 |
| ROLLER PROFILE (FLAT / CONCAVE) | BOTTOM ROLLER FLAT - TOP ROLLER CONTOURED |
| NUMBER OF ROLLERS | 2 |
| PRODUCT WIDTH MIN | 4 |
| PRODUCT WIDTH MAX | 3 |
| PRODUCT HEIGHT MIN | 2 |
| PRODUCT HEIGHT MAX | 1 |
| (ENTRY OR EXIT) | EXIT |
| OVERALL LENGTH | 20.5 |
| OVERALL WIDTH | 10.5 |
| OVERALL HEIGHT | 18.5 |
| FEATURE 1 | ADJUSTABLE TOP ROLLER |
