SQUARE-D AT BRAKE CONTROLLER BULLETIN 5500
 "11152800000 SQUARE-D AT BRAKE CONTROLLER BULLETIN 5500")
 "11152800000 SQUARE-D AT BRAKE CONTROLLER BULLETIN 5500")
 "11152800000 SQUARE-D AT BRAKE CONTROLLER BULLETIN 5500")
SQUARE-D AT BRAKE CONTROLLER BULLETIN 5500

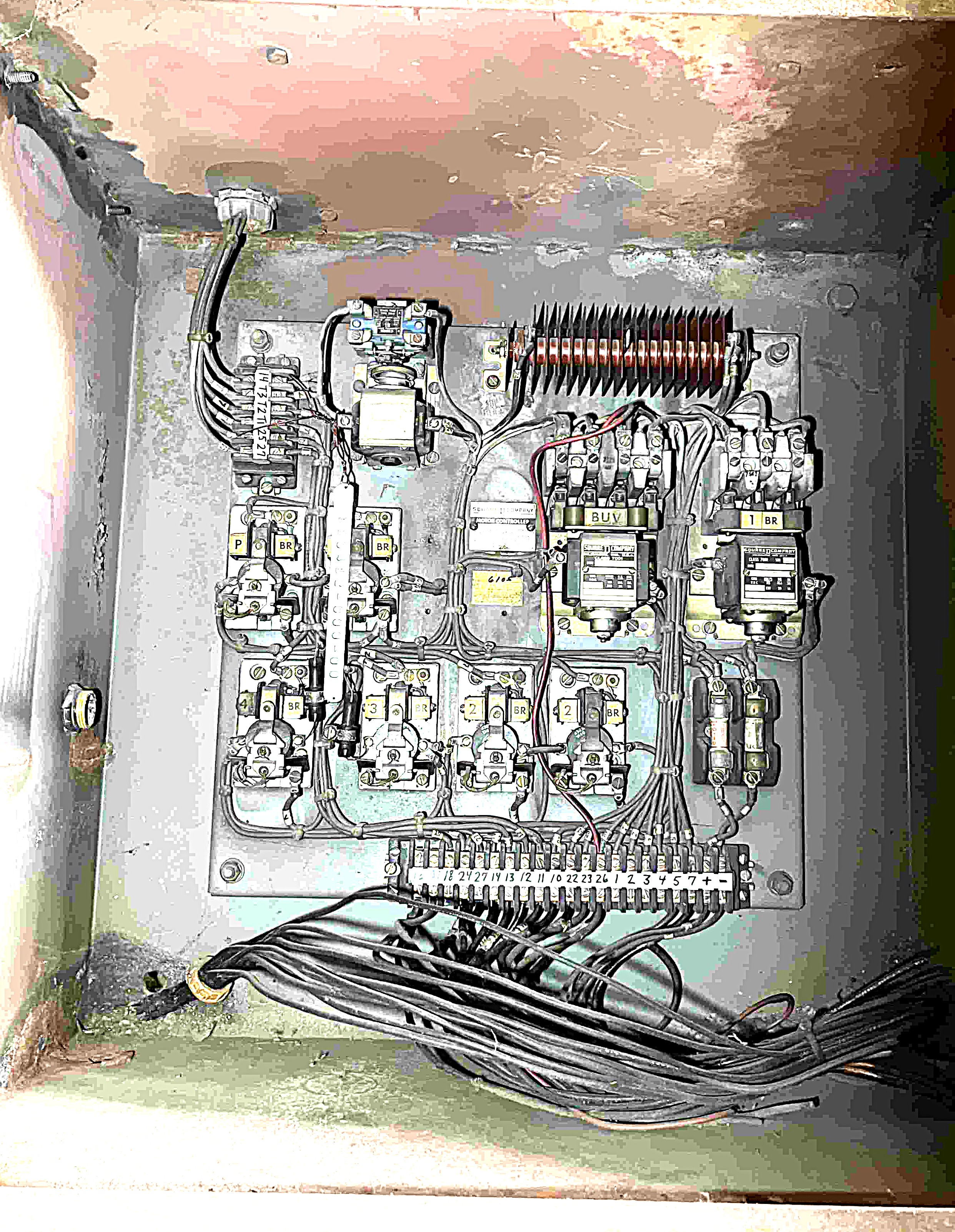

DC OPERATED
BRAKE CONTROL RELAY BUV TYPE RO-40
IBR RELAY WIHT NORMALLY CLOSED CONTACTOR TYPE RO-30
TR TIMING RELAY OH-1E
(5) BR BRAKE RELAY TYPE J-30
30 AMP FUSED BOX
AC/DC RECTIFIER

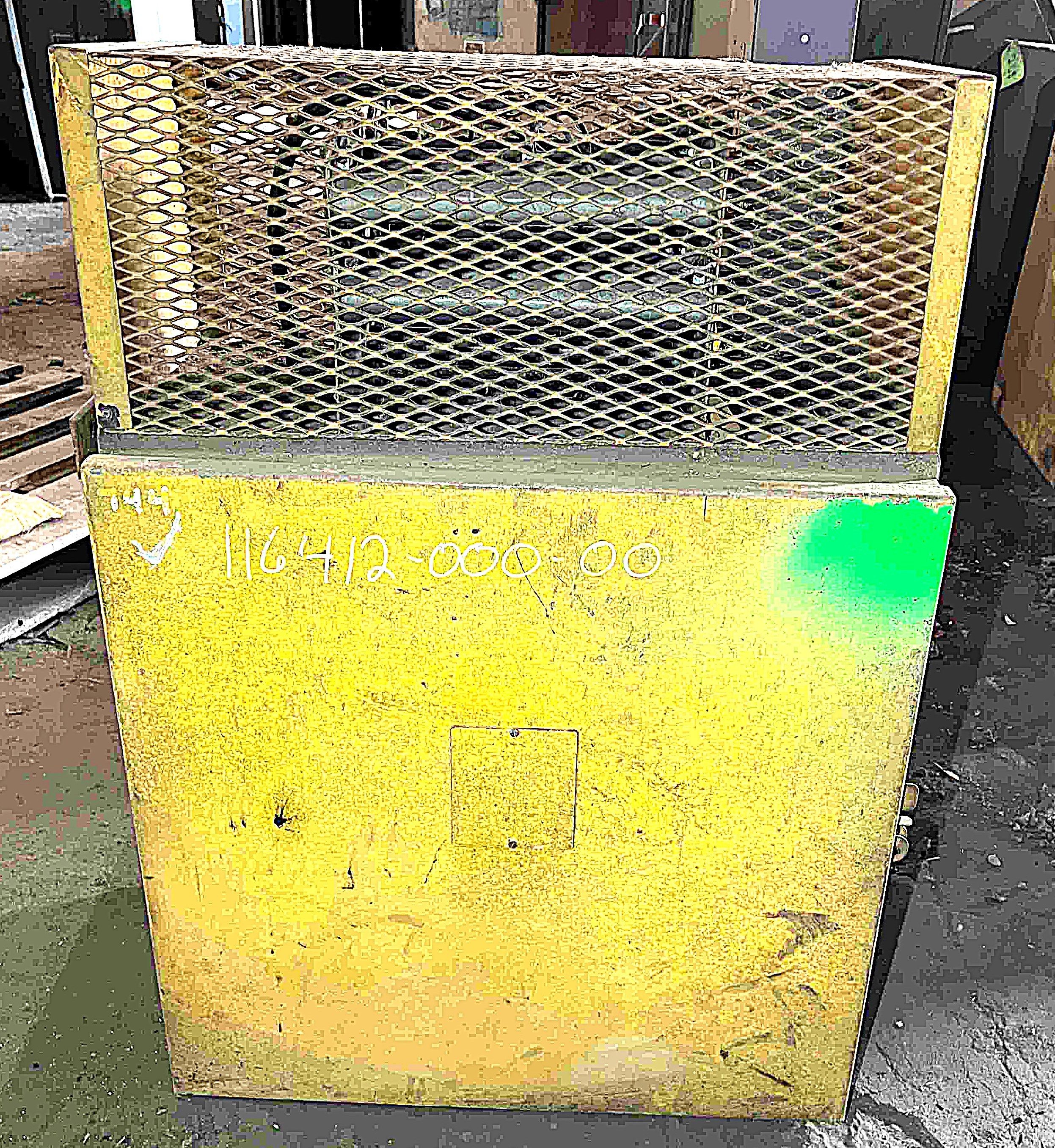

TOP MOUNTED RESISTORS IN ENCLOSURE: 33" H X 23" W X 10" D
INVENTORY ID: 111528-000-00

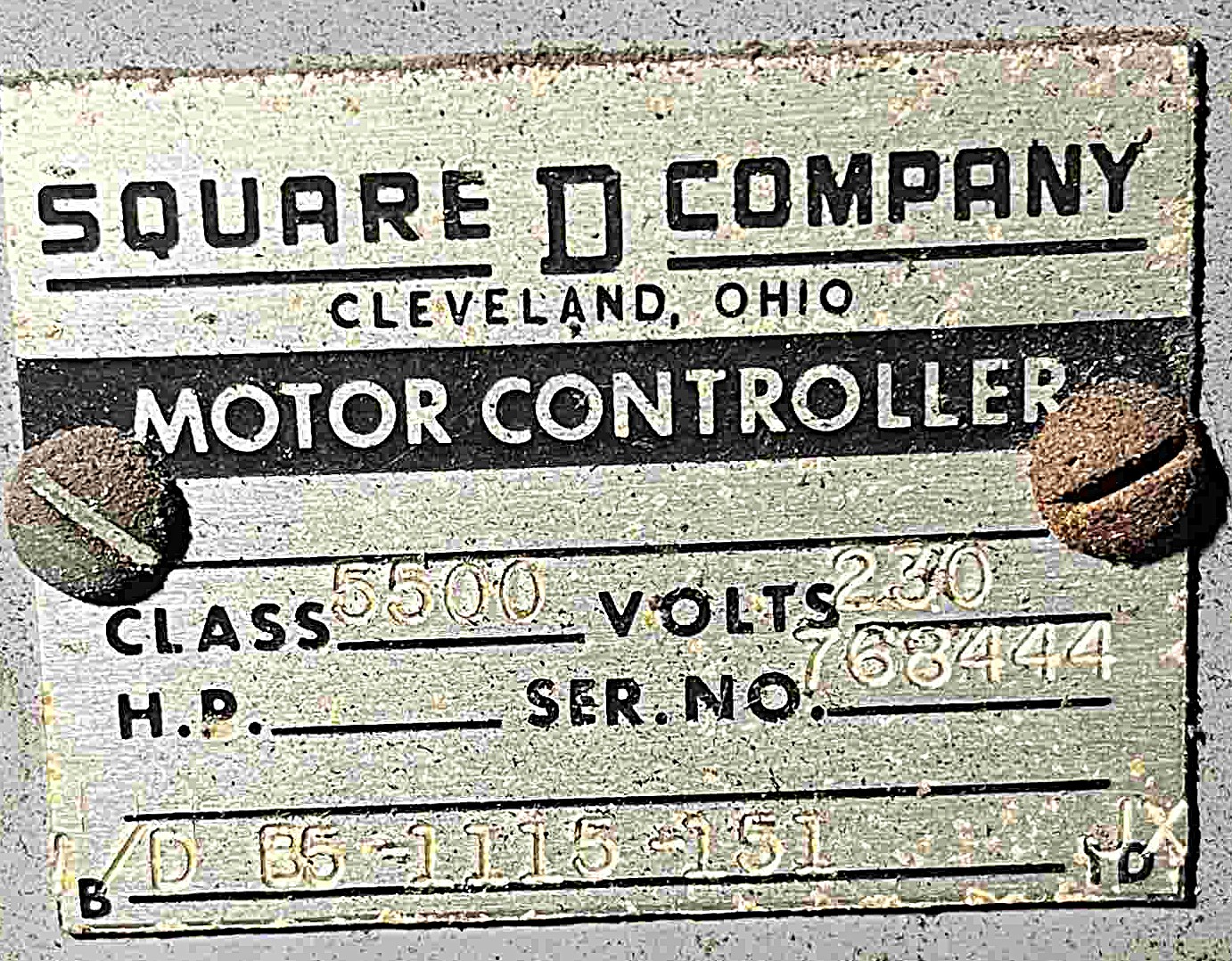

| INVENTORY ID | 11152800000 |
| TITLE | SQUARE-D AT BRAKE CONTROLLER BULLETIN 5500 |
| MANUFACTURER | SQUARE-D |
| TYPE | 5500 |
| VOLTS | 230 |
| ENCLOSURE | YES |
| CABINET HEIGHT | 33 |
| CABINET WIDTH | 23 |
| CABINET DEPTH | 16 |
| WIRING DIAGRAM | WD-B51115-151 |
