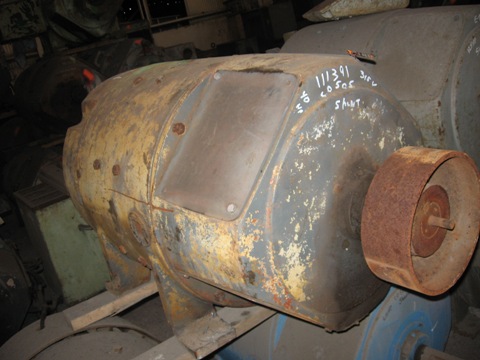

40 HP, 650/2000 RPM, 315V, GENERAL ELECTRIC, CD505, SHUNT USED DC MOTOR
 "11139100000 40 HP, 650/2000 RPM, 315V, GENERAL ELECTRIC, CD505, SHUNT USED DC MOTOR")
 "11139100000 40 HP, 650/2000 RPM, 315V, GENERAL ELECTRIC, CD505, SHUNT USED DC MOTOR")

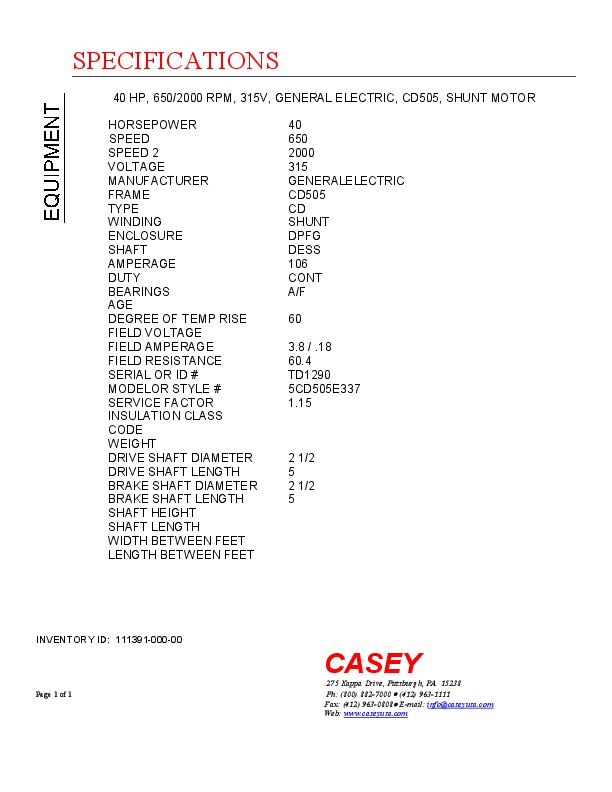

| INVENTORY ID | 11139100000 |
| TITLE | 40 HP, 650/2000 RPM, 315V, GENERAL ELECTRIC, CD505, SHUNT USED DC MOTOR |
| HORSEPOWER | 40 HP |
| SPEED | 650 RPM |
| SPEED 2 | 2000 RPM |
| VOLTAGE | 315 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 505 |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | DPFG |
| SHAFT | DESS |
| AMPERAGE | 106 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD AMPERAGE | 3.8 / .18 |
| FIELD RESISTANCE | 60.4 |
| DEGREE OF TEMPERATURE RISE | 60 |
| SERIAL NUMBER OR ID NUMBER | TD1290 |
| MODEL NUMBER OR STYLE NUMBER | 5CD505E337 |
| SERVICE FACTOR | 1.15 |
| DRIVE SHAFT DIMENSION | 2 1/2 |
| DRIVE SHAFT LENGTH | 5 |
| BRAKE SHAFT DIAMETER | 2 1/2 |
| BRAKE SHAFT LENGTH | 5 |
