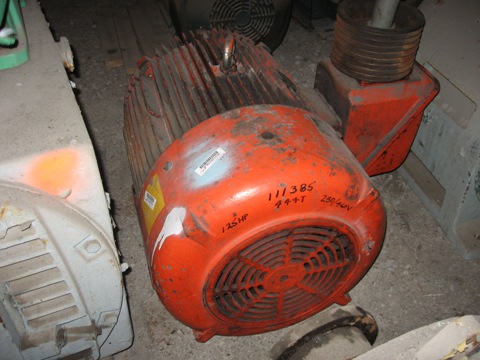

125 HP, 1775 RPM, 230/460V, TECO, 444T, INDUCTION AC MOTOR
 "11138500000 125 HP, 1775 RPM, 230/460V, TECO, 444T, INDUCTION AC MOTOR")

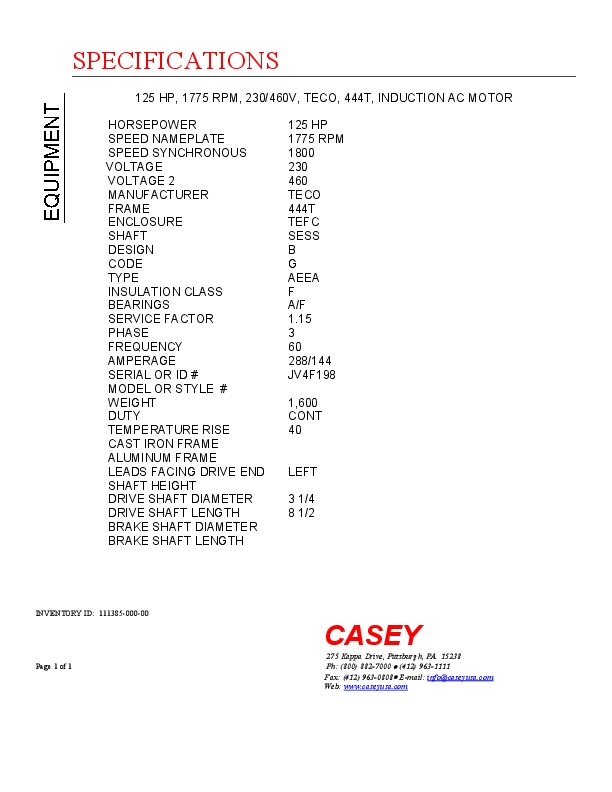

| INVENTORY ID | 11138500000 |
| TITLE | 125 HP, 1775 RPM, 230/460V, TECO, 444T, INDUCTION AC MOTOR |
| HORSEPOWER | 125 HP |
| SPEED NAMEPLATE | 1775 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | TECO |
| FRAME | 444T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | AEEA |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 288/144 |
| SERIAL NUMBER OR ID NUMBER | JV4F198 |
| WEIGHT | 1,600 |
| DUTY | CONT |
| TEMPERATURE RISE | 40 |
| LEADS FACING DRIVE END | LEFT |
| DRIVE SHAFT DIAMETER | 3 1/4 |
| DRIVE SHAFT LENGTH | 8 1/2 |
