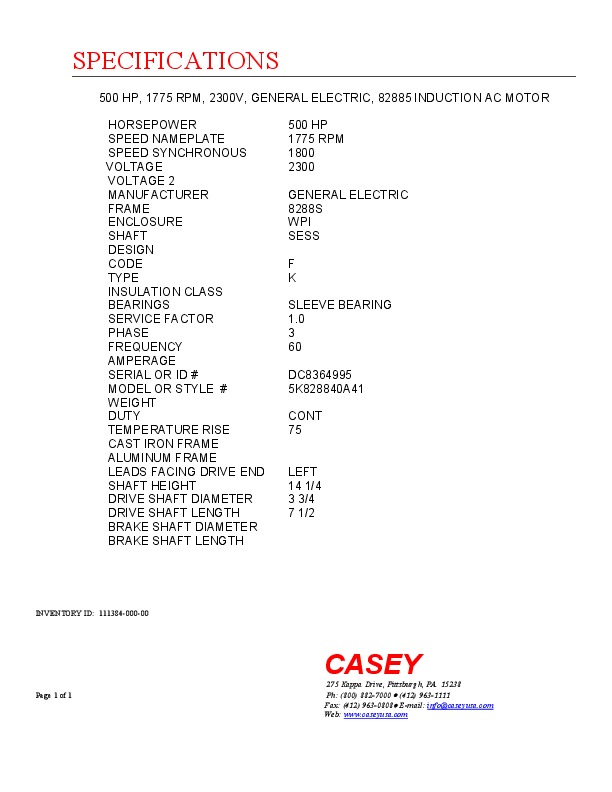

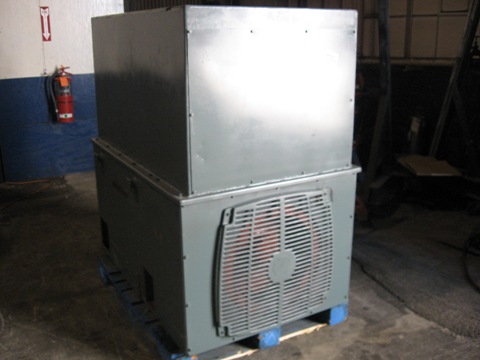

500 HP, 1775 RPM, 2300V, GENERAL ELECTRIC, 82885 INDUCTION AC MOTOR
 "11138400000 500 HP, 1775 RPM, 2300V, GENERAL ELECTRIC, 82885 INDUCTION AC MOTOR")
| INVENTORY ID | 11138400000 |
| TITLE | 500 HP, 1775 RPM, 2300V, GENERAL ELECTRIC, 82885 INDUCTION AC MOTOR |
| HORSEPOWER | 500 HP |
| SPEED NAMEPLATE | 1775 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 2300 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 8288S |
| ENCLOSURE | WPI |
| SHAFT | SESS |
| CODE | F |
| TYPE | K |
| BEARINGS | SLEEVE BEARING |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| SERIAL NUMBER OR ID NUMBER | DC8364995 |
| MODEL NUMBER OR STYLE NUMBER | 5K828840A41 |
| WEIGHT | 3,700 |
| DUTY | CONT |
| TEMPERATURE RISE | 75 |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 14 1/4 |
| DRIVE SHAFT DIAMETER | 3 3/4 |
| DRIVE SHAFT LENGTH | 7 1/2 |
