QTY (2) 15HP, 1750RPM, 500V, GENERAL ELECTRIC, CD288AT, SHUNT USED DC MOTOR
 "11110900000 QTY (2) 15HP, 1750RPM, 500V, GENERAL ELECTRIC, CD288AT, SHUNT USED DC MOTOR")

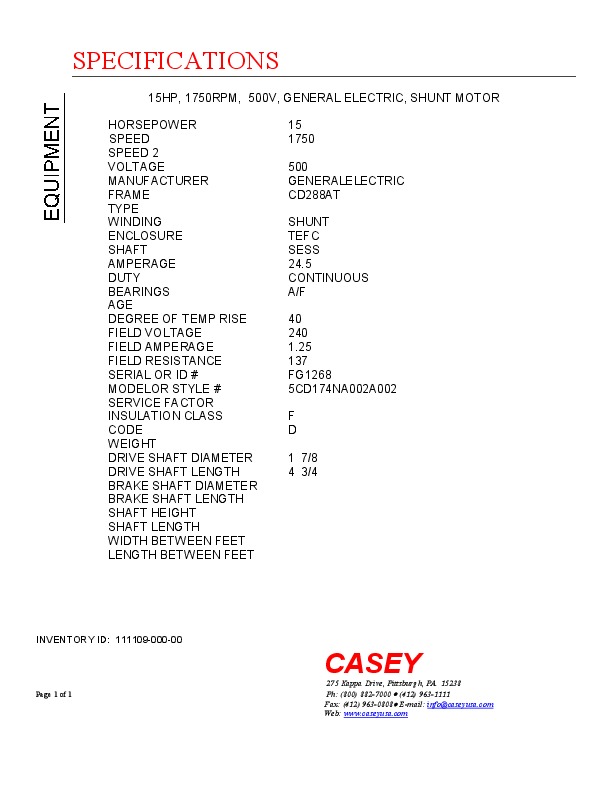

| INVENTORY ID | 11110900000 |
| TITLE | QTY (2) 15HP, 1750RPM, 500V, GENERAL ELECTRIC, CD288AT, SHUNT USED DC MOTOR |
| HORSEPOWER | 15 HP |
| SPEED | 1750 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |

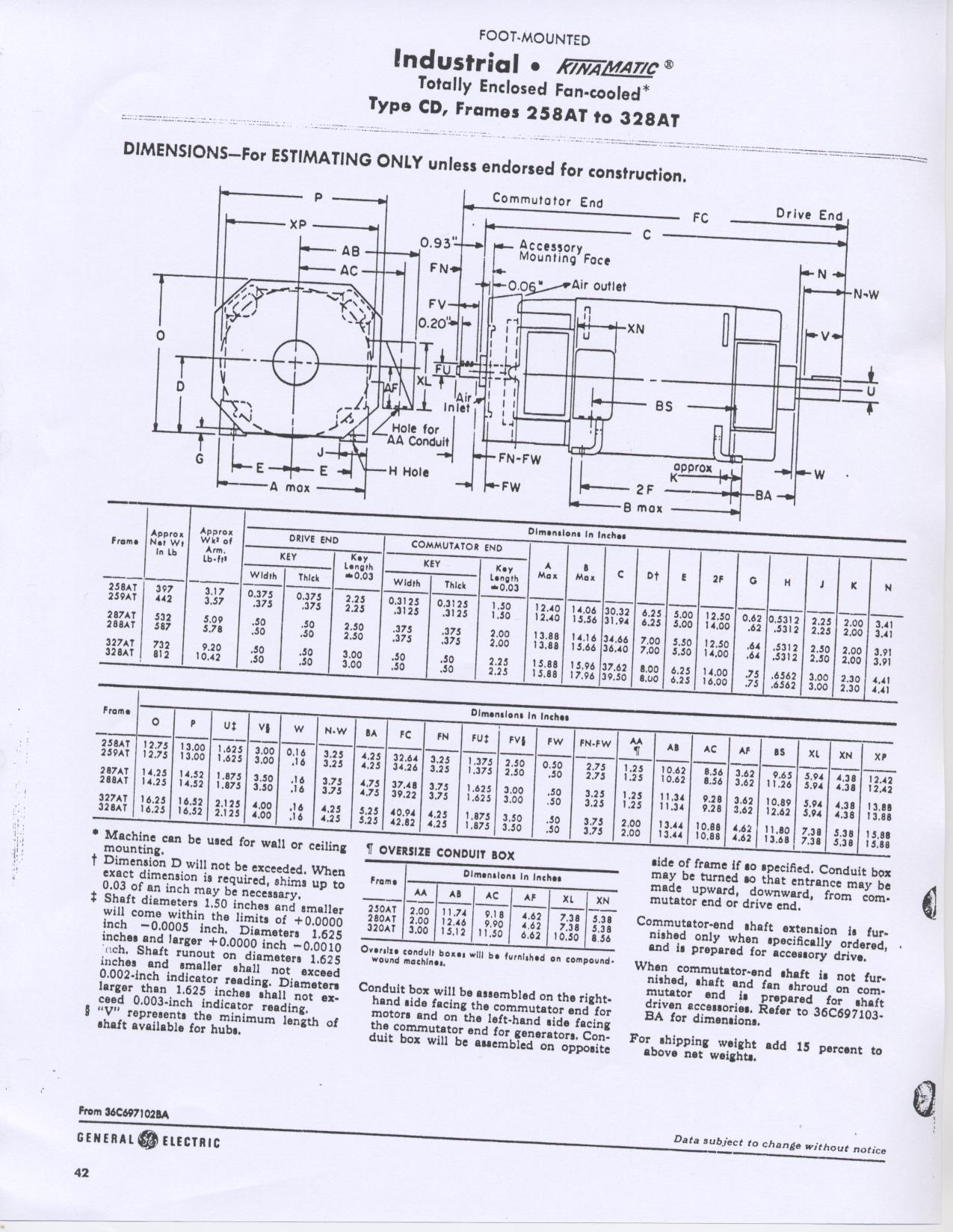

| FRAME | 288AT |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| AMPERAGE | 24.5 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 1.25 |
| FIELD RESISTANCE | 137 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | FG1268 |
| MODEL NUMBER OR STYLE NUMBER | 5CD174NA002A002 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| WEIGHT | 587 |
| DRIVE SHAFT DIMENSION | 1 7/8 |
| DRIVE SHAFT LENGTH | 4 3/4 |
