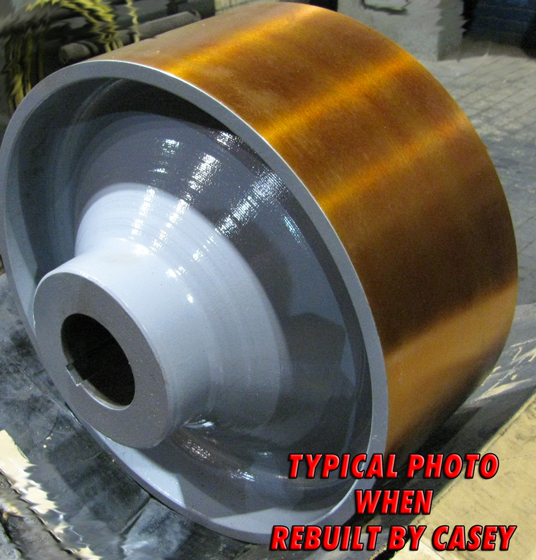

13" AISE WHEEL, STANDARD OFFSET, BORED FOR 610 MOTOR (W-195), CRANE BRAKE WHEEL
 "11071000000 13\" AISE WHEEL, STANDARD OFFSET, BORED FOR 610 MOTOR (W-195), CRANE BRAKE WHEEL")
| INVENTORY ID | 11071000000 |
| TITLE | 13" AISE WHEEL, STANDARD OFFSET, BORED FOR 610 MOTOR (W-195), CRANE BRAKE WHEEL |
| DIAMETER | 13 |
| AISE | AISE |
| MOTOR BORE | 610 |

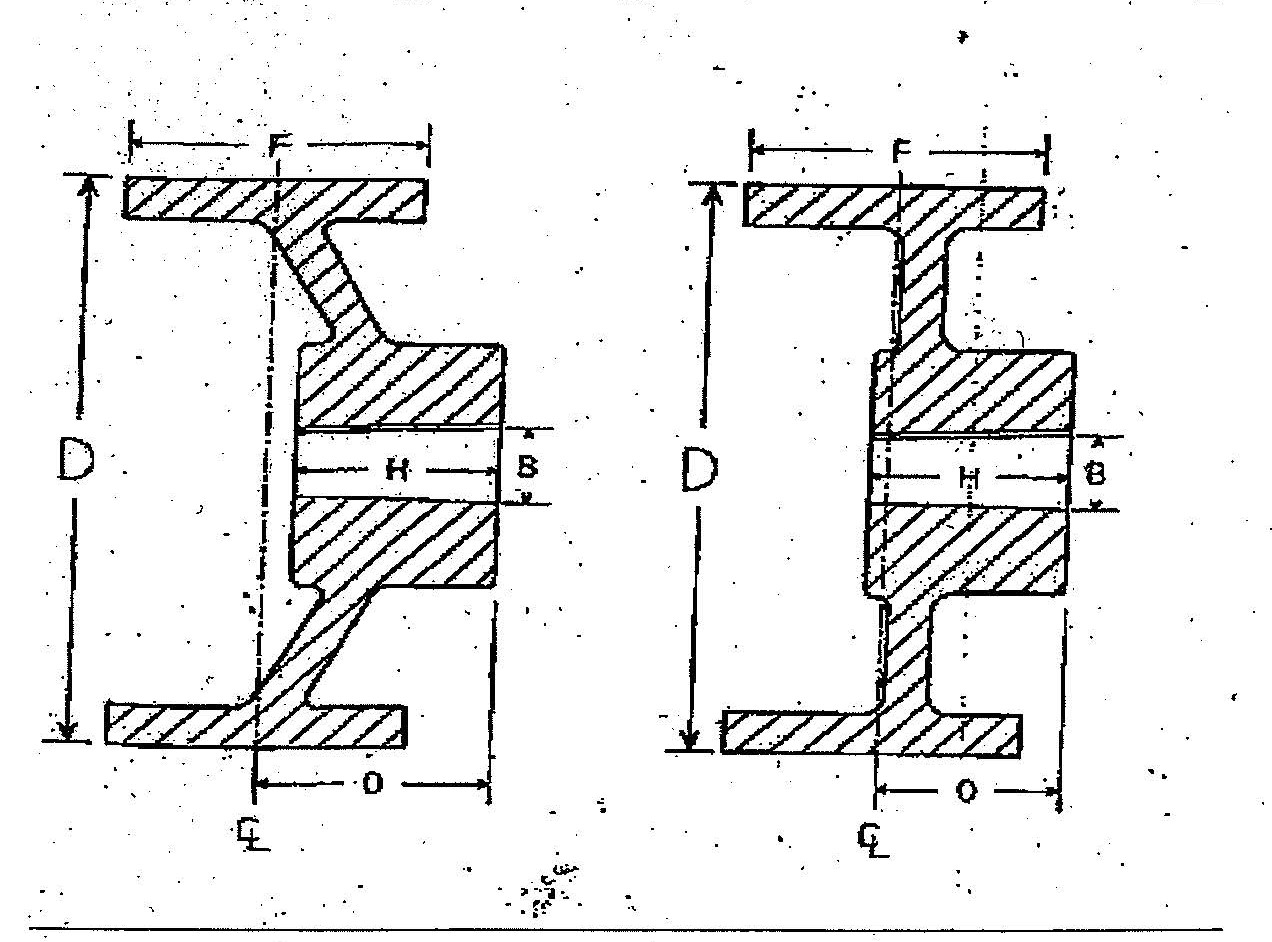

| FACE WIDTH "F" | 5 3/4 |
| HUB OFFSET "O" | 5 3/8 |
| HUB LENGTH "H" | 4 1/2 |
| BORE DIAMETER "B" | 3 1/4 |
| BORE TAPER PER FOOT | 1 1/4 |
| KEYWAY WIDTH "S" | 3/4 |
| KEYWAY DEPTH "T" | 1/4 |
