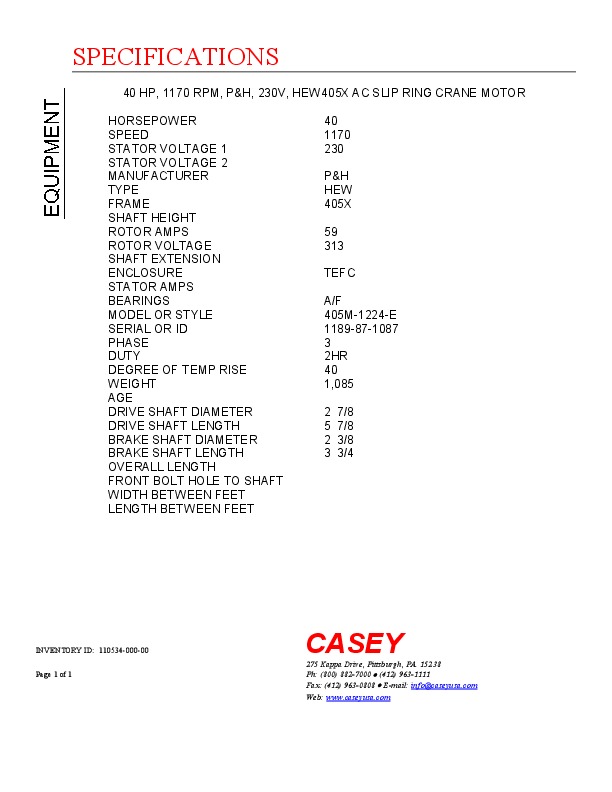

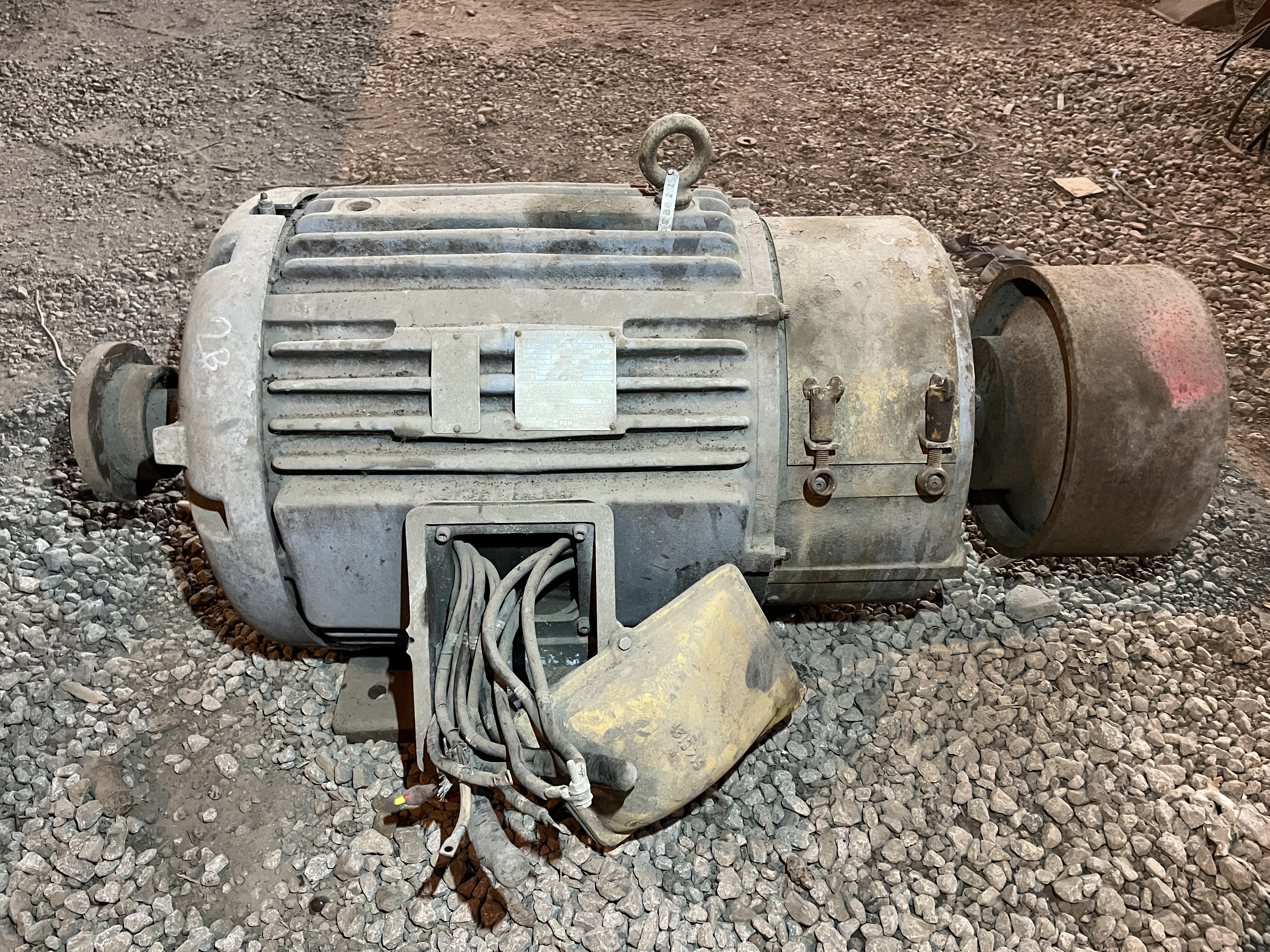

40 HP, 1170 RPM, P&H, 230V, HEW405X AC SLIP RING CRANE MOTOR
| INVENTORY ID | 11053400000 |
| TITLE | 40 HP, 1170 RPM, P&H, 230V, HEW405X AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 40 |
| SPEED | 1170 |
| STATOR VOLTAGE 1 | 230 |
| MANUFACTURER | P&H |
| TYPE | HEW |
| FRAME | 405X |
| ROTOR AMPS | 59 |
| ROTOR VOLTS | 313 |
| ENCLOSURE | TEFC |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | 405M-1224-E |
| SERIAL NUMBER OR ID NUMBER | 1189-87-1087 |
| PHASE | 3 |
| DUTY (MINUTES) | 2HR |
| DEGREE OF TEMPERATURE RISE | 40 |
| WEIGHT | 1,085 |
| DRIVE SHAFT DIAMETER | 2 7/8 |
| DRIVE SHAFT LENGTH | 5 7/8 |
| BRAKE SHAFT DIAMETER | 2 3/8 |
| BRAKE SHAFT LENGTH | 3 3/4 |
