QTY (6) 75HP, 1150/2000RPM, 500V, GENERAL ELECTRIC, CD409AT, STAB SHUNT USED DC MOTOR
 "11020100000 QTY (6) 75HP, 1150/2000RPM, 500V, GENERAL ELECTRIC, CD409AT, STAB SHUNT USED DC MOTOR")

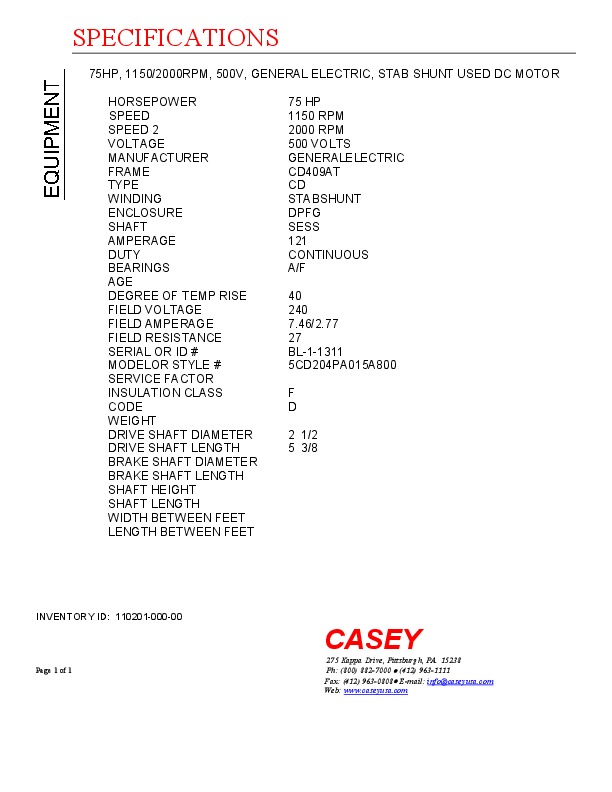

| INVENTORY ID | 11020100000 |
| TITLE | QTY (6) 75HP, 1150/2000RPM, 500V, GENERAL ELECTRIC, CD409AT, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 75 HP |
| SPEED | 1150 RPM |
| SPEED 2 | 2000 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 409AT |
| TYPE | CD |
| WINDING | STABSHUNT |
| ENCLOSURE | DPFG |
| SHAFT | SESS |
| AMPERAGE | 121 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240 |
| FIELD AMPERAGE | 7.46/2.77 |
| FIELD RESISTANCE | 27 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | BL-1-1311 |
| MODEL NUMBER OR STYLE NUMBER | 5CD204PA015A800 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| DRIVE SHAFT DIMENSION | 2 1/2 |
| DRIVE SHAFT LENGTH | 5 3/8 |
