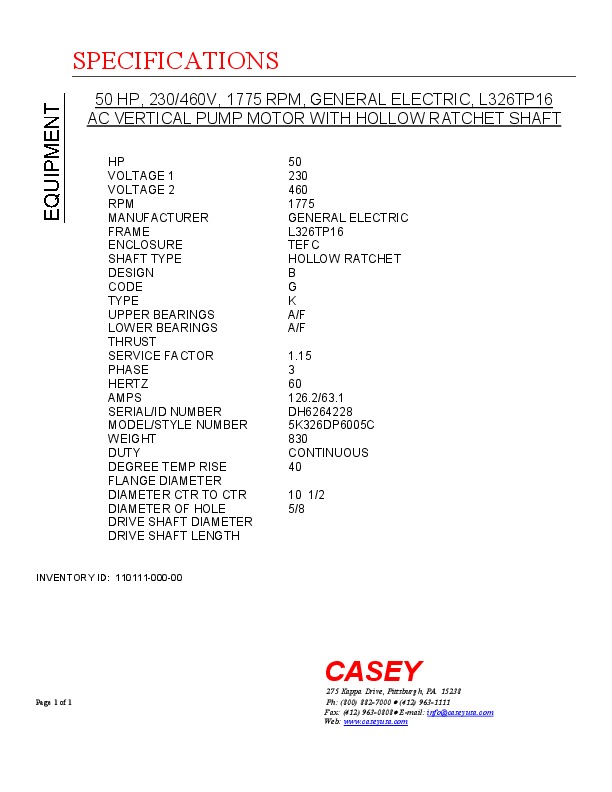

50 HP, 1775 RPM, 230/460V, GENERAL ELECTRIC, L326TP16 AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT WITH RATCHET
| INVENTORY ID | 11011100000 |
| TITLE | 50 HP, 1775 RPM, 230/460V, GENERAL ELECTRIC, L326TP16 AC VERTICAL PUMP MOTOR WITH HOLLOW SHAFT WITH RATCHET |
| HP | 50 |
| RPM | 1775 |
| VOLTAGE 2 | 460 |
| VOLTAGE 1 | 230 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | L326TP16 |
| ENCLOSURE | TEFC |
| SHAFT TYPE | HOLLOW WITH RATCHET |
| DESIGN | B |
| CODE | G |
| TYPE | K |
| UPPER BEARINGS | A/F |
| LOWER BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| HERTZ | 60 |
| AMPS | 126.2/63.1 |
| SERIAL/ID NUMBER | DH6264228 |
| MODEL/STYLE NUMBER | 5K326DP6005C |
| WEIGHT | 830 |
| DUTY | CONTINUOUS |
| DEGREE TEMP RISE | 40 |
| DIAMETER CTR TO CTR | 10 1/2 |
| DIAMETER OF HOLE | 5/8 |
