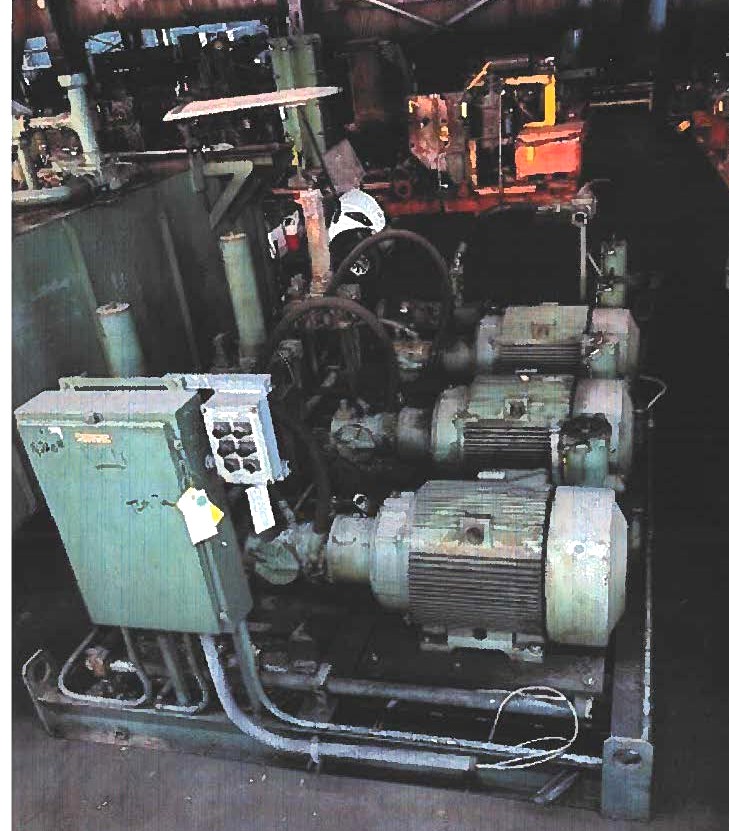

112 GPM, 3000 PSI, DENISON HYDRAULIC PUMPING SYSTEM P7W-2R1B-C10-00, SERIES 7, WITH 3 PUMPS AND 3 - 100 HP AC MOTORS
 "10971000300 112 GPM, 3000 PSI, DENISON HYDRAULIC PUMPING SYSTEM P7W-2R1B-C10-00, SERIES 7, WITH 3 PUMPS AND 3 - 100 HP AC MOTORS")
 "10971000300 112 GPM, 3000 PSI, DENISON HYDRAULIC PUMPING SYSTEM P7W-2R1B-C10-00, SERIES 7, WITH 3 PUMPS AND 3 - 100 HP AC MOTORS")
 "10971000300 112 GPM, 3000 PSI, DENISON HYDRAULIC PUMPING SYSTEM P7W-2R1B-C10-00, SERIES 7, WITH 3 PUMPS AND 3 - 100 HP AC MOTORS")
 "10971000300 112 GPM, 3000 PSI, DENISON HYDRAULIC PUMPING SYSTEM P7W-2R1B-C10-00, SERIES 7, WITH 3 PUMPS AND 3 - 100 HP AC MOTORS")
112 GPM, 3000 PSI, DENISON HYDRAULIC PUMPING SYSTEM P7W-2R1B-C10-00, SERIES 7, WITH 3 PUMPS AND 3 - 100 HP AC MOTORS
MANUFACTURER PARKER DENISON P7 GOLD CUP SERIES
MODEL #: P7W-2R1B-C10-00
DIMENSIONS: 189" L X 92" W X 63" H (4800 MM X 2336 MM X 1600 MM)

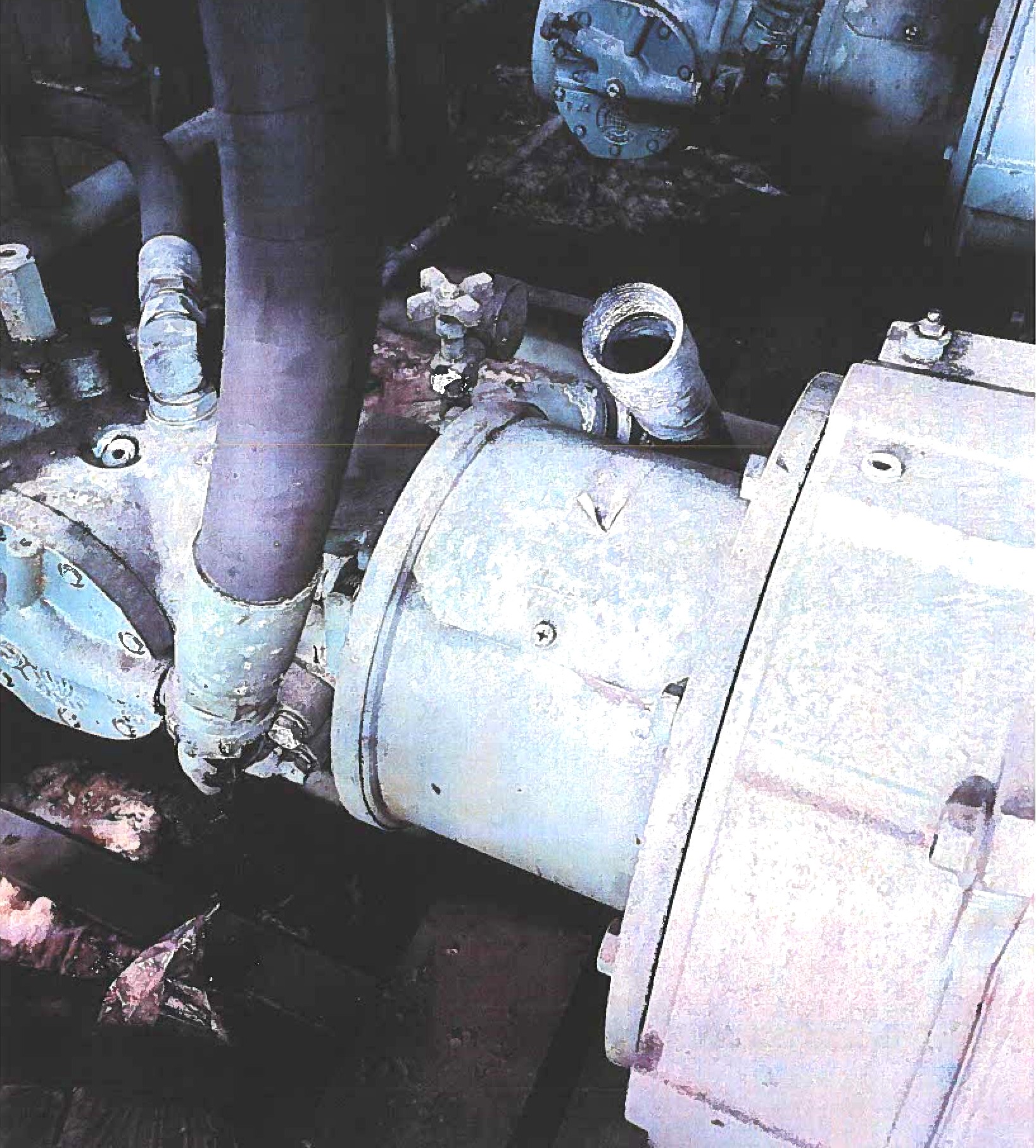

PUMP TYPE: HEAVY DUTY AXIAL PISTON PUMPS. 37.7 GPM EACH AND WERE USED AT 3000 PSI BUT ACCORDING TO DENISON, ARE GOOD UP TO 5000 PSI.
PREVIOUS USE: USED 3 - 37.7 GPM PUMPS TO SUPPLY HYDRAULICS TO THE HAGC CYLINDER WITH ONE PUMP NOT IN SERVICE AND KEPT AS A SPARE. IF IT WAS NECESSARY TO SERVICE ONE OF THE PUMPS IN OPERATION, THE SPARE COULD BE USED SIMPLY BY TURNING A VALVE HANDLE.

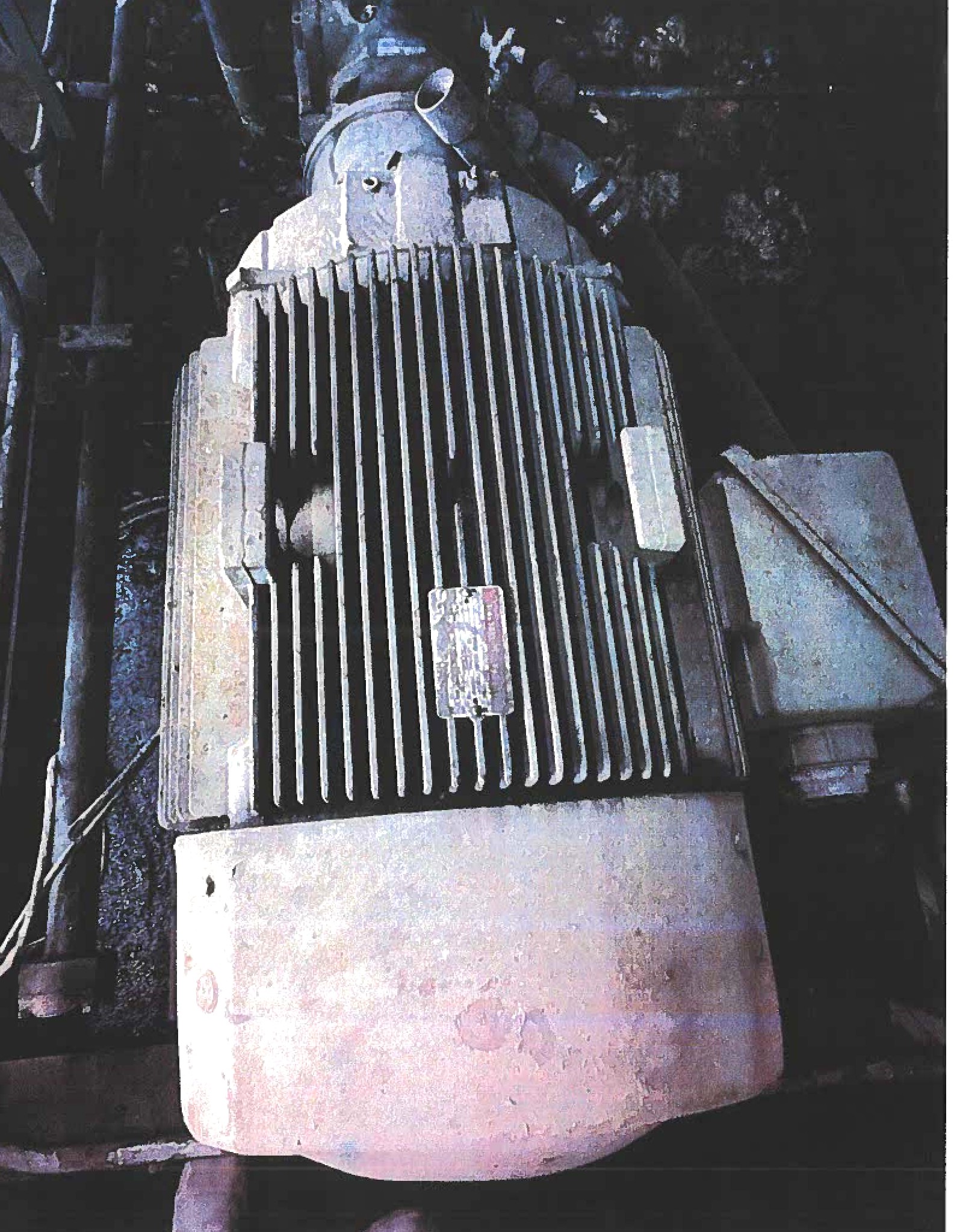

PUMPS ARE DRIVEN BY 100 HP, 1185 RPM, 460 VOLT, 3-PHASE, 60-CYCLE FLANGE MOUNTED FRAME 444 TSC, AC MOTORS.
WEIGHT: 11,700 LBS (5307 KG) - Estimated
CONDITION: GOOD CONDITION
INVENTORY #: 109710-003-00
| INVENTORY ID | 10971000300 |
| TITLE | 112 GPM, 3000 PSI, DENISON HYDRAULIC PUMPING SYSTEM P7W-2R1B-C10-00, SERIES 7, WITH 3 PUMPS AND 3 - 100 HP AC MOTORS |
| DIMENSIONS | 189" L X 92" W X 63" H (4800 mm X 2336 mm X 1600 mm) |
| MANUFACTURER OF EQUIPMENT | DENISON |
| WEIGHT | 11,700 lbs (5307 kg) - Estimated |
| CONDITION | GOOD CONDITION |
