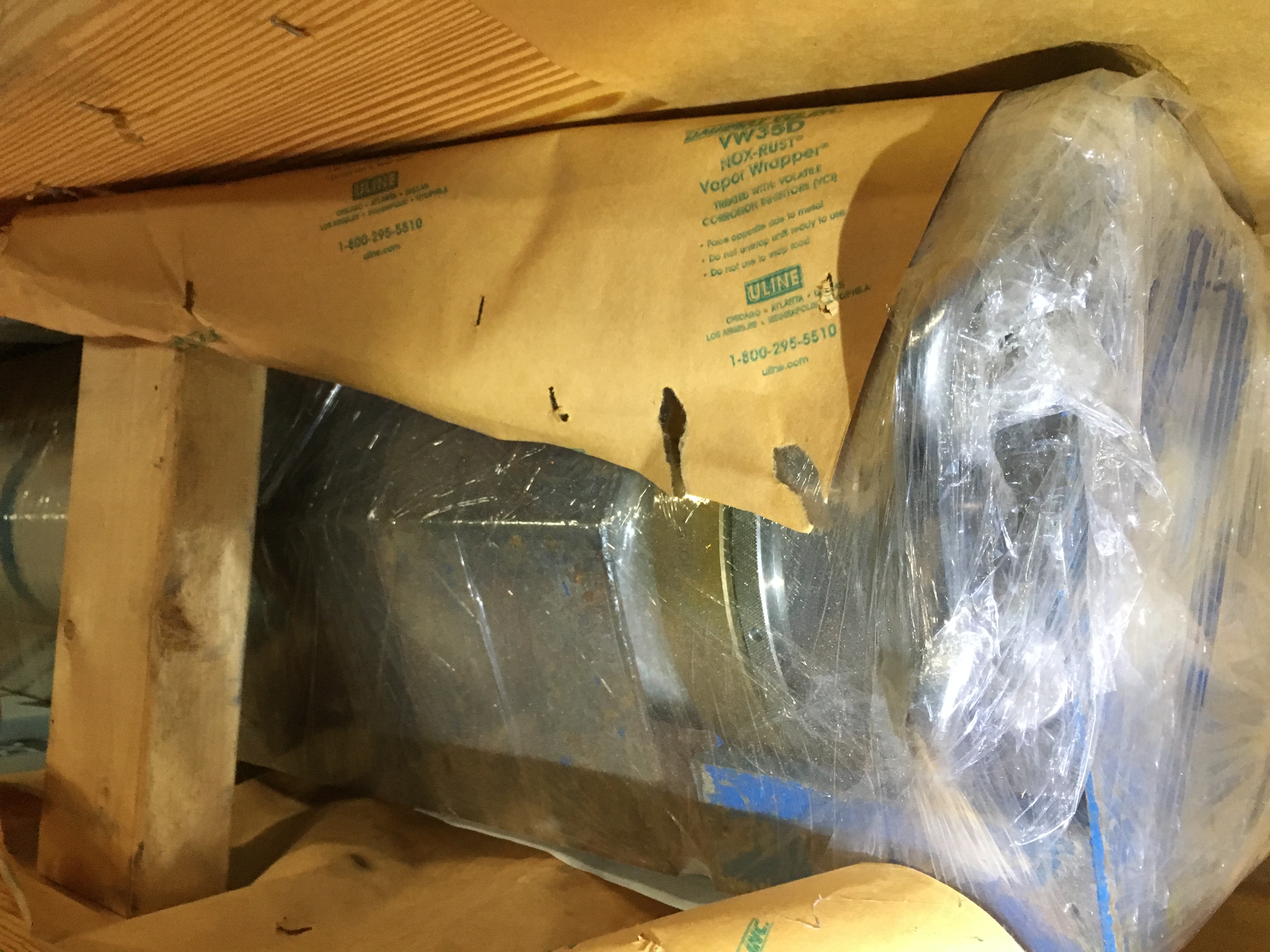

BRONER SHAPE METER ROLL IN A BOX
 "10970901600 BRONER SHAPE METER ROLL IN A BOX")
 "10970901600 BRONER SHAPE METER ROLL IN A BOX")
| INVENTORY ID | 10970901600 |
| TITLE | BRONER SHAPE METER ROLL IN A BOX |
| AGE | 1997 |
| TYPE | CONTINUOUS OUTPUT MULTPLE AIR BEARING UNIT; INDEPENDENTLY ROTATING ROTARS; INTEGRAL TRANSDUCER HOUSING |
| WORKING WIDTH | 75" (1900 MM) |
| OVERALL LENGTH | 100.39" (2550 MM) |
| ROLL DIA. | 6.93" (175 MM) |
| QTY ROTORS | 25 |
| ROTOR HARDNESS | 58-60 ROCKWELL C |
| PRESSDUCTOR | DRUCK PDCR 820 (QTY 25) |
| POWER SUPPLY | 120 VAC INPUT / 12 TO 15 VDC OUTPUT |
| DIMENSIONS | 111" LENGTH X 31" WIDTH X 25" HEIGHT (2820 MM LENGTH X 790 MM WIDTH X 635 MM LENGTH) |
| WEIGHT | 1080 LBS. (490 KG) |
