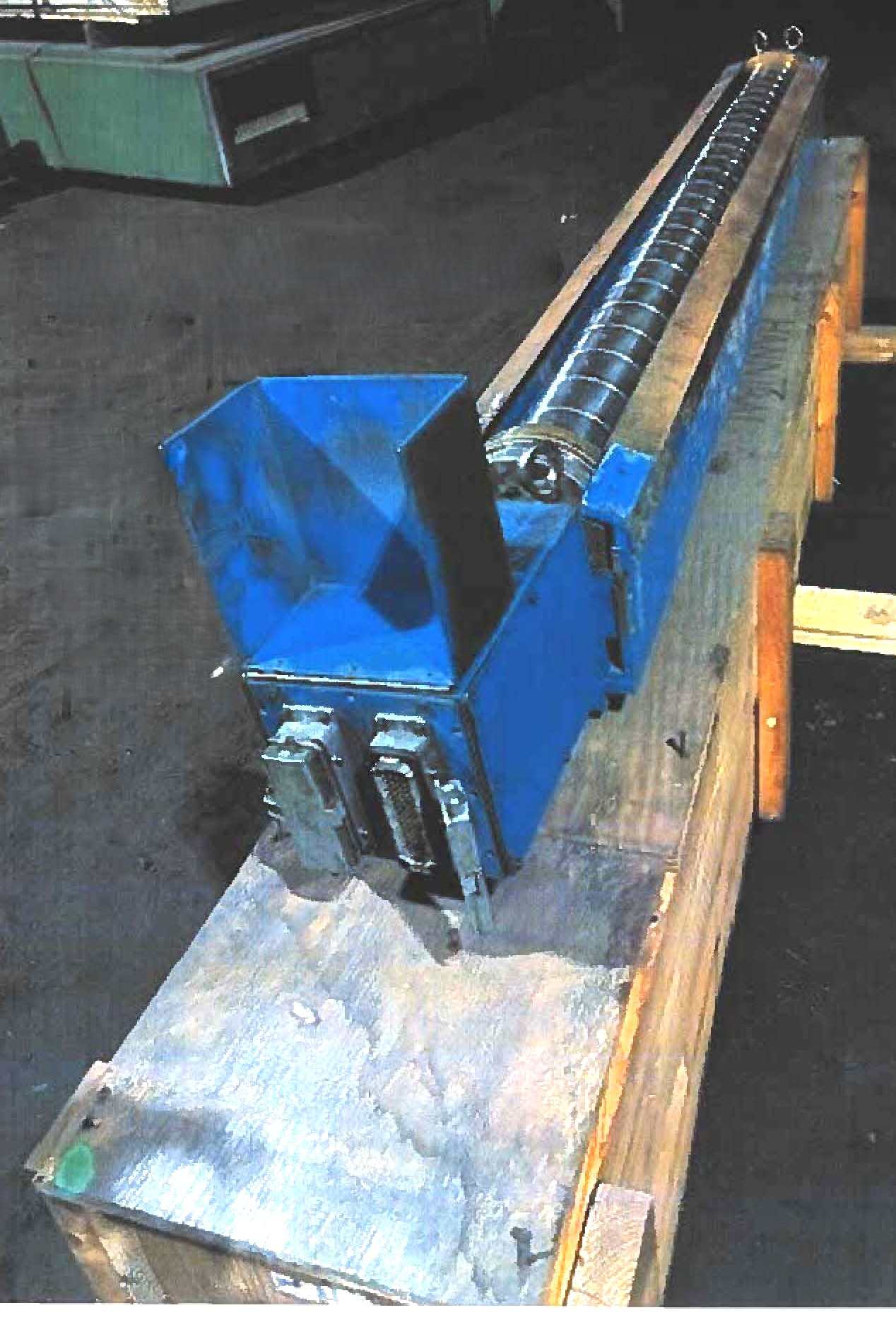

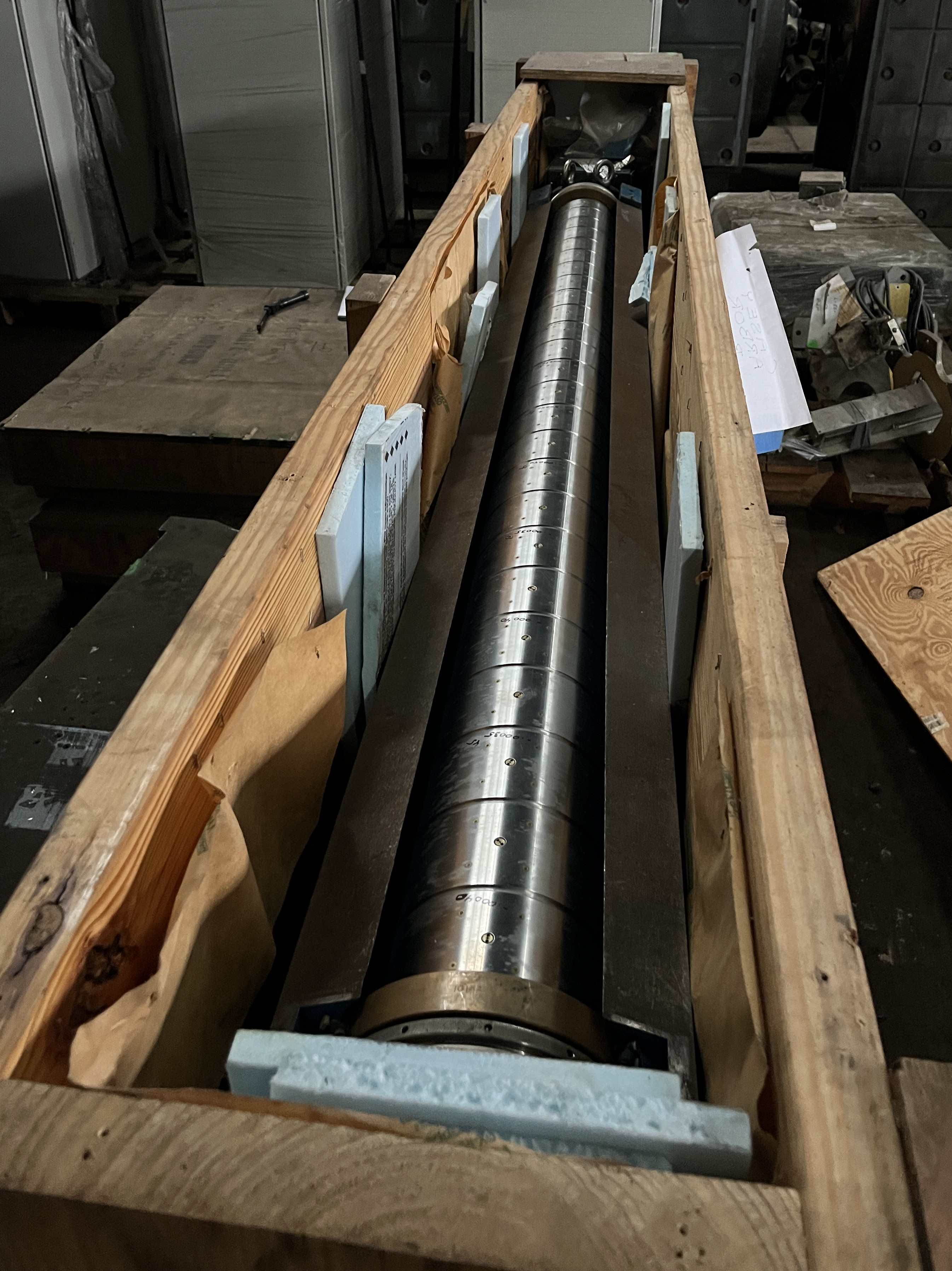

75" (1905 MM) BRONER AIR BEARING SHAPE METER ROLL

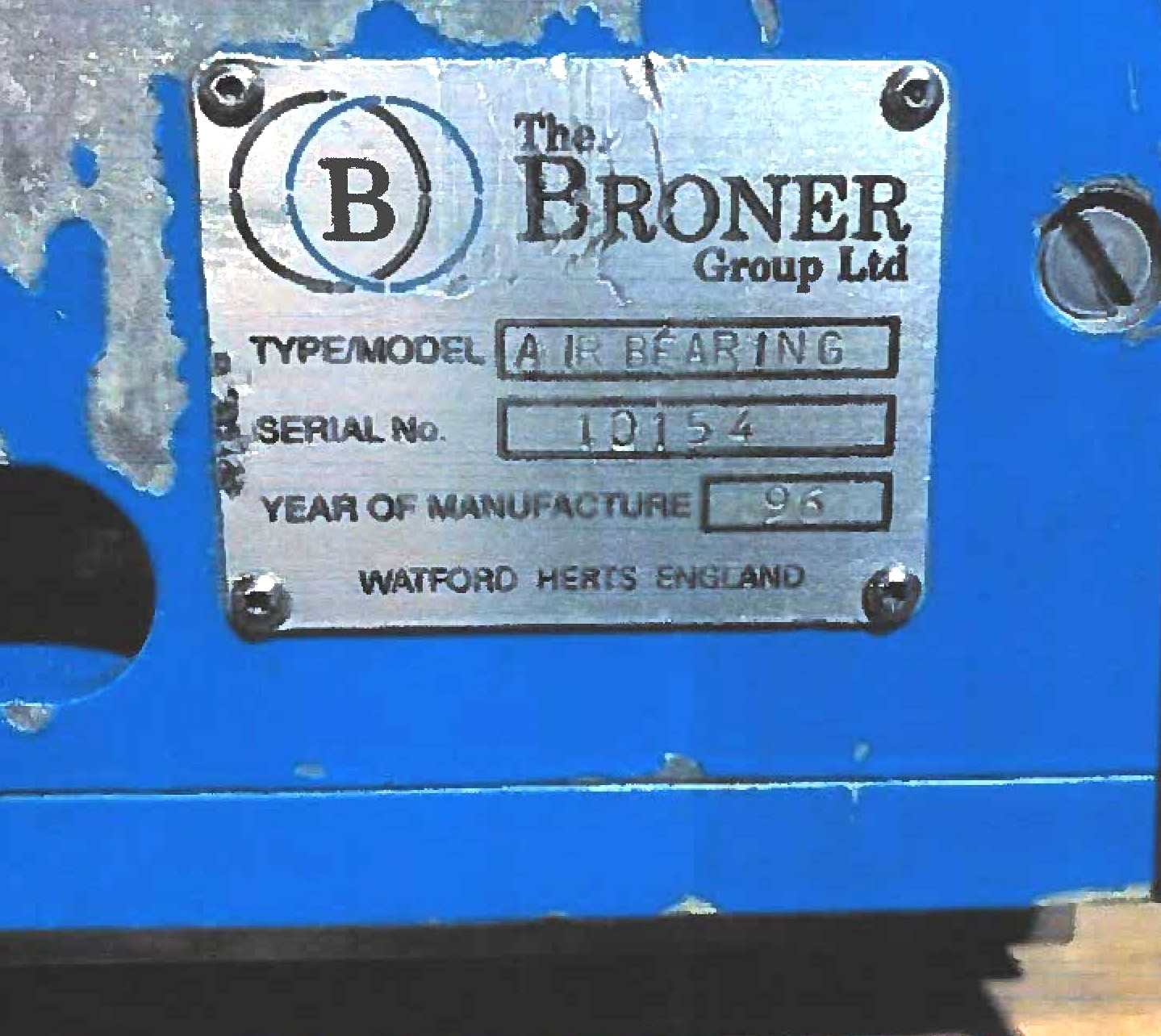

MANUFACTURER: BRONER
AGE: 1997
CONSISTS OF SHAPE METER
25 - 3" (76 MM) WIDE AIR BARING UNIT WITH INDEPENDENT ROTATING ROTORS
WIDTH: 75" (1905 MM)
DIAMETER: 6.93" (176 MM)
OVERALL LENGTH: 100" (2540 MM)
ROCKWELL HARDNESS: 58-60 C
DIMENSIONS: 111" L X 31" W X 25" H (2819 MM L X 787 MM W X 635 MM H)
WEIGHT: 550LBS (249 KG)
TRANSDUCER HOUSING IS COUPLED TO THE SHAPE METER
JUNCTION BOX: 120V AC
CONVERSION BOARD: ANALOG TO DIGITAL
PREVIOUS USE: 2-STAND TANDEM ALUMINUM COLD MILL
AIR STATION
REFRIGERATION DRYER WITH
FILTRATION SYSTEM
OIL VAPOR REMOVAL
AIR CUBICLE
CONDENSATE DISCHARGE VALVE
LIFT MECHANISM: INVENTORY ID#: 109709-016-04
INVENTORY ID#: 109709-016-00
| INVENTORY ID | 10970901600 |
| TITLE | 75" (1905 MM) BRONER AIR BEARING SHAPE METER ROLL |
| MANUFACTURE | BRONER |
| AGE | 1997 |
| TYPE | CONTINUOUS OUTPUT MULTPLE AIR BEARING UNIT; INDEPENDENTLY ROTATING ROTARS; INTEGRAL TRANSDUCER HOUSING |
| WORKING WIDTH | 75" (1900 MM) |
| OVERALL LENGTH | 100.39" (2549 MM) |
| ROLL DIA. | 6.93" (176 MM) |
| QTY ROTORS | 25 |
| ROTOR HARDNESS | 58-60 ROCKWELL C |
| PRESSDUCTOR | DRUCK PDCR 820 (QTY 25) |
| POWER SUPPLY | 120 VAC INPUT / 12 TO 15 VDC OUTPUT |
| DIMENSIONS | 111" LENGTH X 31" WIDTH X 25" HEIGHT (2819 MM LENGTH X 787 MM WIDTH X 635 MM LENGTH) |
| WEIGHT | 550 LBS (249 KG) |
