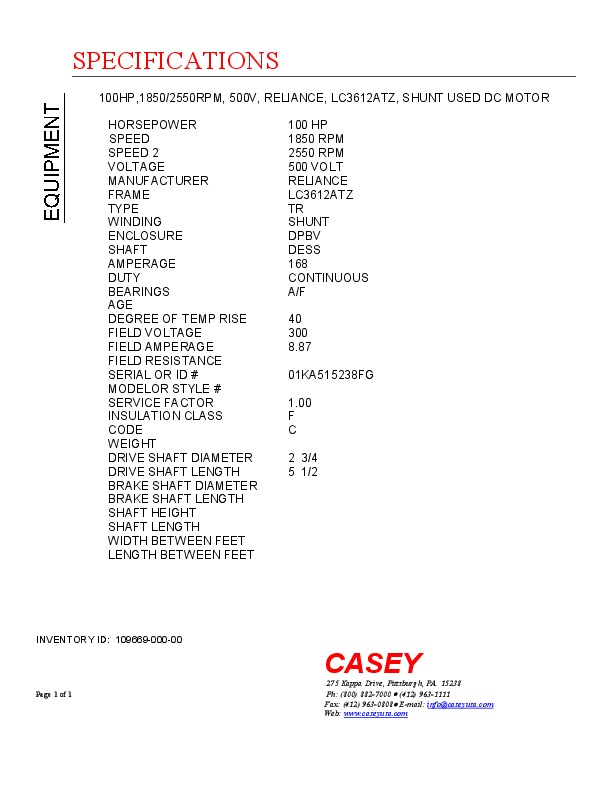

100HP,1850/2550RPM, 500V, RELIANCE, LC3612ATZ, SHUNT USED DC MOTOR
| INVENTORY ID | 10966900000 |
| TITLE | 100HP,1850/2550RPM, 500V, RELIANCE, LC3612ATZ, SHUNT USED DC MOTOR |
| HORSEPOWER | 100 HP |
| SPEED | 1850 RPM |
| SPEED 2 | 2550 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | RELIANCE |
| FRAME | 3612ATZ |
| TYPE | TR |
| WINDING | SHUNT |
| ENCLOSURE | DPBV |
| SHAFT | DESS |
| AMPERAGE | 168 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 |
| FIELD AMPERAGE | 8.87 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | 01KA515238FG |
| SERVICE FACTOR | 1.00 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| DRIVE SHAFT DIMENSION | 2 3/4 |
| DRIVE SHAFT LENGTH | 5 1/2 |
