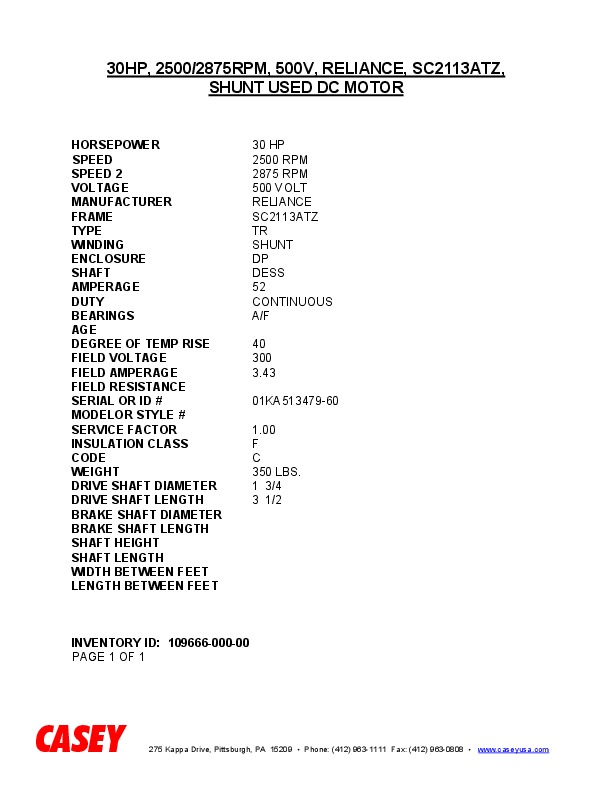

QTY (3) 30HP, 2500/2875RPM, 500V, RELIANCE, SC2113ATZ, SHUNT USED DC MOTOR
| INVENTORY ID | 10966600000 |
| TITLE | QTY (3) 30HP, 2500/2875RPM, 500V, RELIANCE, SC2113ATZ, SHUNT USED DC MOTOR |
| HORSEPOWER | 30 HP |
| SPEED | 2500 RPM |
| SPEED 2 | 2875 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | RELIANCE |
| FRAME | 2113ATZ |
| TYPE | TR |
| WINDING | SHUNT |
| ENCLOSURE | DP |
| SHAFT | DESS |
| AMPERAGE | 52 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 300 |
| FIELD AMPERAGE | 3.43 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | 01KA513479-60 |
| SERVICE FACTOR | 1.00 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | C |
| WEIGHT | 350 LBS. |
| DRIVE SHAFT DIMENSION | 1 3/4 |
| DRIVE SHAFT LENGTH | 3 1/2 |
