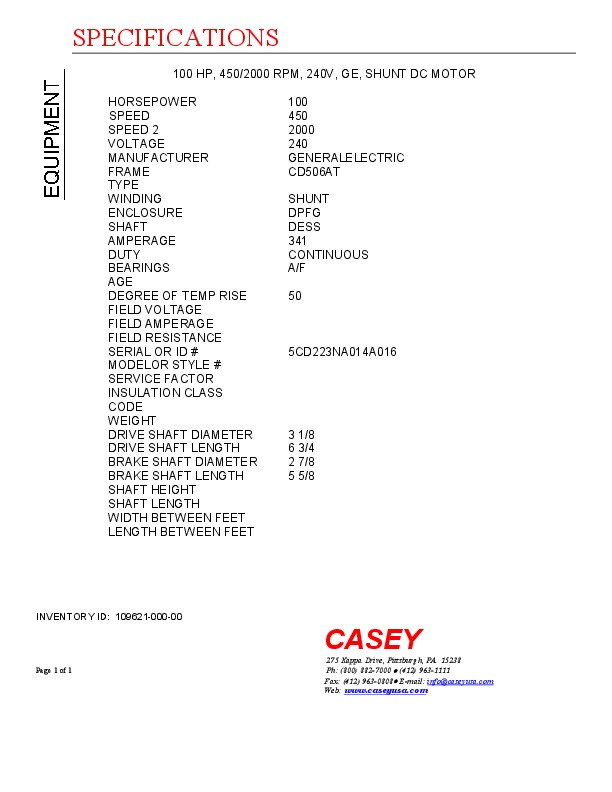

100 HP, 450/2000 RPM, 240V, GENERAL ELECTRIC, CD506AT, SHUNT USED DC MOTOR
 "10962100000 100 HP, 450/2000 RPM, 240V, GENERAL ELECTRIC, CD506AT, SHUNT USED DC MOTOR")
| INVENTORY ID | 10962100000 |
| TITLE | 100 HP, 450/2000 RPM, 240V, GENERAL ELECTRIC, CD506AT, SHUNT USED DC MOTOR |
| HORSEPOWER | 100 HP |
| SPEED | 450 RPM |
| SPEED 2 | 2000 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 506AT |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | DPFG |
| SHAFT | DESS |
| AMPERAGE | 341 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| DEGREE OF TEMPERATURE RISE | 50 |
| SERIAL NUMBER OR ID NUMBER | 5CD223NA014A016 |
| DRIVE SHAFT DIMENSION | 3 1/8 |
| DRIVE SHAFT LENGTH | 6 3/4 |
| BRAKE SHAFT DIAMETER | 2 7/8 |
| BRAKE SHAFT LENGTH | 5 5/8 |
