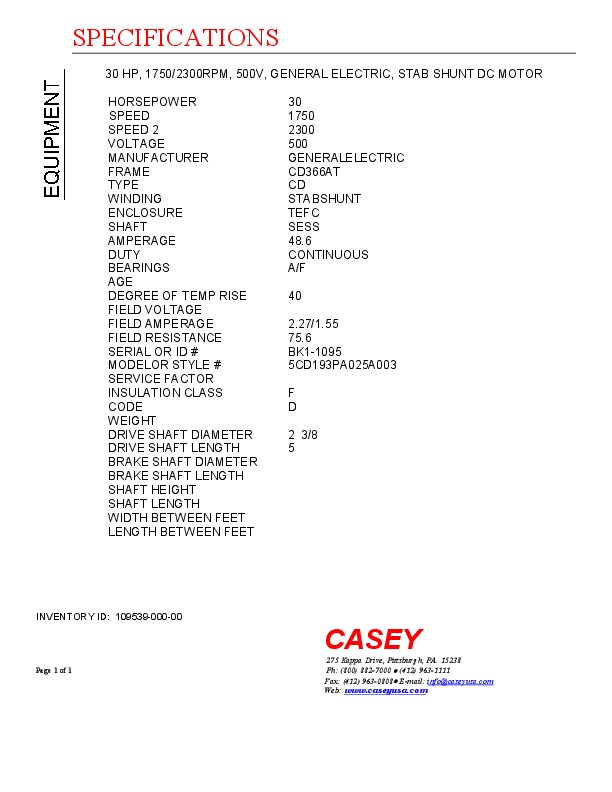

30 HP, 1750/2300RPM, 500V, GENERAL ELECTRIC, CD366AT, STAB SHUNT USED DC MOTOR
| INVENTORY ID | 10953900000 |
| TITLE | 30 HP, 1750/2300RPM, 500V, GENERAL ELECTRIC, CD366AT, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 30 HP |
| SPEED | 1750 RPM |
| SPEED 2 | 2300 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 366AT |
| TYPE | CD |
| WINDING | STABSHUNT |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| AMPERAGE | 48.6 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD AMPERAGE | 2.27/1.55 |
| FIELD RESISTANCE | 75.6 |
| DEGREE OF TEMPERATURE RISE | 40 |
| SERIAL NUMBER OR ID NUMBER | BK1-1095 |
| MODEL NUMBER OR STYLE NUMBER | 5CD193PA025A003 |
| INSULATION CLASS | F |
| POWER SUPPLY CODE | D |
| DRIVE SHAFT DIMENSION | 2 3/8 |
| DRIVE SHAFT LENGTH | 5 |
