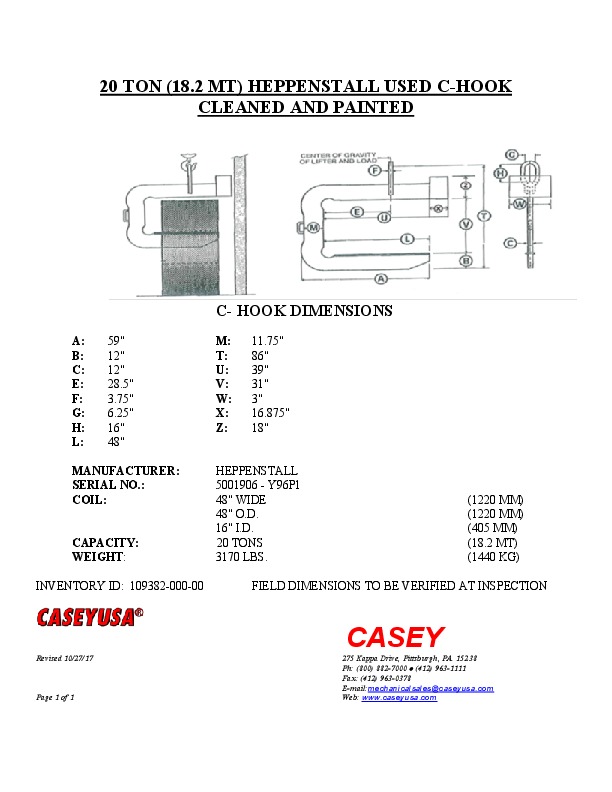

20 TON (18.2 MT) HEPPENSTALL USED C-HOOK CLEANED AND PAINTED $9,600
 "10938200000 20 TON (18.2 MT) HEPPENSTALL USED C-HOOK CLEANED AND PAINTED $9,600")
 "10938200000 20 TON (18.2 MT) HEPPENSTALL USED C-HOOK CLEANED AND PAINTED $9,600")
 "10938200000 20 TON (18.2 MT) HEPPENSTALL USED C-HOOK CLEANED AND PAINTED $9,600")
| INVENTORY ID | 10938200000 |
| TITLE | 20 TON (18.2 MT) HEPPENSTALL USED C-HOOK CLEANED AND PAINTED $9,600 |
| MANUFACTURER OF EQUIPMENT | HEPPENSTALL |
| YEAR OF MANUFACTURE | UNKNOWN |
| SERIAL NO | 5001906 - Y96P1 |
| CAPACITY | 20 |
| HOOK ARRANGEMENT | CRANE HOOK-UP |
| COIL WIDTH | 48 |
| COIL OD | 48 |
| COIL ID | 16 |
| COIL CLEARANCE HEIGHT | 31 |
| COIL SUPPORT ARM LENGTH | 48 |
| COIL SUPPORT ARM THICKNESS | 12 |
| WEIGHT | 3170 |

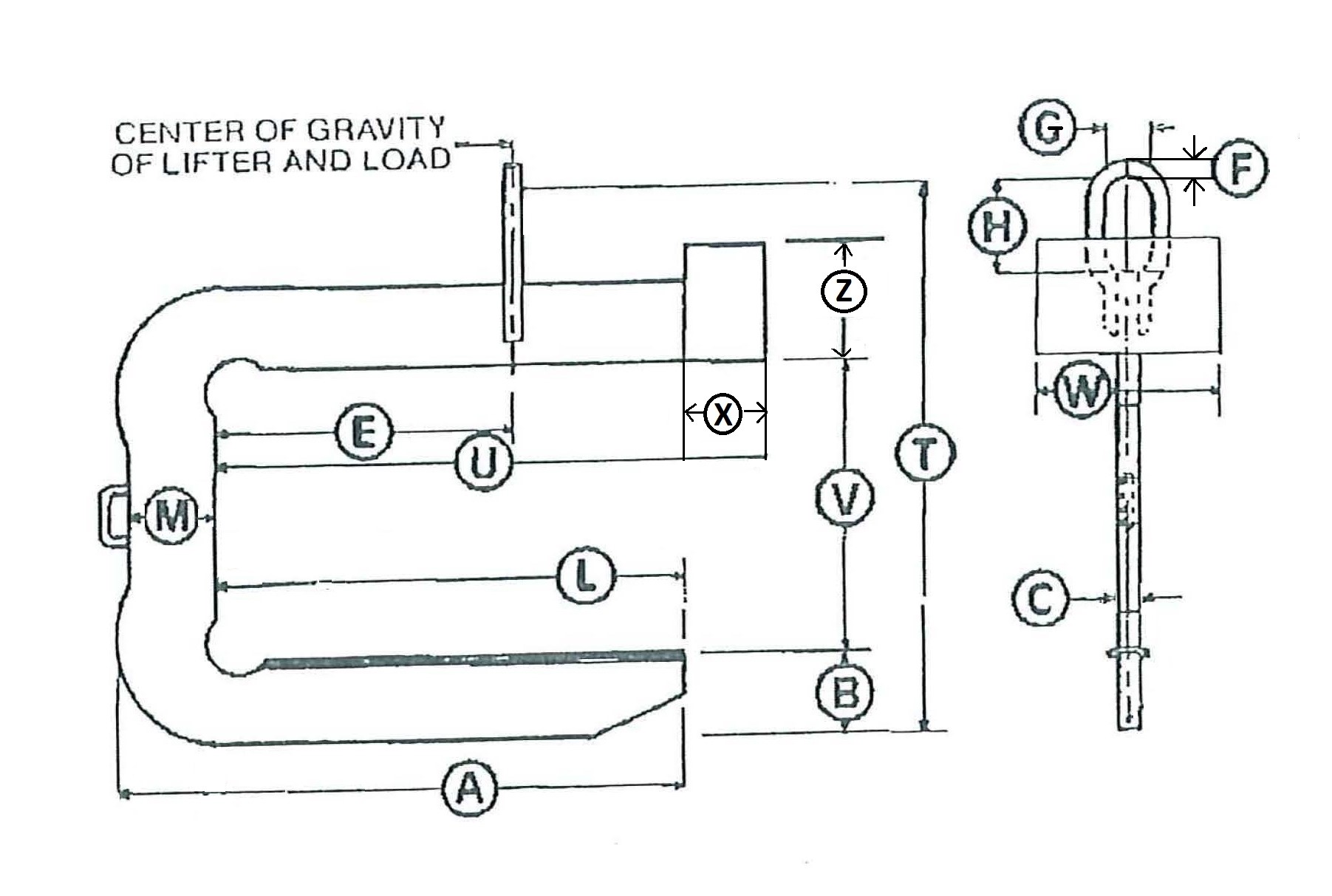

| DIMENSION A | 59 |
| DIMENSION B | 12 |
| DIMENSION C | 12 |
| DIMENSION E | 28.5 |
| DIMENSION F | 3.75 |
| DIMENSION G | 6.25 |
| DIMENSION H | 16 |
| DIMENSION L | 48 |
| DIMENSION M | 11.75 |
| DIMENSION T | 86 |
| DIMENSION U | 39 |
| DIMENSION V | 31 |
| DIMENSION W | 3 |
| DIMENSION X | 16.875 |
| DIMENSION Z | 18 |
