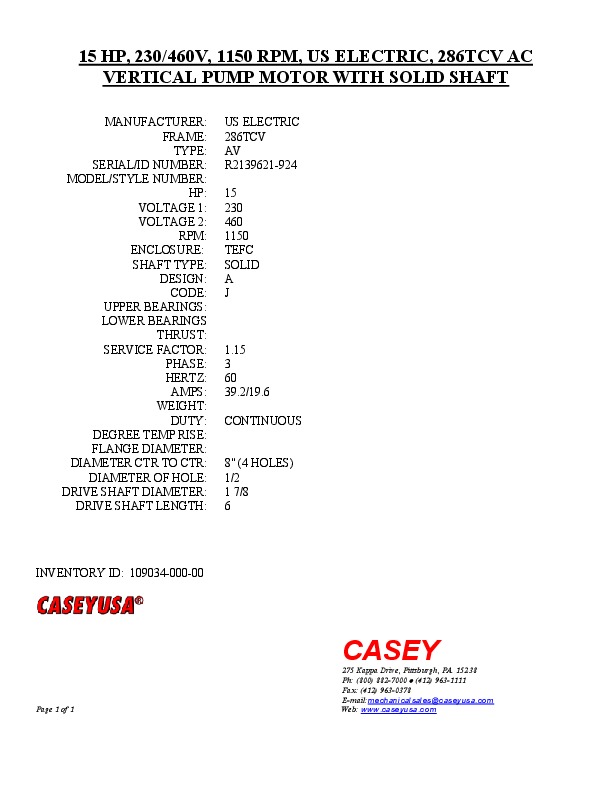

15 HP, 1150 RPM, 230/460V, US ELECTRIC, 286TCV AC VERTICAL PUMP MOTOR WITH SOLID SHAFT
| INVENTORY ID | 10903400000 |
| TITLE | 15 HP, 1150 RPM, 230/460V, US ELECTRIC, 286TCV AC VERTICAL PUMP MOTOR WITH SOLID SHAFT |
| HP | 15 |
| RPM | 1150 |
| VOLTAGE 2 | 460 |
| VOLTAGE 1 | 230 |
| MANUFACTURER | USELECTRIC |
| FRAME | 286TCV |
| ENCLOSURE | TEFC |
| SHAFT TYPE | SOLID |
| DESIGN | A |
| CODE | J |
| TYPE | AV |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| HERTZ | 60 |
| AMPS | 39.2/19.6 |
| SERIAL/ID NUMBER | R2139621-924 |
| WEIGHT | 425 |
| DUTY | CONTINUOUS |
| DIAMETER CTR TO CTR | 8" (4 HOLES) |
| DIAMETER OF HOLE | 1/2 |
| DRIVE SHAFT DIAMETER | 1 7/8 |
| DRIVE SHAFT LENGTH | 6 |
