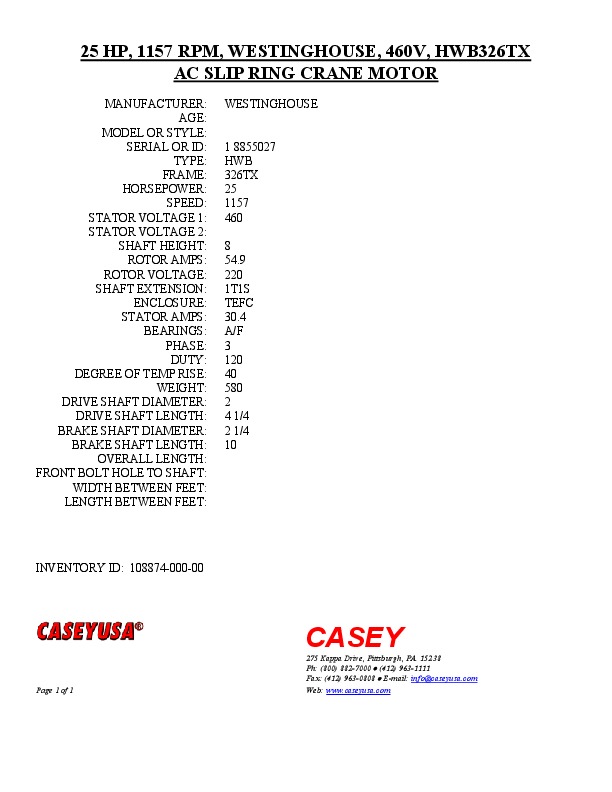

25 HP, 1157 RPM, WESTINGHOUSE, 460V, HWB326TX AC SLIP RING CRANE MOTOR
| INVENTORY ID | 10887400000 |
| TITLE | 25 HP, 1157 RPM, WESTINGHOUSE, 460V, HWB326TX AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 25 |
| SPEED | 1157 |
| STATOR VOLTAGE 1 | 460 |
| MANUFACTURER | WESTINGHOUSE |
| TYPE | HWB |
| FRAME | 326TX |
| SHAFT HEIGHT | 8 |
| ROTOR AMPS | 54.9 |
| ROTOR VOLTS | 220 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TEFC |
| STATOR AMPS | 30.4 |
| BEARINGS | A/F |
| SERIAL NUMBER OR ID NUMBER | 1 8855027 |
| PHASE | 3 |
| DUTY (MINUTES) | 120 |
| DEGREE OF TEMPERATURE RISE | 40 |
| WEIGHT | 580 |
| DRIVE SHAFT DIAMETER | 2 |
| DRIVE SHAFT LENGTH | 4 1/4 |
| BRAKE SHAFT DIAMETER | 2 1/4 |
| BRAKE SHAFT LENGTH | 10 |
