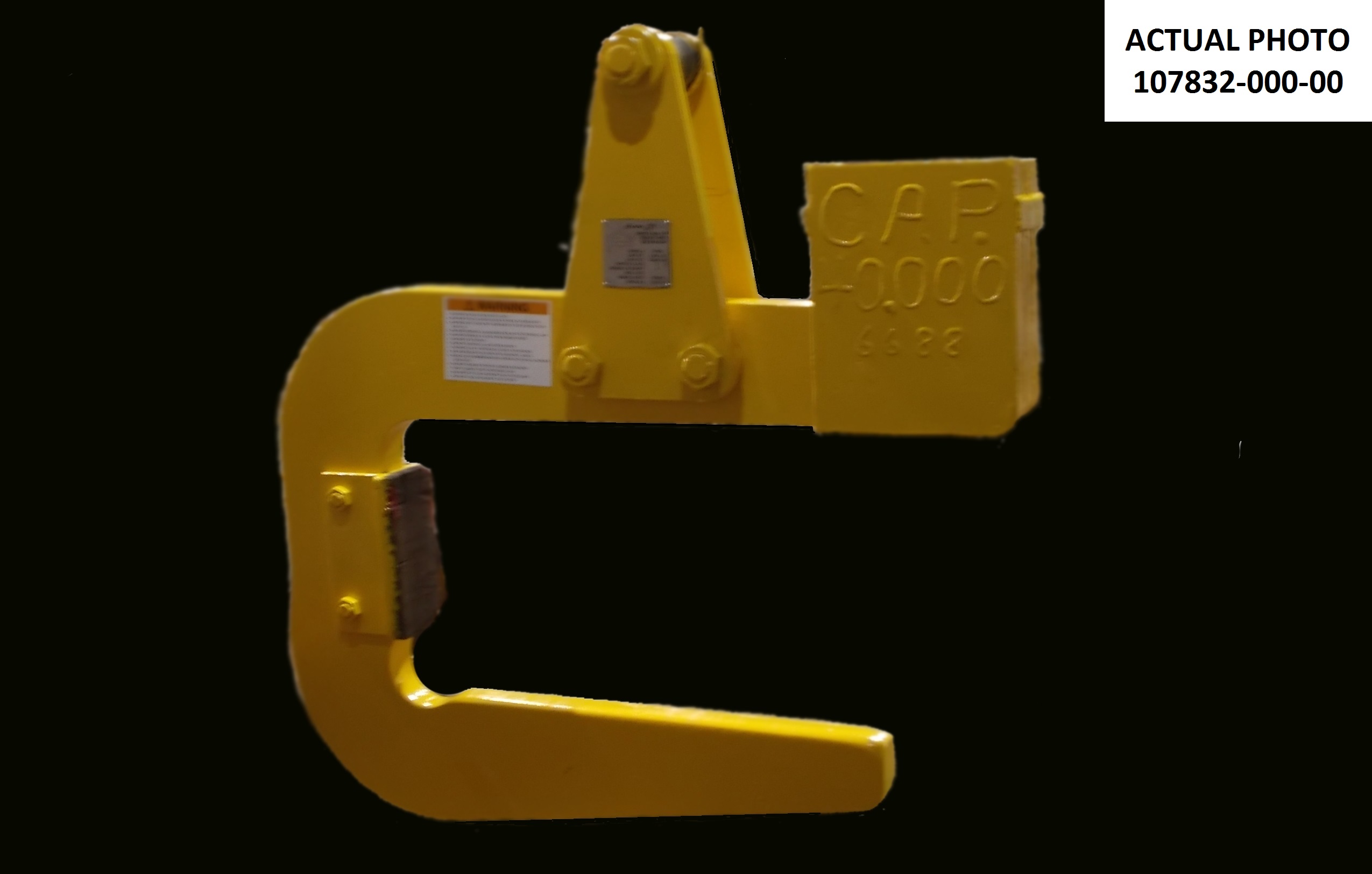

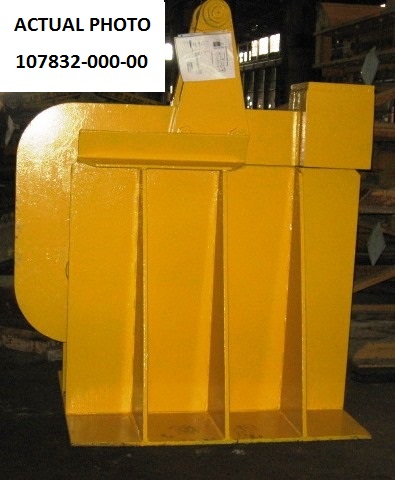

20 TON (18.2 MT) HUNTER USED C-HOOK WITH STAND CERTIFIED, CLEANED & PAINTED $15,600
 "10783200000 20 TON (18.2 MT) HUNTER USED C-HOOK WITH STAND CERTIFIED, CLEANED & PAINTED $15,600")
 "10783200000 20 TON (18.2 MT) HUNTER USED C-HOOK WITH STAND CERTIFIED, CLEANED & PAINTED $15,600")
 "10783200000 20 TON (18.2 MT) HUNTER USED C-HOOK WITH STAND CERTIFIED, CLEANED & PAINTED $15,600")

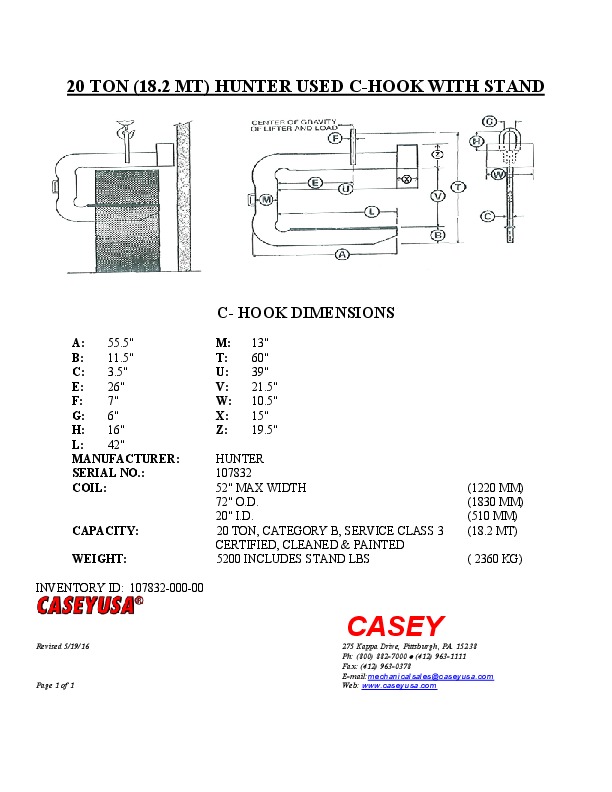

| INVENTORY ID | 10783200000 |
| TITLE | 20 TON (18.2 MT) HUNTER USED C-HOOK WITH STAND CERTIFIED, CLEANED & PAINTED $15,600 |
| MANUFACTURER OF EQUIPMENT | HUNTER |
| SERIAL NO | 107832 |
| CAPACITY | 20 |
| HOOK ARRANGEMENT | CRANE HOOK-UP |
| COIL WIDTH | 48 |
| COIL OD | 72 |
| COIL ID | 20 |
| COIL CLEARANCE HEIGHT | 21.5 |
| COIL SUPPORT ARM LENGTH | 42 |
| COIL SUPPORT ARM THICKNESS | 3.5 |
| COIL SUPPORT ARM HORIZONTAL THICKNESS | 2800 |
| WEIGHT | 5200 INCLUDES STAND (C-Hook - 2,800 LBS; STAND 2400 LBS) |

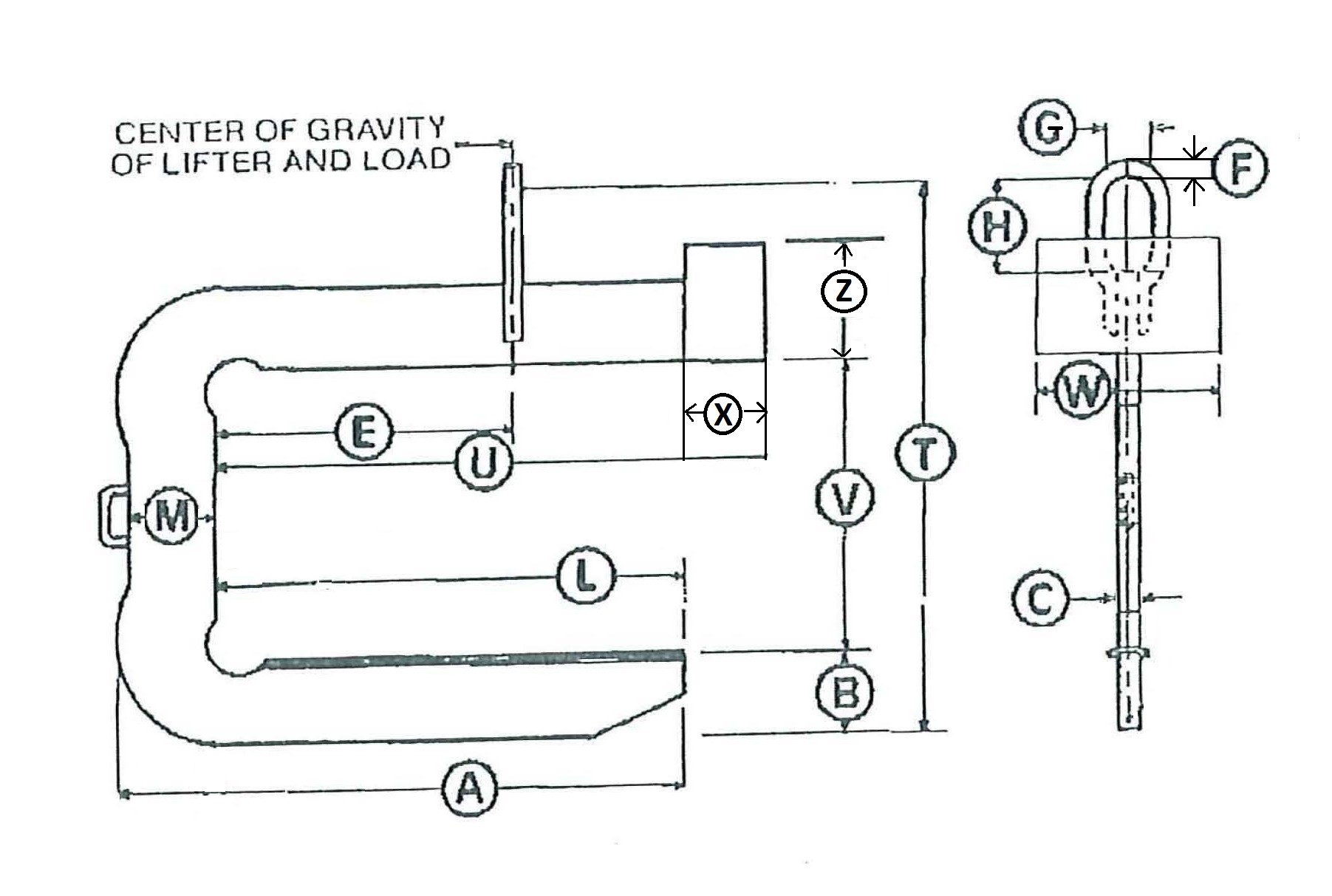

| DIMENSION A | 55.5 |
| DIMENSION B | 11.5 |
| DIMENSION C | 3.5 |
| DIMENSION E | 26 |
| DIMENSION F | N/A FABRICATED FRAME |
| DIMENSION G | 6 |
| DIMENSION H | 16 |
| DIMENSION L | 42 |
| DIMENSION M | 13 |
| DIMENSION S | 0 |
| DIMENSION T | 60 |
| DIMENSION U | 39 |
| DIMENSION V | 21.5 |
| DIMENSION W | 10.5 |
| DIMENSION X | 15 |
| DIMENSION Z | 19.5 |
