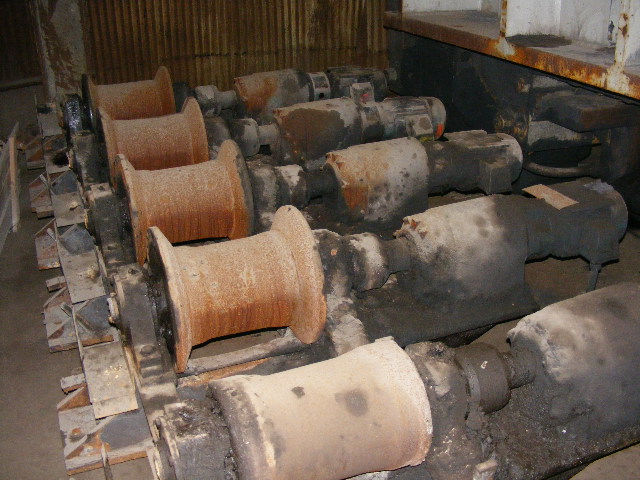

POMINI 13' OF SOLID INDIVIDUALLY DRIVEN ROLLS WITH SHOULDERS, 12" (305 MM) DIA X 13" (330 MM) FACE, 6 ROLLS ON 28" CENTERS

MANUFACTURER: POMINI

ROLLS: 12" DIAMETER X 13" FACE

6 ROLLS ON 12" DIA X 13" FACE

13'

SOLID WITH SHOULDER

INDIVIDUALLY DRIVEN

TABLE SPEED: 20 FPM

PINCH ROLL FEED TABLE

AC RELIANCE MOTOR 1750 GPM DRIVE REDUCER

ROLLER BEARING

SELF CENTERING

WEIGHT: 9,000 LBS

DIMENSIONS: 86" W X 33" H X 156"L

INVENTORY#: 107749-006-00

INVENTORY ID	10774900600
TITLE	POMINI 13' OF SOLID INDIVIDUALLY DRIVEN ROLLS WITH SHOULDERS, 12" (305 MM) DIA X 13" (330 MM) FACE, 6 ROLLS ON 28" CENTERS
TABLE WIDTH	13
ROLL FACE	13
ROLL DIAMETER	12
LENGTH	13
DRIVE ARRANGEMENT	INDIVIDUALLY DRIVEN ROLLS
MANUFACTURER OF EQUIPMENT	POMINI
NUMBER OF ROLLS	6
ROLL SPACING	28
ROLL FABRICATION (SOLID, HOLLOW)	SOLID WITH EDGE SHOULDERS
ROLL BEARING TYPE (ROLLER, SLEEVE)	ROLLER BEARING
GEARBOX RATIO	57.7
NUMBER OF MOTORS	5
MOTOR RPM	1750
MOTOR MANUFACTURER	RELIANCE
TABLE SPEED	70
PREVIOUS USE	PINCH ROLL FEED TABLE
OVERALL LENGTH	156
OVERALL WIDTH	86
OVERALL HEIGHT	33
TOTAL WEIGHT	9000
FEATURE 1	SELF CENTERING HOUR GLASS SHAPE ROLLERS
