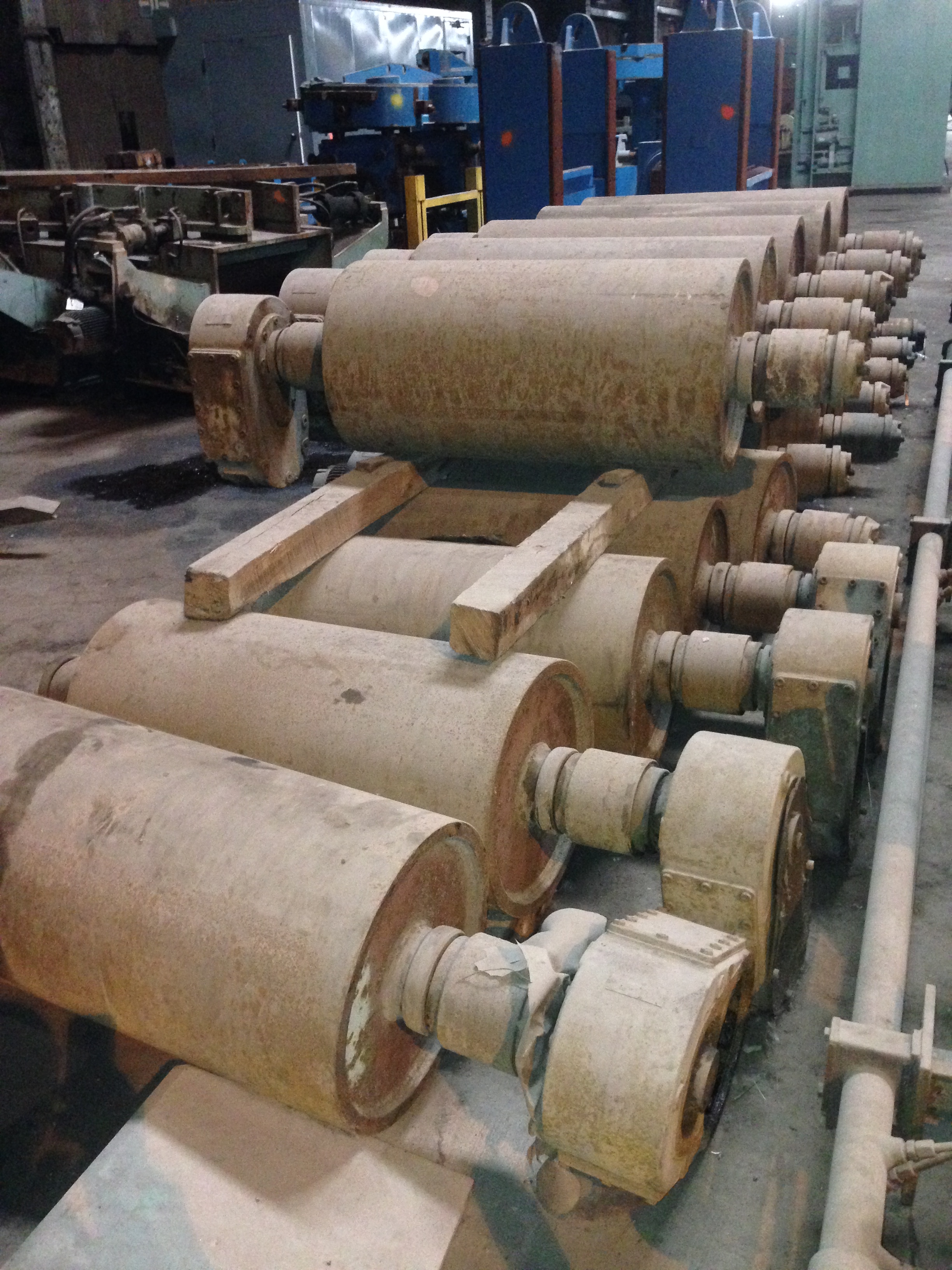

38.5 FEET OF 36" (914 MM) WIDE X 18" (457 MM) DIA., 8 INDIVDUALLY DRIVEN HOLLOW ROLLS, ECOLAIRE TABLE

38.5 FEET OF 36" (914 MM) WIDE X 18" (457 MM) DIA., INDIVIDUALLY DRIVEN HOLLOW ROLLS , ECOLAIRE TABLE

MANUFACTURER: ECOLAIRE

AGE: 1982

GENERAL SPECIFICATIONS:

TABLE: 36" WIDTH X 38.5' LENGTH (914 MM X 11.73 MM)

ROLL: 18" DIA X 36" FACE (457 MM X 914 MM)

ROLLS: 8

DRIVE ARRANGEMENT: INDIVIDUALLY DRIVEN

ROLL SPACING: 66" (1676 MM)

ROLL FABRICATION: HOLLOW

ROLL BEARING TYPE: ROLLER

PASS LINE HEIGHT: 31.5" (800 MM)

DRIVE: 8 BAUER GEAR BOXES CONNECT TO ROLLS. MOTORS NOT AVAILABLE.

DIRECTION OF TRAVEL: LEFT TO RIGHT

PREVIOUS USE: ENTRY TO GAG PRESS

DIMENSIONS: 39.67' LENGTH X 45" WIDTH X 75" DEPTH X 39" HEIGHT

(12 M LENGTH X 1143 MM WIDTH X 1905 MM DEPTH X 991 MM HEIGHT)

INVENTORY #: 107653-001-00

INVENTORY ID	10765300100
TITLE	38.5 FEET OF 36" (914 MM) WIDE X 18" (457 MM) DIA., 8 INDIVDUALLY DRIVEN HOLLOW ROLLS, ECOLAIRE TABLE
TABLE WIDTH	36
ROLL FACE	36
ROLL DIAMETER	18
LENGTH	38.5
DRIVE ARRANGEMENT	INDIVIDUALLY DRIVEN
MANUFACTURER OF EQUIPMENT	ECOLAIRE
YEAR OF MANUFACTURE	1982
NUMBER OF ROLLS	8
ROLL SPACING	66
ROLL FABRICATION (SOLID, HOLLOW)	HOLLOW
ROLL BEARING TYPE (ROLLER, SLEEVE)	ROLLER
NUMBER OF MOTORS	8
MOTOR MANUFACTURER	BAUER GEAR
MOTOR AVAILABLE	AVAILABLE
DIRECTION OF TRAVEL (VIEWED FROM OPEATORS SIDE)	LEFT TO RIGHT
PREVIOUS USE	ENTRY TO GAG PRESS
OVERALL LENGTH	39.67
OVERALL WIDTH	45
OVERALL DEPTH	75
OVERALL HEIGHT	39
TOTAL WEIGHT	35,000
