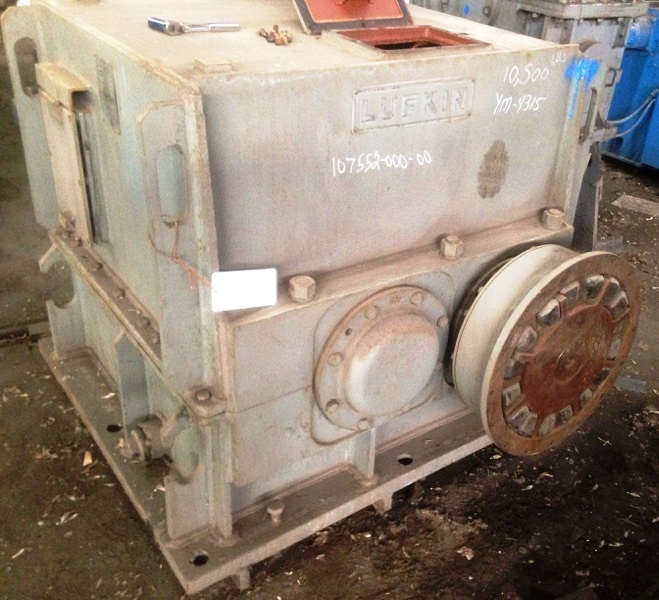

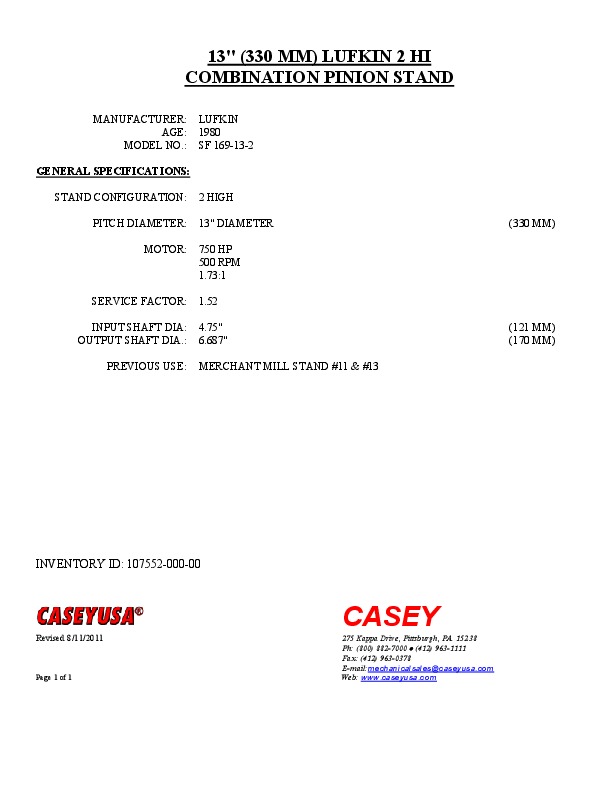

13" (330 MM) LUFKIN 2 HI COMBINATION PINION STAND
 "10755200000 13\" (330 MM) LUFKIN 2 HI COMBINATION PINION STAND")
 "10755200000 13\" (330 MM) LUFKIN 2 HI COMBINATION PINION STAND")
 "10755200000 13\" (330 MM) LUFKIN 2 HI COMBINATION PINION STAND")
| INVENTORY ID | 10755200000 |
| TITLE | 13" (330 MM) LUFKIN 2 HI COMBINATION PINION STAND |
| PITCH DIAMETER | 13" |
| MANUFACTURER OF EQUIPMENT | LUFKIN |
| YEAR OF MANUFACTURE | 1980 |
| MODEL NUMBER | SF 169-13-2 |
| STAND CONFIGURATION (2HI, 3HI) | 2 |
| RATED HP | 750 |
| RATED RPM | 500 |
| RATIO TO 1 | 1.73 |
| SVC FACTOR (1.0, 1.5 ETC) | 1.52 |
| INPUT SHAFT DIA | 4.75 |
| OUTPUT SHAFT DIA | 6.687 |
| GEARING P. D. | 13 |
| WEIGHT | 10500 |
| HOUSING TYPE | FAB |
| PREVIOUS USE | MERCHANT MILL STAND #11 & #13 |
