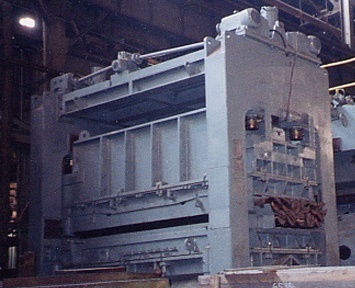

156" (3962 MM) x 1" HEAD WRIGHTSON PLATE LEVELER

156" (3962 MM) WIDE HEAD WRIGHTSON PLATE LEVELER

MANUFACTURER: HEAD WRIGHTSON COMPANY

AGE: 1976

GENERAL SPECIFICATIONS:

CAPACITY: 142" WIDE PLATE (3607 MM)

197" TO 1" THICK (5 MM TO 25 MM)

MATERIAL GRADE: MILD STEEL AND LOW ALLOY STEEL

MAX TENSILE STRENGTH 80 KG/MM (COLD CONDITION)

TEMPERATURE: 600 TO 700 DEGREES C (110 DEGREES F TO 1830 DEGREES F)

ROLL ARRANGEMENT: 6 OVER 5

WORK ROLLS: 9" DIA. X 156" FACE (229 MM X 3962 MM)

BACK-UP ROLLS: (4) TOP AND (5) BOTTOM, CENTER MOUNTED

9.25" DIA. X 63.25" FACE (235 MM X 1118 MM)

2 FLIGHTS ACROSS

TYPE OF COOLING: WATER COOLED

PASS LINE HEIGHT: 42" (1068 MM)

MAXIMUM OPENING: 7.5" (191 MM)

DRIVE: 365 HP MOTOR, 1000 RPM, 440 VOLTS DC

SCREWDOWN: (2) 12 HP DRIVES - TOP DRIVEN THRU 9" MOVEMENT WORM REDUCERS

SPEED: 118 FON AT .75" (36 M/MIN) 43 FPM AT 1.0" (13 M/MIN)

DIMENSIONS: 10' W X 39' L X 19'-.5" (3.05 M X 11.6M X 5.9M)

WEIGHT: 550,000 LBS - Estimated (249476 KG)

FEATURES: UPPER SPARE ROLL CARTRIDGE ASSEMBLY

LOWER SPARE ROLL CARTRIDGE ASSEMBLY

DOUBLE HELICAL GEAR BOX

ROLL CHANGING CAR

(22) SPARE WORK ROLLS

(18) SPARE BACKUP ROLLS

INVENTORY #: 107444-000-00

INVENTORY ID	10744400000
TITLE	156" (3962 MM) x 1" HEAD WRIGHTSON PLATE LEVELER
WIDTH	156 INCH
GAUGE MAX	1 INCH
MANUFACTURER OF EQUIPMENT	HEAD WRIGHTSON
YEAR OF MANUFACTURE	1976
MATERIAL GRADE	MILD STEEL AND LOW ALLOY STEEL
PROD CAPAC WIDE MAX	142
GAUGE MIN	.197
ROLL ARRANGEMENT (X OVER Y)	6 OVER 5
MAX OPENING	7.5
WR DIA	9
WR FACE	156
SCREWDOWN TYPE	MOTORIZED WORM REDUCERS
NUMBER SCREWDOWN MOTORS	2
SD HORSEPOWER	12
BU ROLL DIA	9.25
BU ROLL FACE	63.25
PASS LINE HEIGHT	42
LINE SPEED MIN	43
LINE SPEED MAX	118
MOTOR HP	265
MOTOR RPM	1000
MOTOR VOLTS	440
