102" WIDE X 0.8" (2591 MM X 20.32 MM) GAUGE CARBON STEEL SCHLOEMANN PLATE SIDE TRIMMER

102" WIDE X 0.8" GAUGE CARBON STEEL SCHLOEMANN PLATE SIDE TRIMMER

MANUFACTURER: SCHLOEMANN

AGE: 1966

GENERAL SPECIFICATIONS:

CAPACITY: 24" TO 102" (610 MM TO 2591 MM) WIDE

0.15" TO 0.5" (4 MM TO 12.7 MM)

0.8" (20.32 MM) GAUGE CARBON STEEL

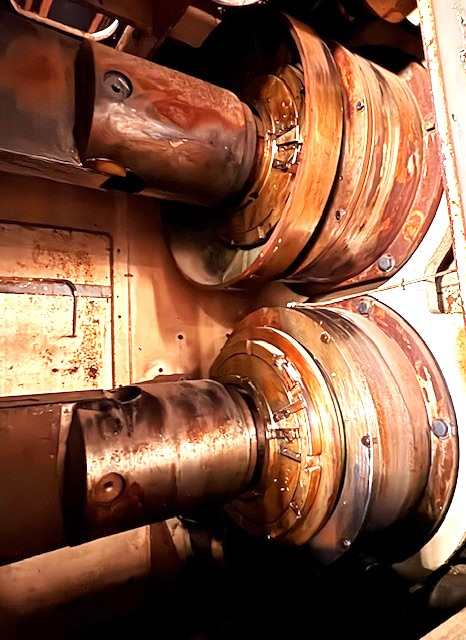

KNIFE DIAMETER: 31.5" (800 MM)

DRIVES: 2 X 92.5 HP

515 / 865 RPM

FRAME 612 ASEA DC DRIVES

SPEED: 78-132 FPM (23 TO 40 MPM)

PREVIOUS USE: PLATE SIDE TRIM LINE

PASS LINE: 31.5" *(800 MM)

TRAVEL: RIGHT TO LEFT

TRAVERSING SCREW ADJUSTMENT: 30 KW, 550/650 RPM

SCRAP CHOPPER: 100 HP, 460/775 RPM

FRAME 614 ASEA DC MOTOR

6.4:1 RATIO

70 TO 120 KNIFE RPM

INVENTORY#: 107406-000-00

INVENTORY ID	10740600000
TITLE	102" WIDE X 0.8" (2591 MM X 20.32 MM) GAUGE CARBON STEEL SCHLOEMANN PLATE SIDE TRIMMER
MANUFACTURER OF EQUIPMENT	SCHLOEMANN
YEAR OF MANUFACTURE	1966
MATERIAL	STAINLESS AND CARBON STEEL
WIDTH	102
PRODUCT WIDTH MAX	102
PRODUCT WIDTH MIN	24
GAUGE MAX	.8
GAUGE MIN	.15
KNIFE STYLE (ROTARY/STRAIGHT)	ROTARY
KNIFE DIAMETER	31.5
MATERIAL SPEED	132
PASS LINE	31.5
KNIFE MOTOR HORSEPOWER	92.5
KNIFE MOTOR RPM	865
KNIFE MOTOR (AC OR DC)	DC
KNIFE MOTOR MANUFACTURER	ASEA
KNIFE ADJUSTMENT MOTOR HORSEPOWER	40
KNIFE ADJUSTMENT MOTOR RPM	550/650
KNIFE ADJUSTMENT MOTOR VOLTS (AC OR DC)	DC
KNIFE ADJUSTMENT MOTOR MANUFACTURER	ASEA
SCRAP CHOPPER (YES / NO)	YES
MATERIAL FLOW (VIEWED FROM OPERATOR'S SIDE)	RIGHT TO LEFT
