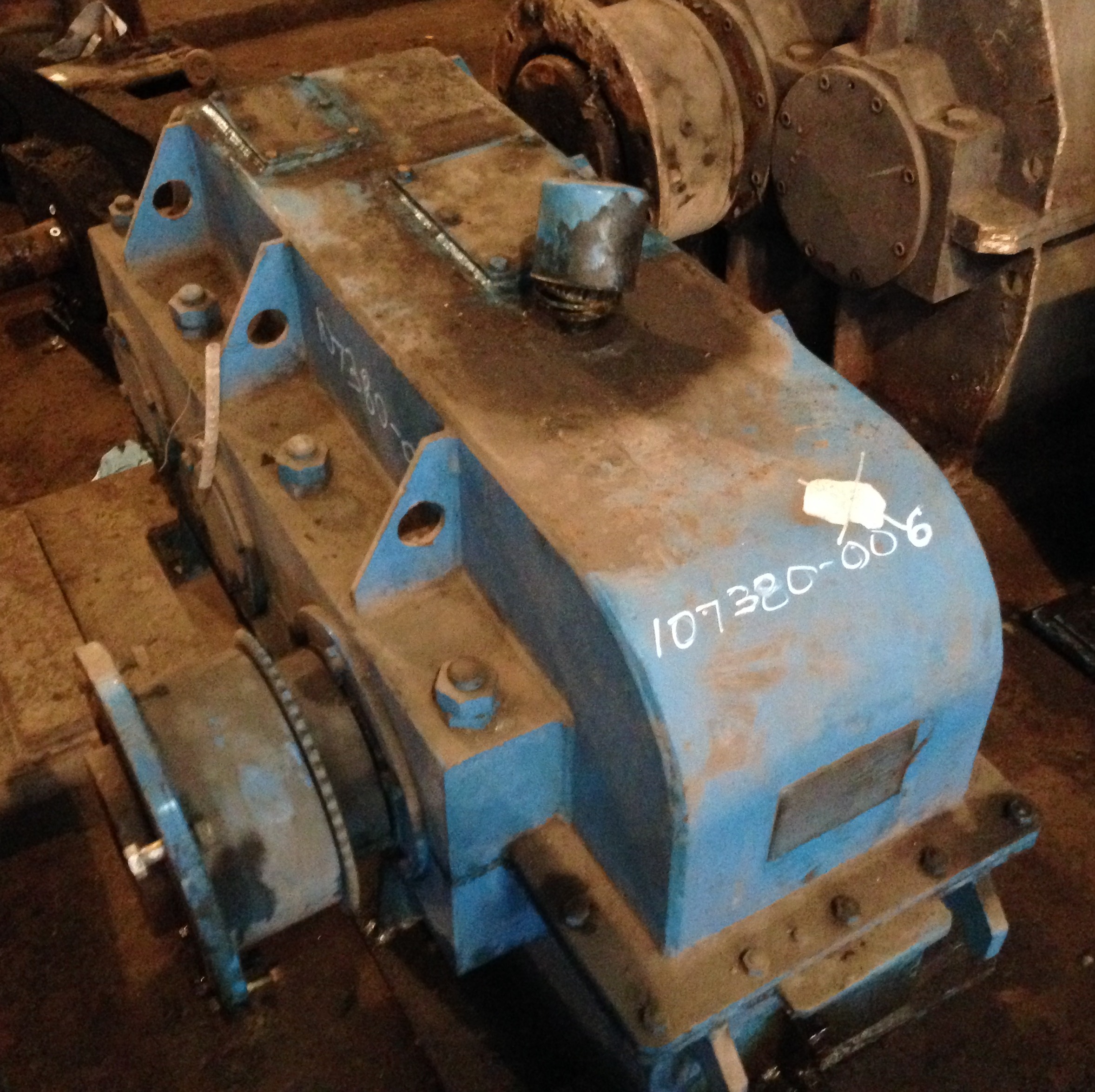

33 HP (25 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "10738000006 33 HP (25 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10738000006 33 HP (25 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10738000006 33 HP (25 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10738000006 33 HP (25 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10738000006 33 HP (25 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 10738000006 |
| TITLE | 33 HP (25 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 33 |
| RPM INPUT | 1130/905 |
| RATIO | 15:1 RATIO |
| RPM OUTPUT | 75.3/60.3 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | MITSUBISHI |
| YEARS WHEN UPGRADES PERFORMED | Nov-94 |
| DESCRIPTION OF UPGRADES | C&P |

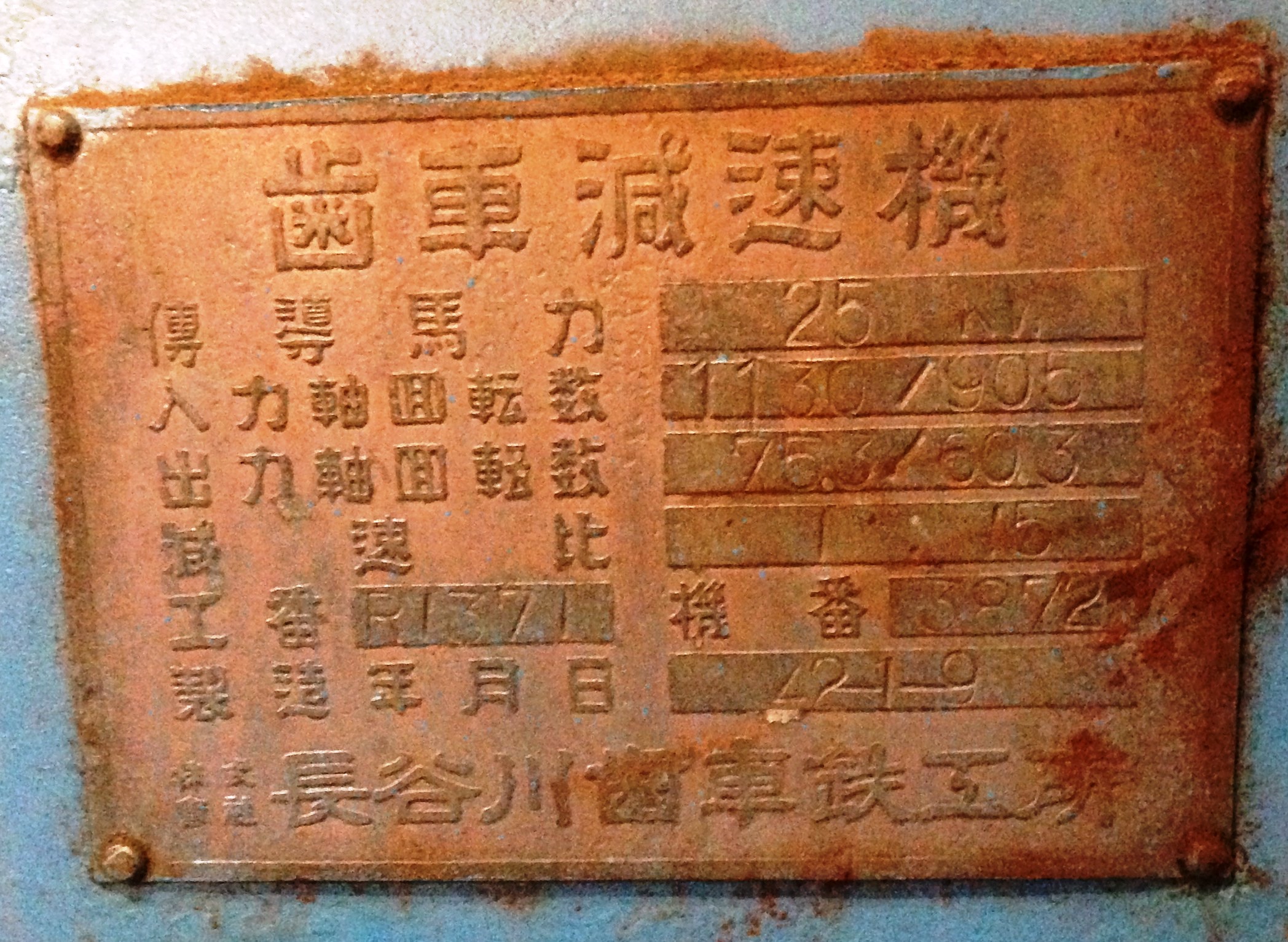

| MODEL NUMBER | R1371 |
| SERIAL NUMBER | 3872 |
| INPUT SHAFT DIA | 2.125 |
| OUTPUT SHAFT DIA | 3.875 |
| REDUCTION | DOUBLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |
| PREVIOUS USE | BRIDLE ROLL DRIVE |

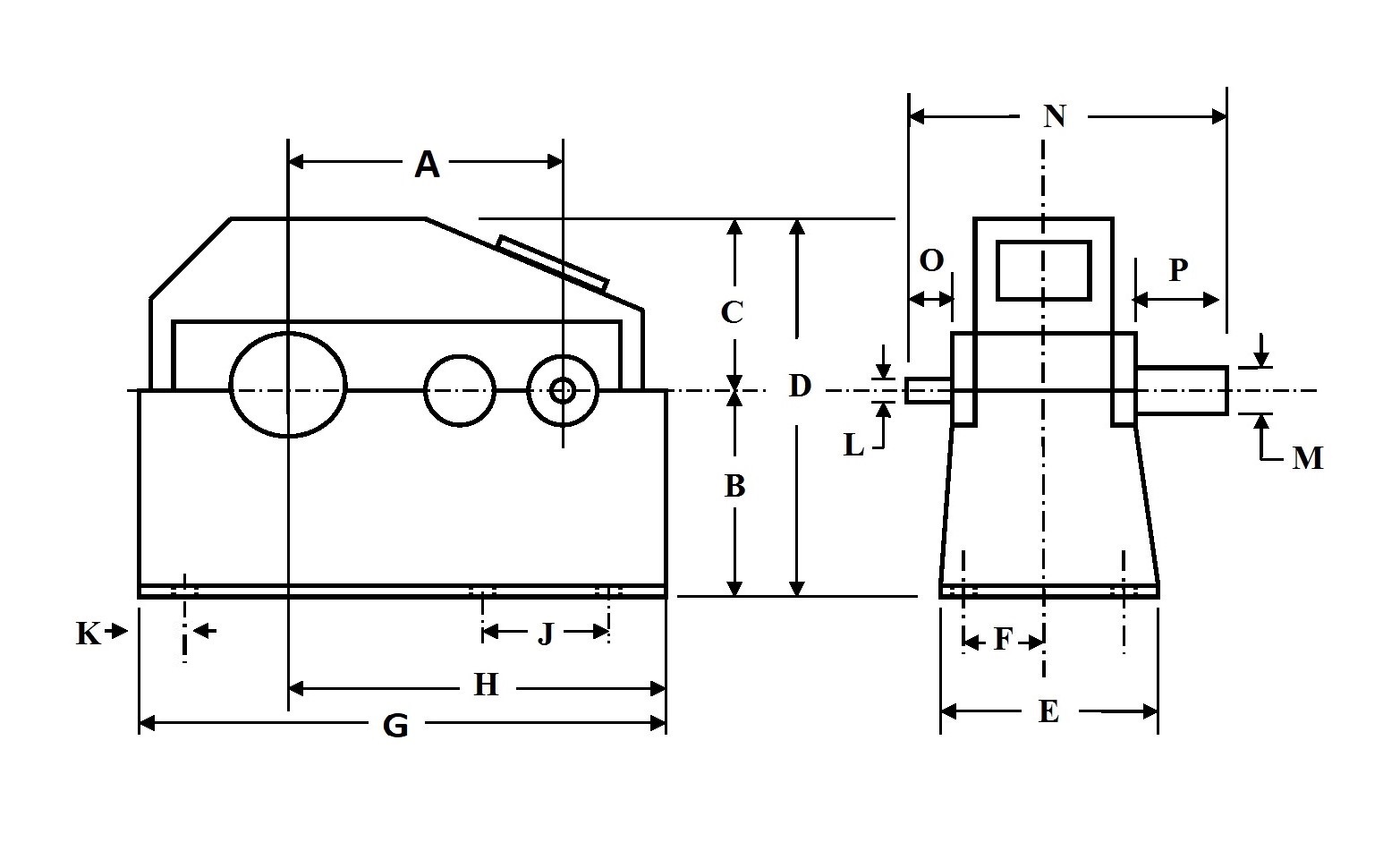

| DIMENSION A | 22.25 |
| DIMENSION B | 12.625 |
| DIMENSION C | 12.25 |
| DIMENSION D | 24.875 |
| DIMENSION E | 21 |
| DIMENSION F | 7.75 |
| DIMENSION G | 40.5 |
| DIMENSION H | 34.5 |
| DIMENSION J | 17.75 |
| DIMENSION K | 2.5 |
| DIMENSION L | 2.125 |
| DINEMSION M | 3.875 |
| DIMENSION N | 33 |
| DIMENSION O | 5.5 |
| DIMENSION P | 8 |
