45 HP (35 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI R13693870-42-1 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "10738000005 45 HP (35 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI R13693870-42-1 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10738000005 45 HP (35 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI R13693870-42-1 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10738000005 45 HP (35 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI R13693870-42-1 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10738000005 45 HP (35 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI R13693870-42-1 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10738000005 45 HP (35 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI R13693870-42-1 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 10738000005 |
| TITLE | 45 HP (35 KW), RPM INPUT 1130/905, 15.0 RATIO, RPM OUTPUT 75/60, MITSUBISHI R13693870-42-1 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 45 |
| RPM INPUT | 1130/905 |
| RATIO | 15:1 RATIO |
| RPM OUTPUT | 75.3/60.3 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | MITSUBISHI |
| YEARS WHEN UPGRADES PERFORMED | Nov-94 |
| DESCRIPTION OF UPGRADES | C&P |
| MODEL NUMBER | R1369-42-1 |
| SERIAL NUMBER | 3870 |
| REDUCTION | DOUBLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1.0 |

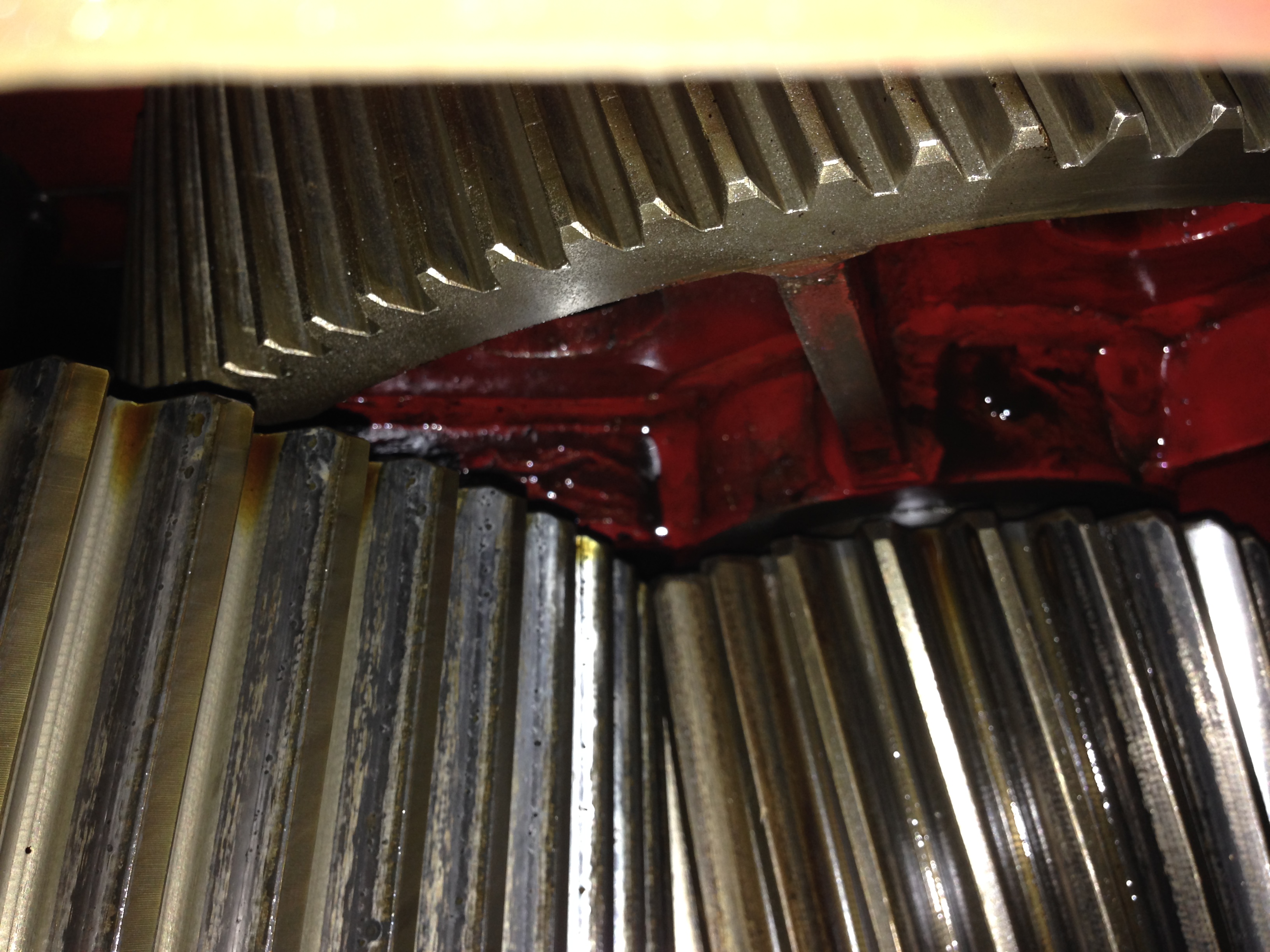

| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |
| PREVIOUS USE | BRIDLE ROLL DRIVE |

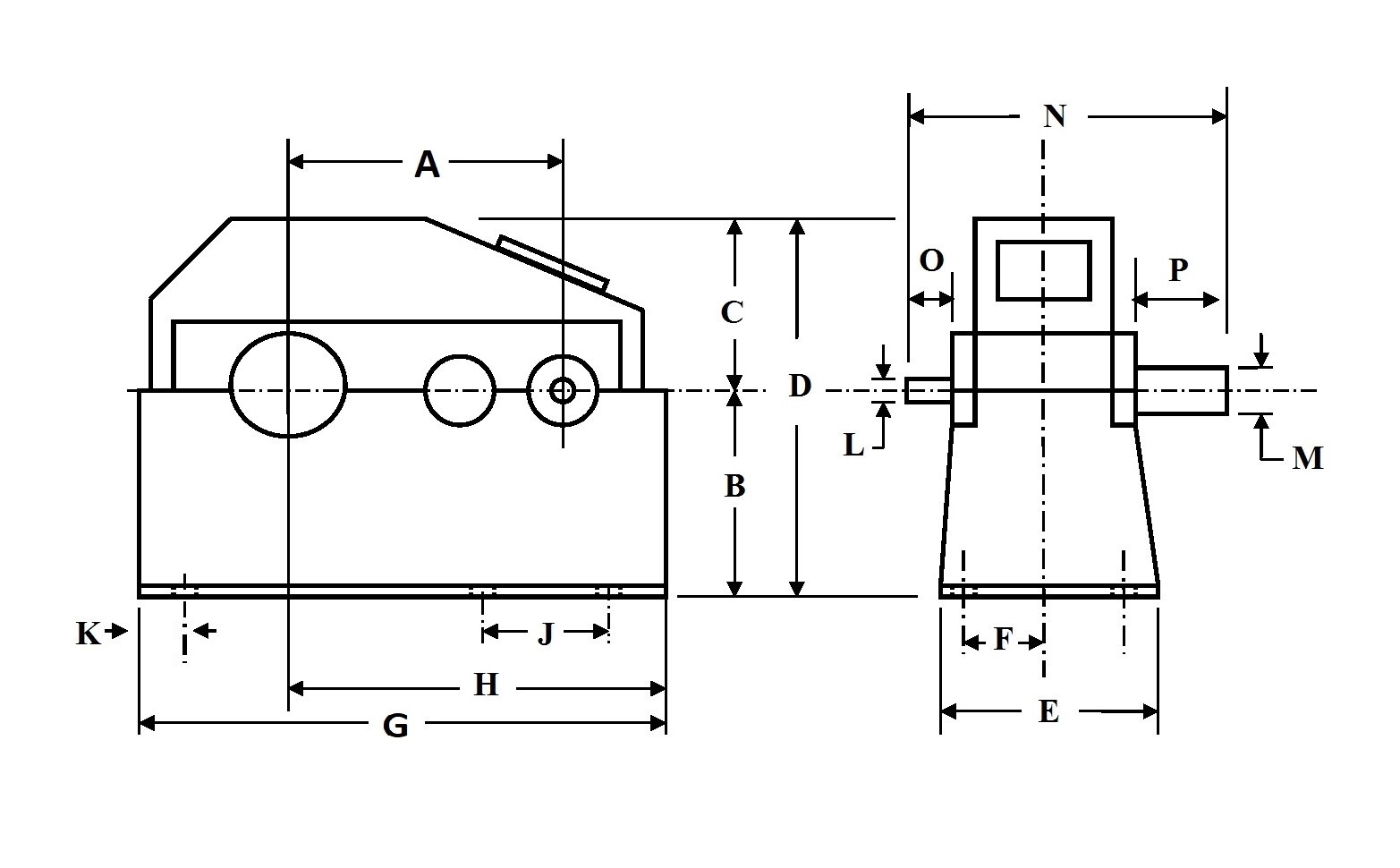

| DIMENSION A | 25.25 |
| DIMENSION B | 14 |
| DIMENSION C | 13.5 |
| DIMENSION D | 27.5 |
| DIMENSION E | 23.25 |
| DIMENSION F | 9.75 |
| DIMENSION G | 46 |
| DIMENSION H | 31.25 |
| DIMENSION J | 20 |
| DIMENSION K | 3 |
| DIMENSION L | 2.5 |
| DINEMSION M | 4.375 |
| DIMENSION N | 28 |
| DIMENSION O | 5.5 |
| DIMENSION P | 7.25 |
