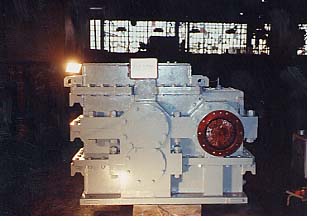

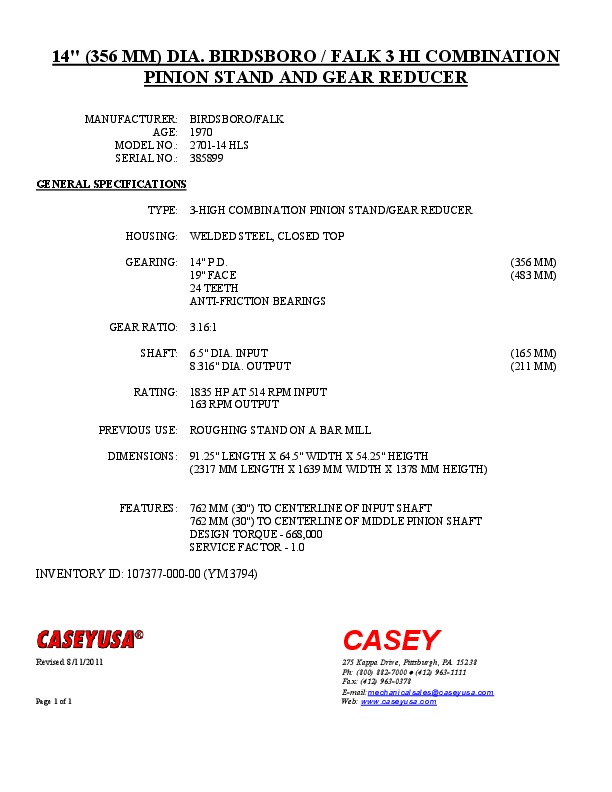

14" (356 MM) BIRDSBORO / FALK 3 HI COMBINATION PINION STAND AND GEAR REDUCER
 "10737700000 14\" (356 MM) BIRDSBORO / FALK 3 HI COMBINATION PINION STAND AND GEAR REDUCER")
 "10737700000 14\" (356 MM) BIRDSBORO / FALK 3 HI COMBINATION PINION STAND AND GEAR REDUCER")
 "10737700000 14\" (356 MM) BIRDSBORO / FALK 3 HI COMBINATION PINION STAND AND GEAR REDUCER")
 "10737700000 14\" (356 MM) BIRDSBORO / FALK 3 HI COMBINATION PINION STAND AND GEAR REDUCER")
| INVENTORY ID | 10737700000 |
| TITLE | 14" (356 MM) BIRDSBORO / FALK 3 HI COMBINATION PINION STAND AND GEAR REDUCER |
| PITCH DIAMETER | 14" |
| MANUFACTURER OF EQUIPMENT | BIRDSBORO/FALK |
| YEAR OF MANUFACTURE | 1970 |
| MODEL NUMBER | 2701-14-HLS |

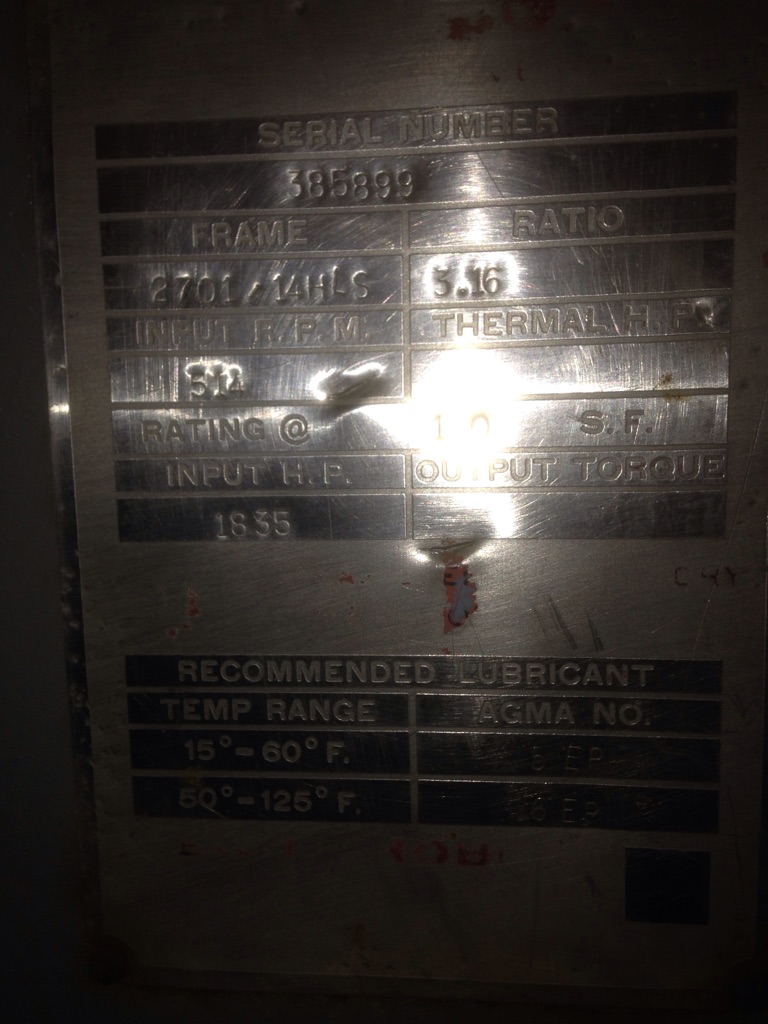

| SERIAL NUMBER | 385899 |
| STAND CONFIGURATION (2HI, 3HI) | 3 |
| RATED HP | 1835 |
| RATED RPM | 514 |
| RATIO TO 1 | 3.16 |
| SVC FACTOR (1.0, 1.5 ETC) | 1.0 |
| INPUT SHAFT DIA | 6.5 |
| OUTPUT SHAFT DIA | 8.316 |

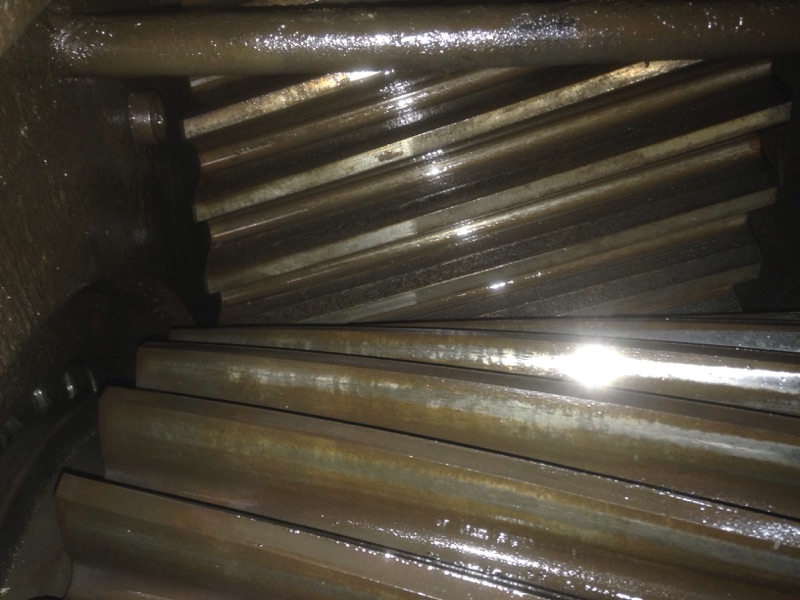

| GEARING P. D. | 14 |
| WEIGHT | 23000 |
| HOUSING TYPE | FAB |
| PREVIOUS USE | BAR MILL ROUGHING STAND |
| FEATURES 1 | DESIGN TORQUE - 668,000 |
| FEATURES 2 | 30" TO CENTERLINE OF INPUT SHAFT |
| FEATURES 3 | 30" TO CENTERLINE OF MIDDLE PINION SHAFT |
