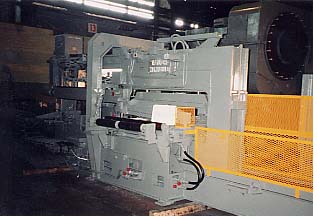

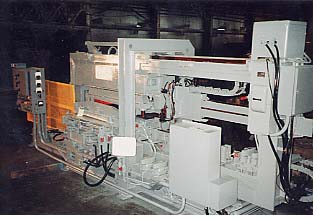

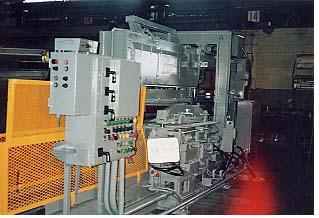

44" WIDE X .075" (1117 MM X 1.905 MM) TAYLOR WINFIELD STRIP WELDER

MANUFACTURER: TAYLOR WINFIELD

AGE: 1963

GENERAL SPECIFICATIONS:

TYPE: ALUMINUM, STAINLESS, AND SILICONE WELDER

SHEAR ARC SEAM WELDER

WIDTH CAPACITY: 10" TO 44" WIDE (254 MM TO 1114 MM)

GAUGE: .025" TO .0747" CARBON STEEL (0.635 MM TO 1.9 MM)

.025" TO .050" ELECTRICAL STEELS (0.635 MM TO 1.27 MM)

(LINE RAN .007" TO .075" GAUGE) (0.17 MM TO 1.9 MM)

PASS LINE: 42" (1066 MM)

WIDTH CLEARANCE: 50" STRIP (1270 MM)

KNIFE: 48" WIDTH X 4" DEPTH X 1/2" THICK (1219 MM X 102 MM X 13 MM)

ENTRY ROLLER: 4-1/4" DIA X 50" FACE (108 MM X 1270 MM)

CLAMP OPENING: 4" (101 MM)PASS: RIGHT TO LEFT (RIGHT HAND)

TORCH: TI.G.

DIMENSIONS: 208" LENGTH X 66-1/2" WIDTH X 89" HEIGHT (5283 MM LENGTH X 1689 MM WIDTH X 2261 MM HEIGHT)

FEATURES:

ENTRY CLAMP AND SHEAR

EXIT CLAMP AND SHEAR

TORCH WELD

APPLICATION: FOR USE IN STAINLESS, ALUMINUM, SILICON STEEL AND OTHER MATERIALS THAT ARE NOT CONDUCIVE TO RESISTENT WELDING.

INVENTORY #: 107354-000-00

INVENTORY ID	10735400000
TITLE	44" WIDE X .075" (1117 MM X 1.905 MM) TAYLOR WINFIELD STRIP WELDER
PRODUCT WIDTH	44
PRODUCT GAUGE	0.075
MANUFACTURER OF EQUIPMENT	TAYLOR WINFIELD
SERIAL NO	980146
TYPE OF WELDER (BUTT, SPOT, ARC)	ARC
LINE SPEED	80 FPM THREADING SPEED
