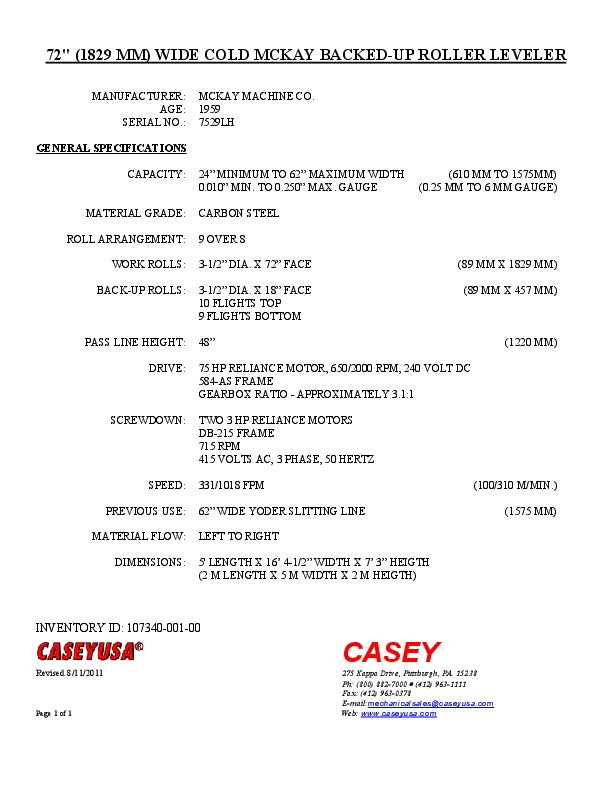

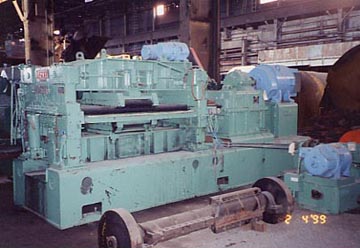

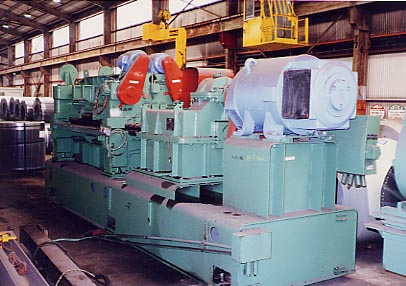

72" (1829 MM) WIDE X .25" MCKAY PLATE LEVELER
 "10734000100 72\" (1829 MM) WIDE X .25\" MCKAY PLATE LEVELER")
 "10734000100 72\" (1829 MM) WIDE X .25\" MCKAY PLATE LEVELER")
| INVENTORY ID | 10734000100 |
| TITLE | 72" (1829 MM) WIDE X .25" MCKAY PLATE LEVELER |
| WIDTH | 62 INCH |
| GAUGE MAX | 0.25 INCH |
| MANUFACTURER OF EQUIPMENT | MCKAY |
| YEAR OF MANUFACTURE | 1959 |
| SERIAL NO | 7529LH |
| PROD CAPAC WIDE MIN | 24 |
| PROD CAPAC WIDE MAX | 62 |
| GAUGE MIN | .010 |
| ROLL ARRANGEMENT (X OVER Y) | 9 OVER 8 |
| WR DIA | 3.5 |
| WR FACE | 72 |
| SCREWDOWN TYPE | MOTORIZED |
| NUMBER SCREWDOWN MOTORS | 2 |
| SD HORSEPOWER | 3 |
| SD MANUFACTURER | RELIANCE |
| SD FRAME | DB-215 |
| SD RPM MAX | 715 |
| SD VOLTAGE | 415 |
| SD AC OR DC | AC |
| SD MOTOR PHASE | 3 |
| SD MOTOR CYCLE | 60 |
| BU ROLL DIA | 3.5 |
| BU ROLL FACE | 18 |
| MATERIAL FLOW DIRECTION (FROM OPERATORS SIDE) | LEFT TO RIGHT |
| PASS LINE HEIGHT | 48 |
| LINE SPEED MIN | 331 |
| LINE SPEED MAX | 1018 |
| MOTOR HP | 75 |
| MOTOR RPM | 650/2000 |
| MOTOR VOLTS | 240 |
