QTY. 2- CUTLER HAMMER RESPONDER ENCLOSED DRIVES
* STARTS WITH A 180 AMP 3 POLE AC CIRCUIT BREAKER - WITH AN OUTSIDE DOOR HANDLE
* GOES INTO A 3 POLE CONTACTOR AND THEN INTO A CUTLER HAMMER RESPONDER MODULE

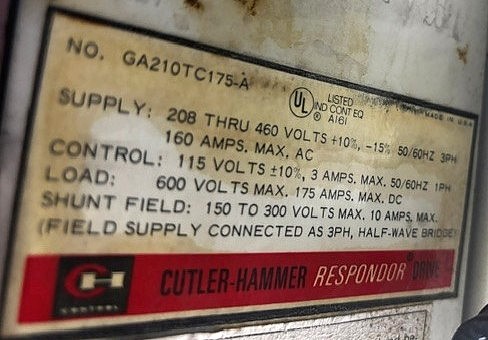

* THE MODULE IS RATED:
* 160 AMPS AC INPUT 208-460 VOLTS
* 175 AMPS 600 VOLTS DC OUTPUT WITH 10 AMPS 150/300 VOLTS FOR THE FIELDS
* #GA210TC 175-A

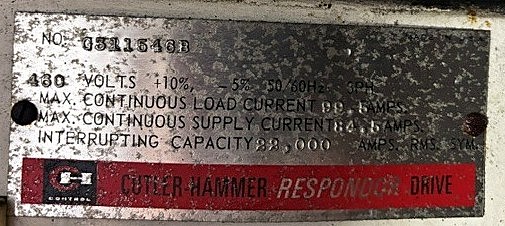

* DRIVES WERE RATED 460/3/60 CYCLE INPUT 84.5 AMPS TO THE LOAD #G 311546B

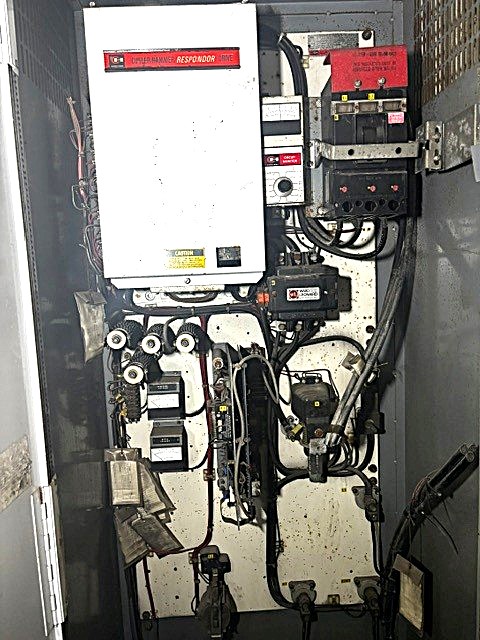

CONSISTS OF:

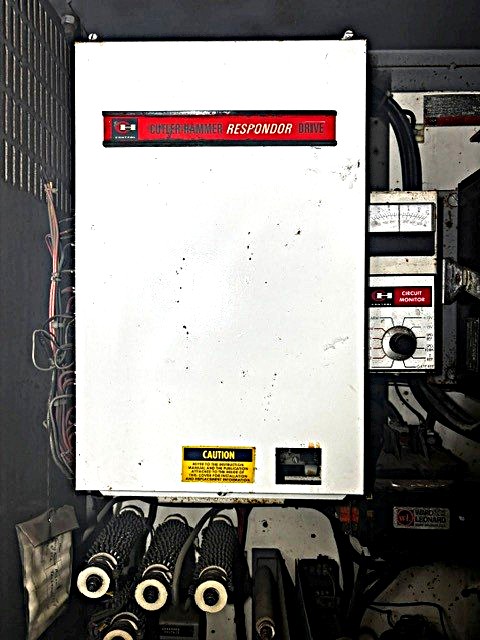

RESPONDER DRIVE
4 ROUND RESISTORS
3 SHAWNUT 170P200 FUSES
CIRCUIT MONITOR
180 AMP MOLDED BREAKER
SPEED REGULATOR CONTROL
OL
DC VOLT METER
DC AMP METER
CABINET FAN
90" X 19.5" X 30"
TAG# 107308-049-01 & 107308-049-02
| INVENTORY ID | 10730804901 |
| TITLE | QTY. (2) CUTLER HAMMER RESPONDER ENCLOSED DRIVES |
| AMPS | 160 ACI NPUT 208-460 VOLTS / 175 AMPS 600 VOLT DC OUTPUT |
| MANUFACTURER | CUTLER HAMMER |
| TYPE | RESPONDER DRIVE |
