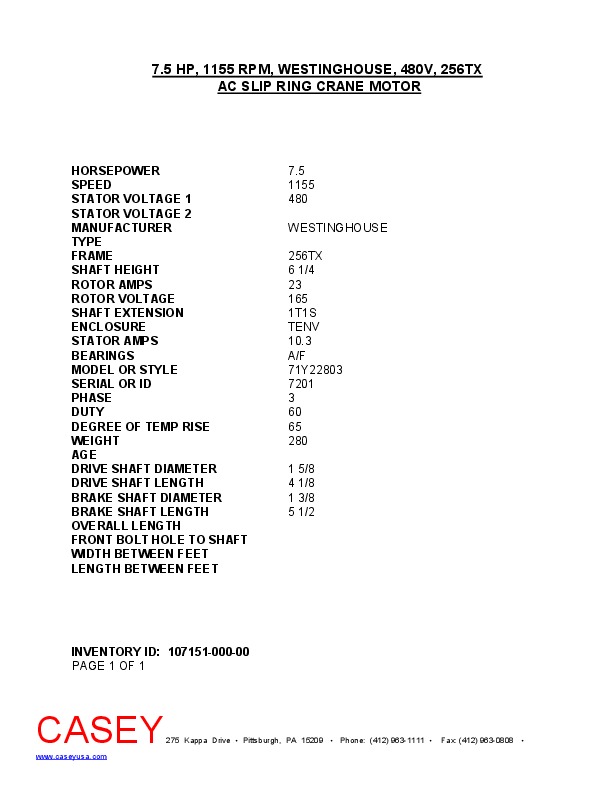

7.5 HP, 1155 RPM, WESTINGHOUSE, 480V, 256TX AC SLIP RING CRANE MOTOR
 "10715100000 7.5 HP, 1155 RPM, WESTINGHOUSE, 480V, 256TX AC SLIP RING CRANE MOTOR")
| INVENTORY ID | 10715100000 |
| TITLE | 7.5 HP, 1155 RPM, WESTINGHOUSE, 480V, 256TX AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 7.5 |
| SPEED | 1155 |
| STATOR VOLTAGE 1 | 480 |
| MANUFACTURER | WESTINGHOUSE |
| FRAME | 256TX |
| SHAFT HEIGHT | 6 1/4 |
| ROTOR AMPS | 23 |
| ROTOR VOLTS | 165 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TENV |
| STATOR AMPS | 10.3 |
| BEARINGS | A/F |
| MODEL NUMBER OR STYLE NUMBER | 71Y22803 |
| SERIAL NUMBER OR ID NUMBER | 7201 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| DEGREE OF TEMPERATURE RISE | 65 |
| WEIGHT | 280 |
| DRIVE SHAFT DIAMETER | 1 5/8 |
| DRIVE SHAFT LENGTH | 4 1/8 |
| BRAKE SHAFT DIAMETER | 1 3/8 |
| BRAKE SHAFT LENGTH | 5 1/2 |
