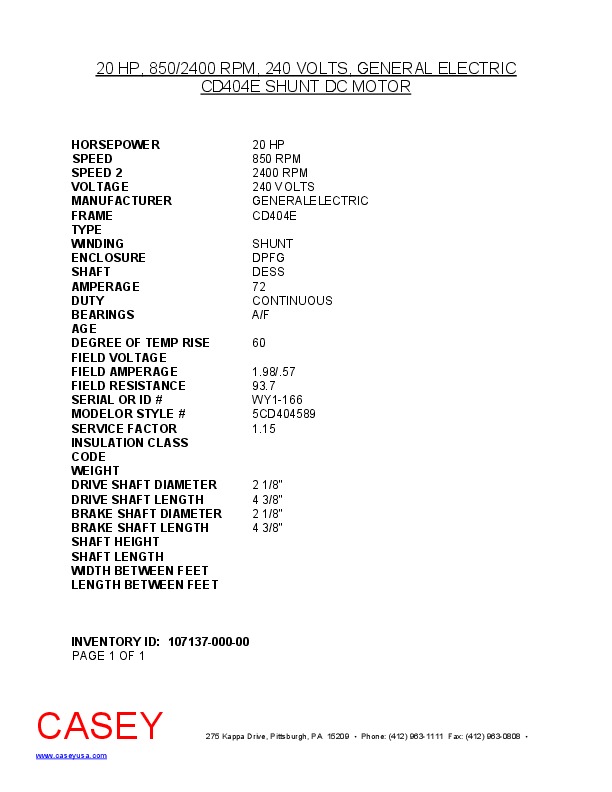

20 HP, 850/2400 RPM, 240 VOLTS, GENERAL ELECTRIC, CD404E SHUNT USED DC MOTOR
| INVENTORY ID | 10713700000 |
| TITLE | 20 HP, 850/2400 RPM, 240 VOLTS, GENERAL ELECTRIC, CD404E SHUNT USED DC MOTOR |
| HORSEPOWER | 20 HP |
| SPEED | 850 RPM |
| SPEED 2 | 2400 RPM |
| VOLTAGE | 240 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 404E |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | DPFG |
| SHAFT | DESS |
| AMPERAGE | 72 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD AMPERAGE | 1.98/.57 |
| FIELD RESISTANCE | 93.7 |
| DEGREE OF TEMPERATURE RISE | 60 |
| SERIAL NUMBER OR ID NUMBER | WY1-166 |
| MODEL NUMBER OR STYLE NUMBER | 5CD404589 |
| SERVICE FACTOR | 1.15 |
| DRIVE SHAFT DIMENSION | 2 1/8" |
| DRIVE SHAFT LENGTH | 4 3/8" |
| BRAKE SHAFT DIAMETER | 2 1/8" |
| BRAKE SHAFT LENGTH | 4 3/8" |
