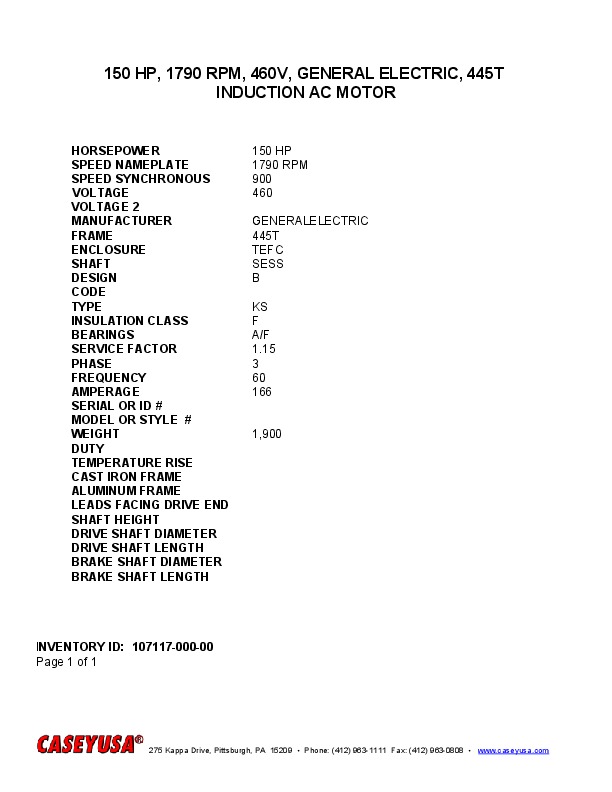

150 HP 1790 RPM, 460V, GENERAL ELECTRIC, 445T INDUCTION AC MOTOR
| INVENTORY ID | 10711700000 |
| TITLE | 150 HP 1790 RPM, 460V, GENERAL ELECTRIC, 445T INDUCTION AC MOTOR |
| HORSEPOWER | 150 HP |
| SPEED NAMEPLATE | 1790 RPM |
| SPEED SYNCHRONOUS | 900 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 445T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| TYPE | KS |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 166 |
| WEIGHT | 1,900 |
| CAST ALUM FRAME | YES |
| LEADS FACING DRIVE END | LEFT |
| SHAFT HEIGHT | 11 1/4" |
| DRIVE SHAFT DIAMETER | 3 3/8" |
| DRIVE SHAFT LENGTH | 8 3/4' |
