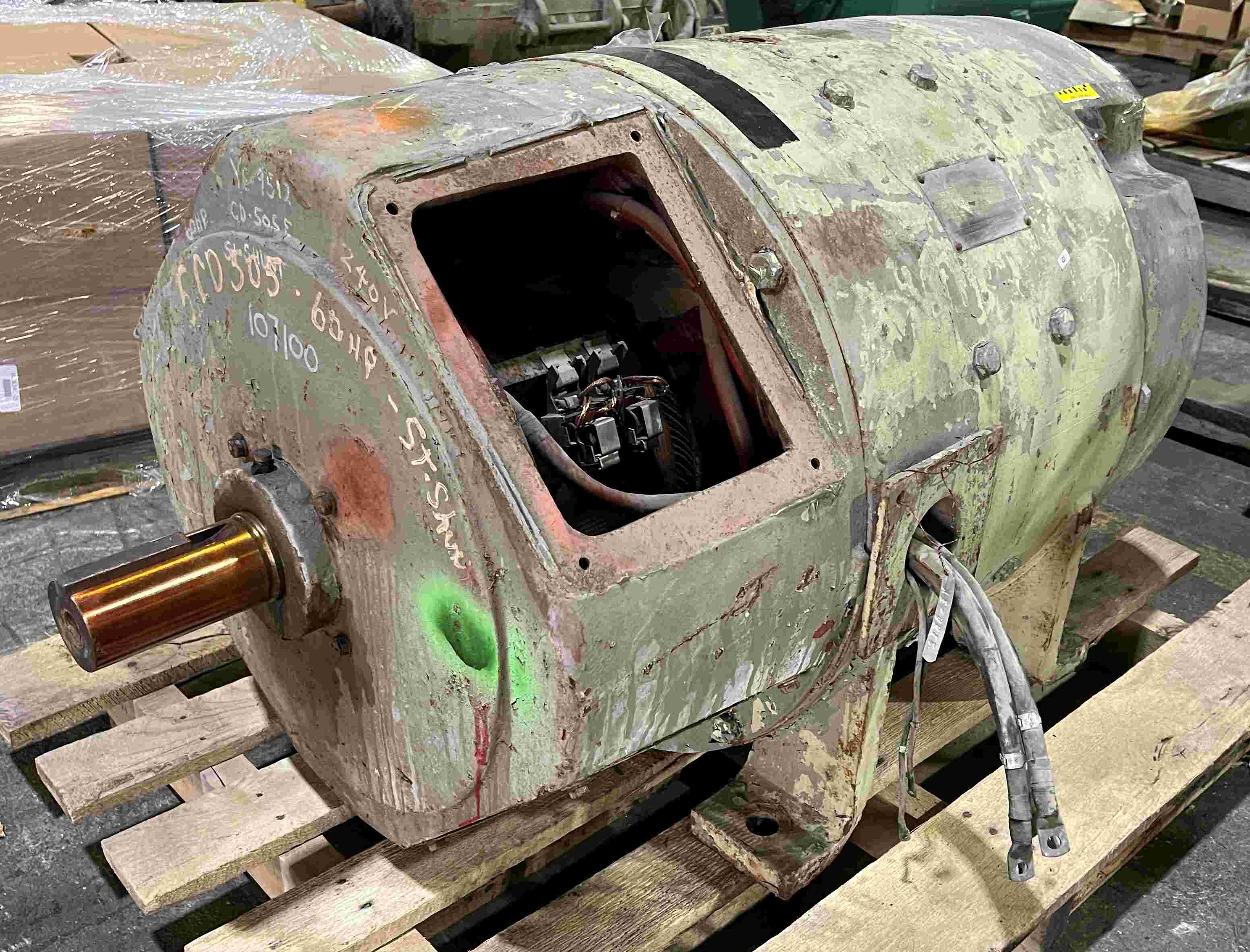

60 HP, 850/1700 RPM, 240 VOLT, GENERAL ELECTRIC, CD505, SHUNT DC MOTOR
 "10710000000 60 HP, 850/1700 RPM, 240 VOLT, GENERAL ELECTRIC, CD505, SHUNT DC MOTOR")
 "10710000000 60 HP, 850/1700 RPM, 240 VOLT, GENERAL ELECTRIC, CD505, SHUNT DC MOTOR")
| INVENTORY ID | 10710000000 |
| TITLE | 60 HP, 850/1700 RPM, 240 VOLT, GENERAL ELECTRIC, CD505, SHUNT DC MOTOR |
| HORSEPOWER | 60 |
| SPEED | 850 |
| SPEED 2 | 1700 |
| VOLTAGE | 240 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | CD5050 |
| WINDING | SHUNT |
| ENCLOSURE | DPFG |
| SHAFT | DESS |
| AMPERAGE | 205 |
| DUTY | CONT |
| BEARINGS | A/F |
| FIELD VOLTAGE | 190 |
| FIELD AMPERAGE | 3.15/1.2 |
| FIELD RESISTANCE | 60.5 |
| DEGREE OF TEMPERATURE RISE | 60 |
| SERIAL NUMBER OR ID NUMBER | OW1-666 |
| MODEL NUMBER OR STYLE NUMBER | 5CD505E214A |
| SERVICE FACTOR | 1.15 |
| WEIGHT | 1,995 |
| DRIVE SHAFT DIMENSION | 2 5/8" |
| DRIVE SHAFT LENGTH | 5" |
| BRAKE SHAFT DIAMETER | 2 5/8" |
| BRAKE SHAFT LENGTH | 5" |
| SHAFT HEIGHT | 12 1/2" |
| SHAFT LENGTH | 49" |
| WIDTH BETWEEN FEET | 20" |
| LENGTH BETWEEN FEET | 17 3/4" |
