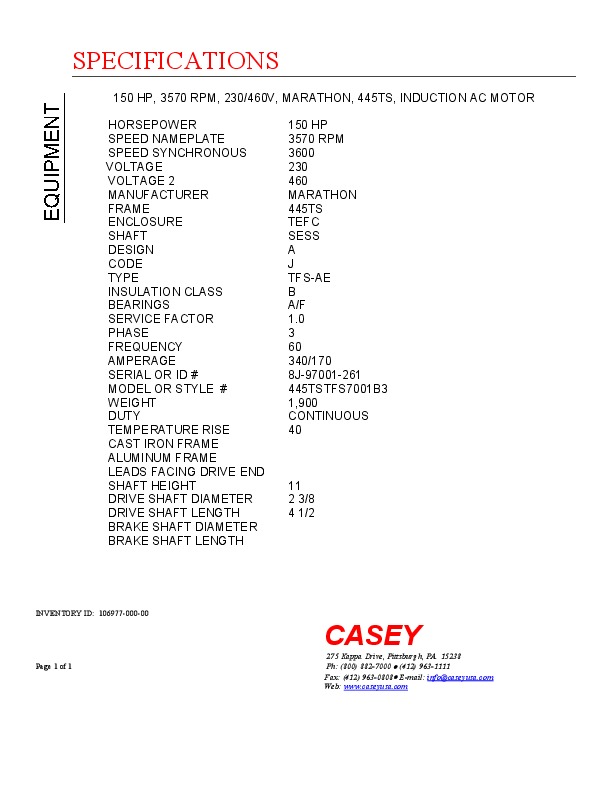

150 HP, 3570 RPM, 230/460V, MARATHON, 445TS, INDUCTION AC MOTOR
 "10697700000 150 HP, 3570 RPM, 230/460V, MARATHON, 445TS, INDUCTION AC MOTOR")
| INVENTORY ID | 10697700000 |
| TITLE | 150 HP, 3570 RPM, 230/460V, MARATHON, 445TS, INDUCTION AC MOTOR |
| HORSEPOWER | 150 HP |
| SPEED NAMEPLATE | 3570 RPM |
| SPEED SYNCHRONOUS | 3600 |
| VOLTAGE | 230 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | MARATHON |
| FRAME | 445TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | A |
| CODE | J |
| TYPE | TFS-AE |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.0 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 340/170 |
| SERIAL NUMBER OR ID NUMBER | 8J-97001-261 |
| MODEL NUMBER OR STYLE NUMBER | 445TSTFS7001B3 |
| WEIGHT | 1,900 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| SHAFT HEIGHT | 11 |
| DRIVE SHAFT DIAMETER | 2 3/8 |
| DRIVE SHAFT LENGTH | 4 1/2 |
