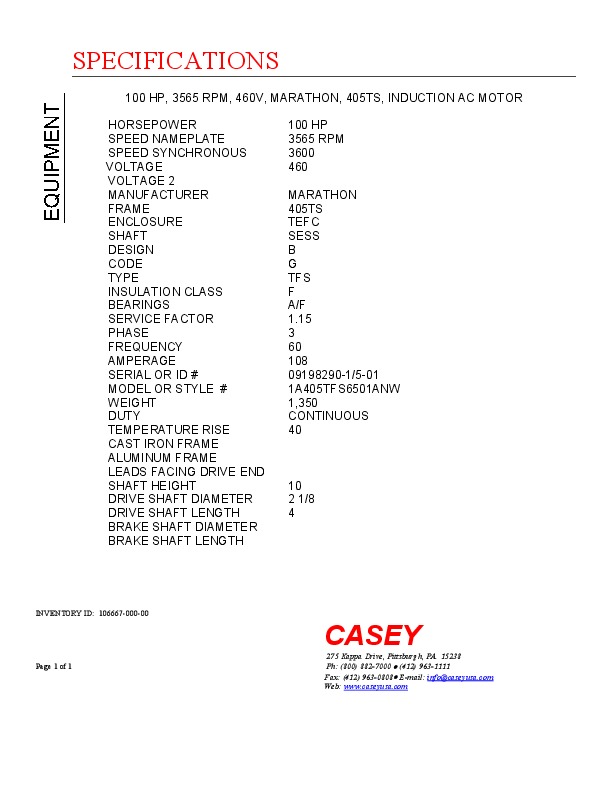

100 HP, 3565 RPM, 460V, MARATHON, 405TS, INDUCTION AC MOTOR
| INVENTORY ID | 10666700000 |
| TITLE | 100 HP, 3565 RPM, 460V, MARATHON, 405TS, INDUCTION AC MOTOR |
| HORSEPOWER | 100 HP |
| SPEED NAMEPLATE | 3565 RPM |
| SPEED SYNCHRONOUS | 3600 |
| VOLTAGE | 460 |
| MANUFACTURER | MARATHON |
| FRAME | 405TS |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | G |
| TYPE | TFS |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| SERVICE FACTOR | 1.15 |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 108 |
| SERIAL NUMBER OR ID NUMBER | 09198290-1/5-01 |
| MODEL NUMBER OR STYLE NUMBER | 1A405TFS6501ANW |
| WEIGHT | 1,350 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 40 |
| SHAFT HEIGHT | 10 |
| DRIVE SHAFT DIAMETER | 2 1/8 |
| DRIVE SHAFT LENGTH | 4 |
