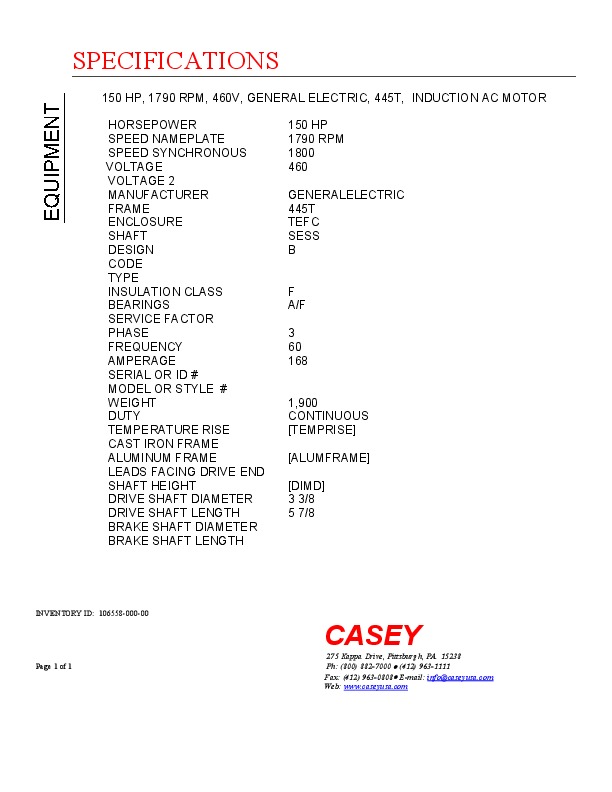

150 HP, 1790 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR
 "10655800000 150 HP, 1790 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR")
| INVENTORY ID | 10655800000 |
| TITLE | 150 HP, 1790 RPM, 460V, GENERAL ELECTRIC, 445T, INDUCTION AC MOTOR |
| HORSEPOWER | 150 HP |
| SPEED NAMEPLATE | 1790 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 460 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 445T |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| INSULATION CLASS | F |
| BEARINGS | A/F |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 168 |
| WEIGHT | 1,900 |
| DUTY | CONTINUOUS |
| CAST ALUM FRAME | YES |
| LEADS FACING DRIVE END | RIGHT |
| SHAFT HEIGHT | 10 1/2" |
| DRIVE SHAFT DIAMETER | 3 3/8 |
| DRIVE SHAFT LENGTH | 5 7/8 |
