18.9 HP (14 KW), RPM INPUT 850, 5.5 RATIO, RPM OUTPUT 155, HORSBURGH & SCOTT LS 1300 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "10621700000 18.9 HP (14 KW), RPM INPUT 850, 5.5 RATIO, RPM OUTPUT 155, HORSBURGH & SCOTT LS 1300 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10621700000 18.9 HP (14 KW), RPM INPUT 850, 5.5 RATIO, RPM OUTPUT 155, HORSBURGH & SCOTT LS 1300 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10621700000 18.9 HP (14 KW), RPM INPUT 850, 5.5 RATIO, RPM OUTPUT 155, HORSBURGH & SCOTT LS 1300 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10621700000 18.9 HP (14 KW), RPM INPUT 850, 5.5 RATIO, RPM OUTPUT 155, HORSBURGH & SCOTT LS 1300 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 10621700000 |
| TITLE | 18.9 HP (14 KW), RPM INPUT 850, 5.5 RATIO, RPM OUTPUT 155, HORSBURGH & SCOTT LS 1300 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 18.9 |
| RPM INPUT | 850 |
| RATIO | 5.5:1 RATIO |
| RPM OUTPUT | 155 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |
| MANUFACTURER OF EQUIPMENT | HORSBURGH AND SCOTT |
| YEARS WHEN UPGRADES PERFORMED | Nov-97 |
| DESCRIPTION OF UPGRADES | C&P |
| MODEL NUMBER | LS-1300 |
| SERIAL NUMBER | J-4317 |
| REDUCTION | SINGLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1 |
| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |

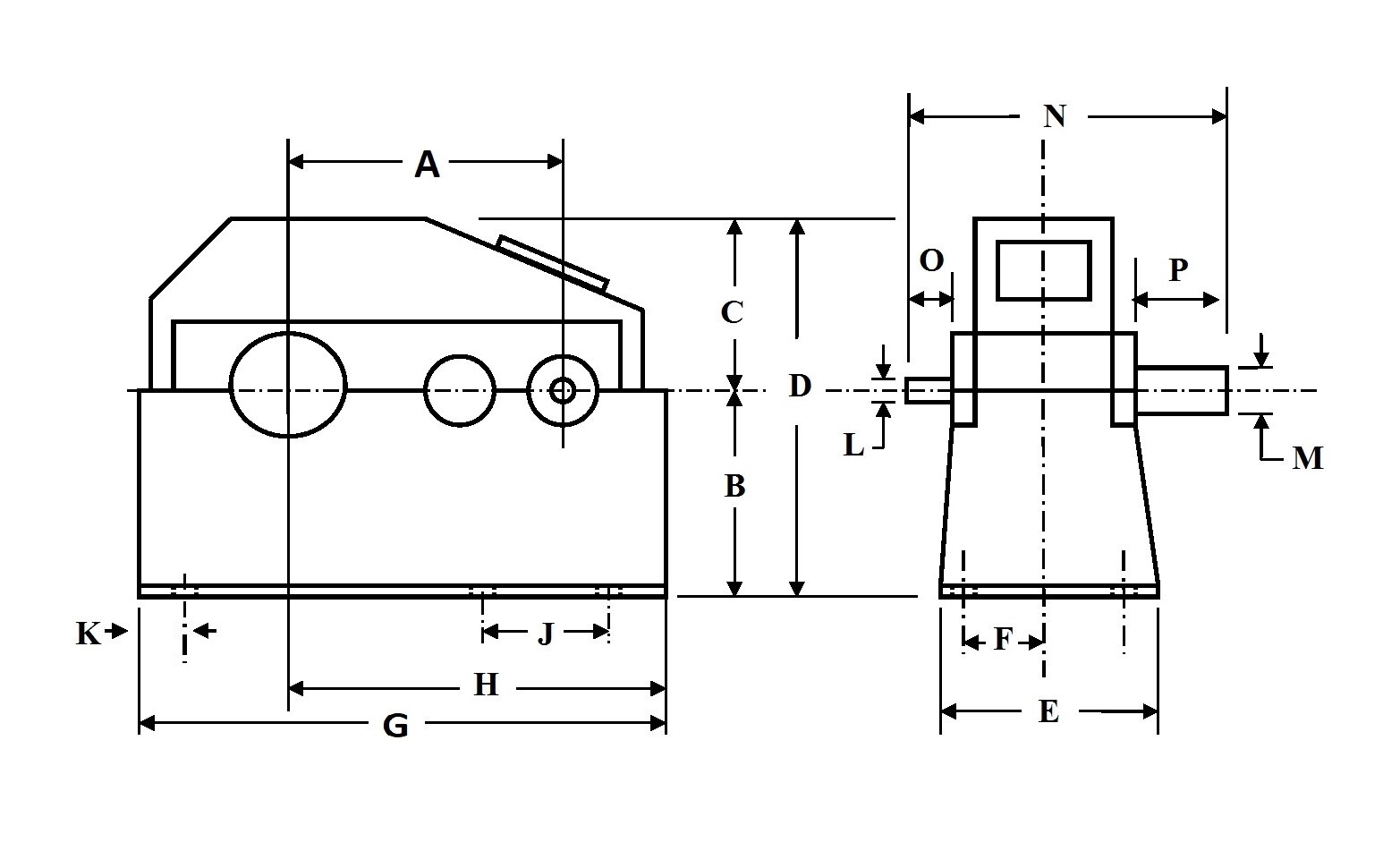

| DIMENSION A | 6.5 |
| DIMENSION B | 7.75 |
| DIMENSION C | 7 |
| DIMENSION D | 14.75 |
| DIMENSION E | 12 |
| DIMENSION F | 4.5 |
| DIMENSION G | 19.375 |
| DIMENSION H | 11 |
| DIMENSION K | 1.625 |
| DIMENSION L | 1.375 |
| DINEMSION M | 2.375 |
| DIMENSION N | 20 |
| DIMENSION O | 2.75 |
| DIMENSION P | 3.75 |
