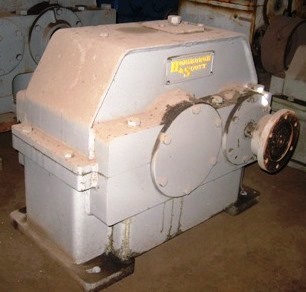

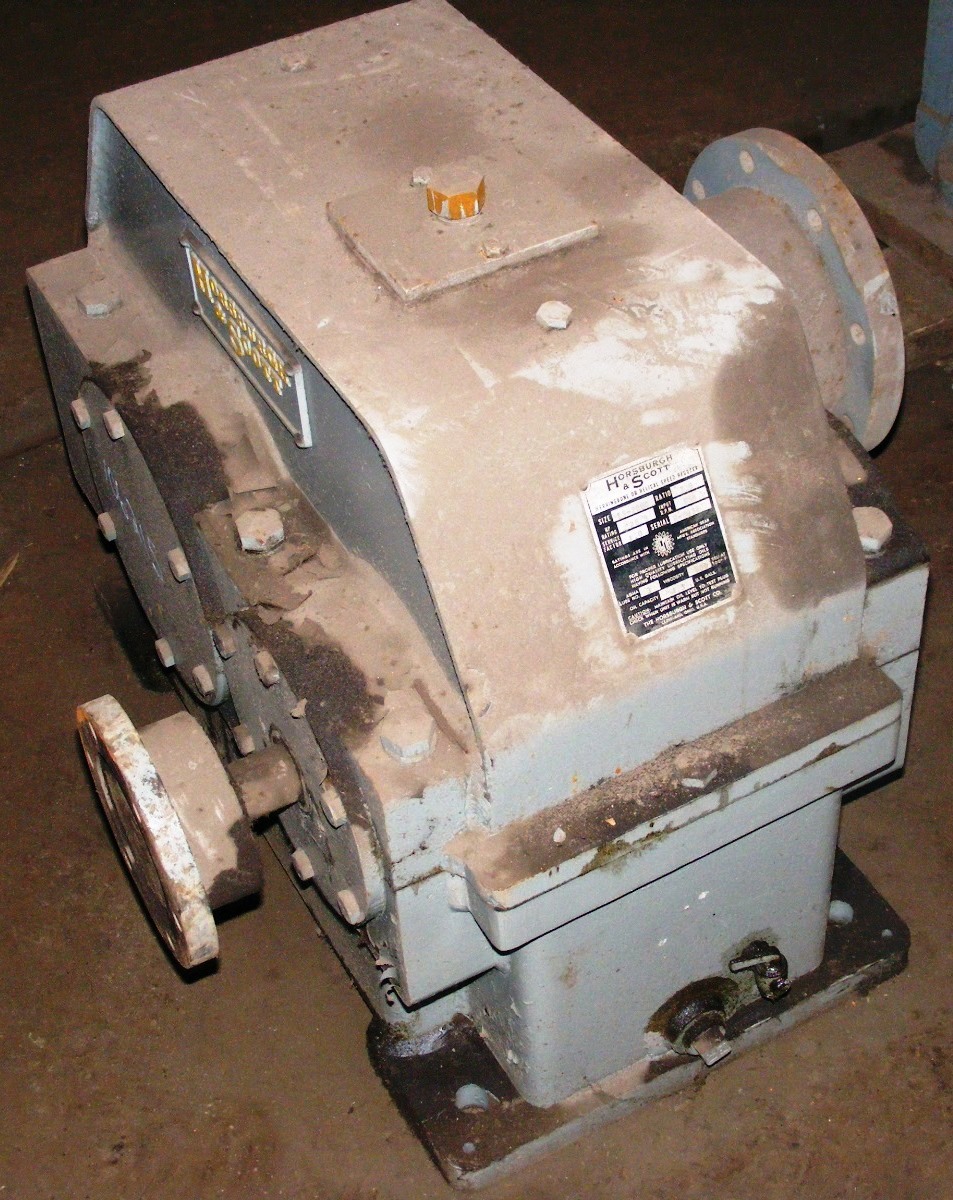

28.9 HP (21 KW), RPM INPUT 650, 7.9 RATIO, RPM OUTPUT 82, HORSBURGH & SCOTT LS 2000 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED
 "10621500000 28.9 HP (21 KW), RPM INPUT 650, 7.9 RATIO, RPM OUTPUT 82, HORSBURGH & SCOTT LS 2000 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10621500000 28.9 HP (21 KW), RPM INPUT 650, 7.9 RATIO, RPM OUTPUT 82, HORSBURGH & SCOTT LS 2000 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10621500000 28.9 HP (21 KW), RPM INPUT 650, 7.9 RATIO, RPM OUTPUT 82, HORSBURGH & SCOTT LS 2000 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10621500000 28.9 HP (21 KW), RPM INPUT 650, 7.9 RATIO, RPM OUTPUT 82, HORSBURGH & SCOTT LS 2000 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
 "10621500000 28.9 HP (21 KW), RPM INPUT 650, 7.9 RATIO, RPM OUTPUT 82, HORSBURGH & SCOTT LS 2000 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED")
| INVENTORY ID | 10621500000 |
| TITLE | 28.9 HP (21 KW), RPM INPUT 650, 7.9 RATIO, RPM OUTPUT 82, HORSBURGH & SCOTT LS 2000 PARALLEL GEAR REDUCER / SPEED REDUCER / GEARBOX, USED |
| HORSEPOWER | 28.9 |
| RPM INPUT | 650 |
| RATIO | 7.9:1 RATIO |
| RPM OUTPUT | 82 |
| GEARBOX SHAFT ARRANGEMENT | PARALLEL |

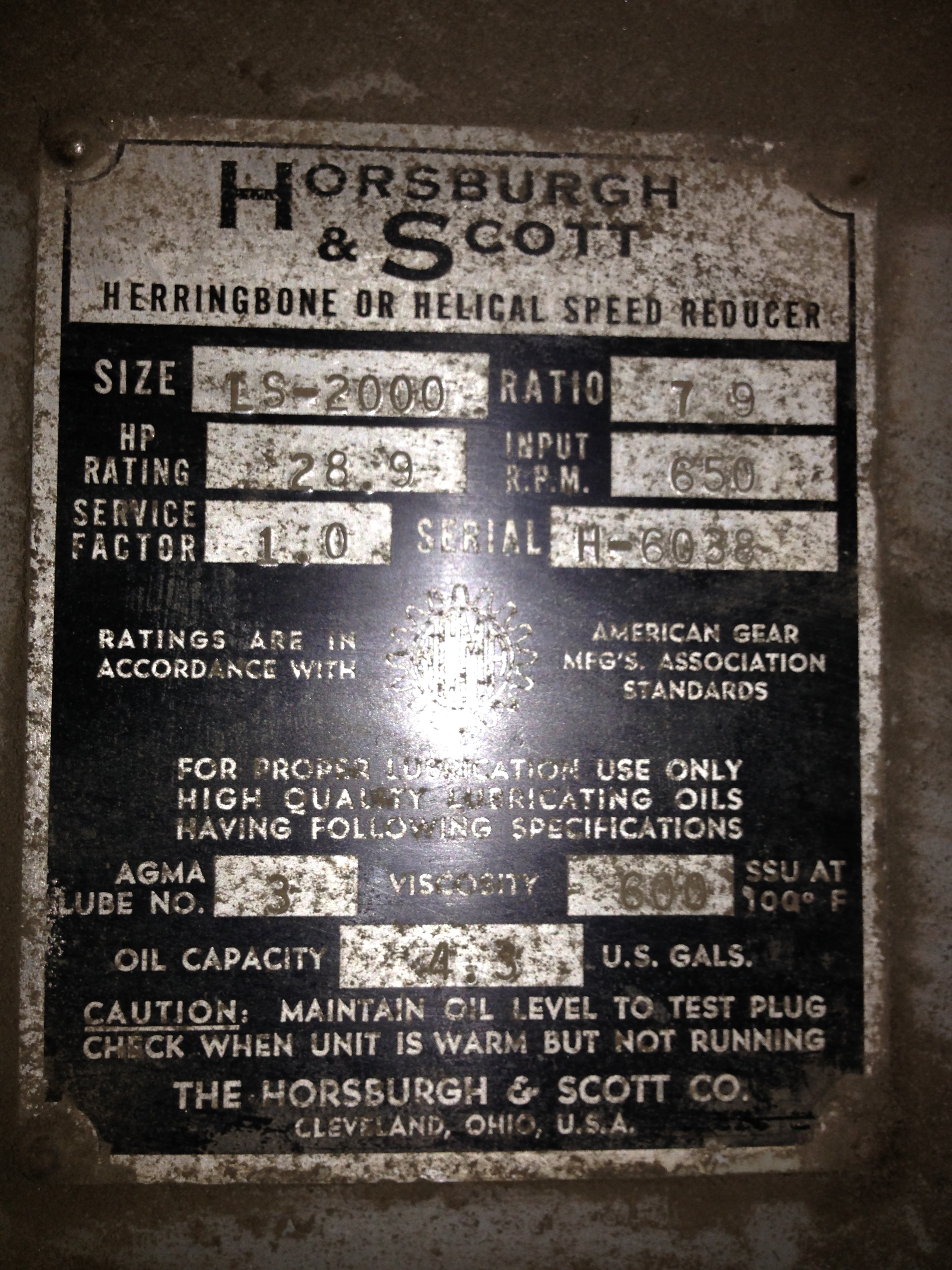

| MANUFACTURER OF EQUIPMENT | HORSBURGH AND SCOTT |
| YEARS WHEN UPGRADES PERFORMED | Nov-97 |
| DESCRIPTION OF UPGRADES | CLEANED AND PAINTED |
| MODEL NUMBER | LS 2000 |
| SERIAL NUMBER | H 6038 |
| REDUCTION | SINGLE |
| SVC FACTOR (1.0, 1.5 ETC) | 1 |

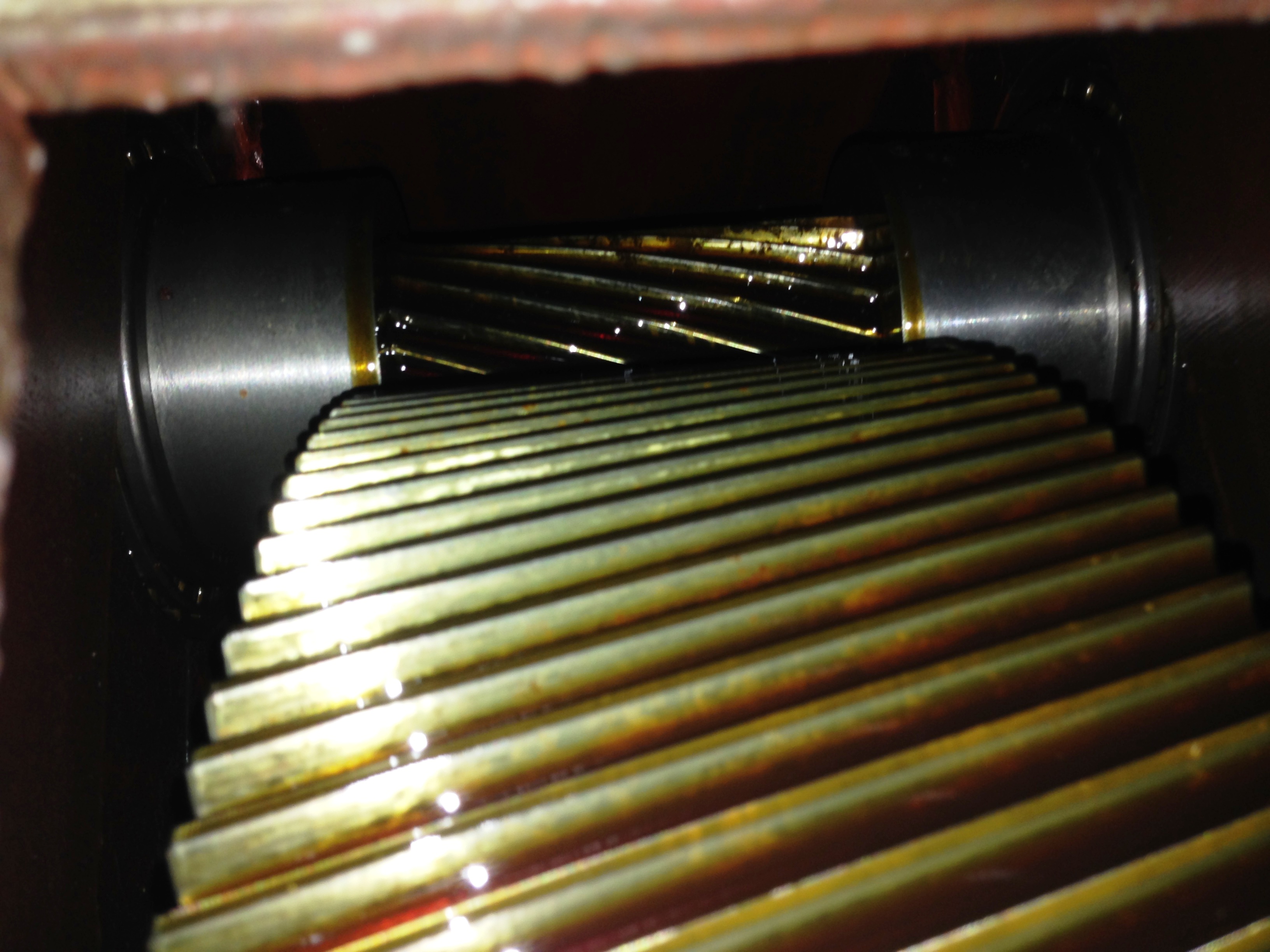

| GEAR TYPE (HERRINGBONE, WORM, ETC) | HELICAL |
| BEARING TYPE | ROLLER |

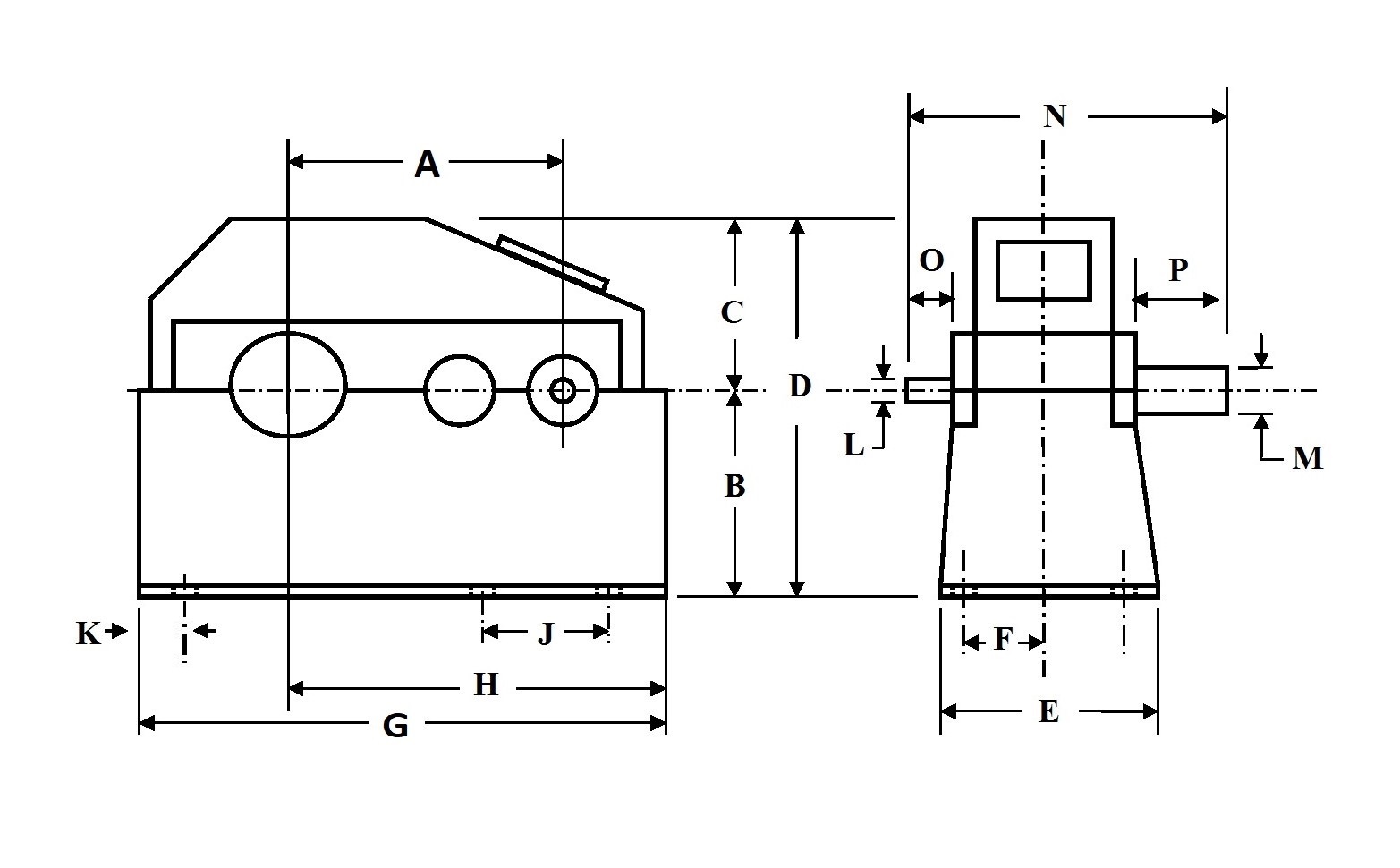

| DIMENSION A | 10.25 |
| DIMENSION B | 12 |
| DIMENSION C | 10.5 |
| DIMENSION D | 22.5 |
| DIMENSION E | 15.5 |
| DIMENSION F | 6.25 |
| DIMENSION G | 28.25 |
| DIMENSION H | 16.5 |
| DIMENSION J | 24.5 |
| DIMENSION K | 2.25 |
| DIMENSION L | 1.5 |
| DINEMSION M | 3.5 |
| DIMENSION N | 26.5 |
| DIMENSION O | 4 |
| DIMENSION P | 5.75 |
