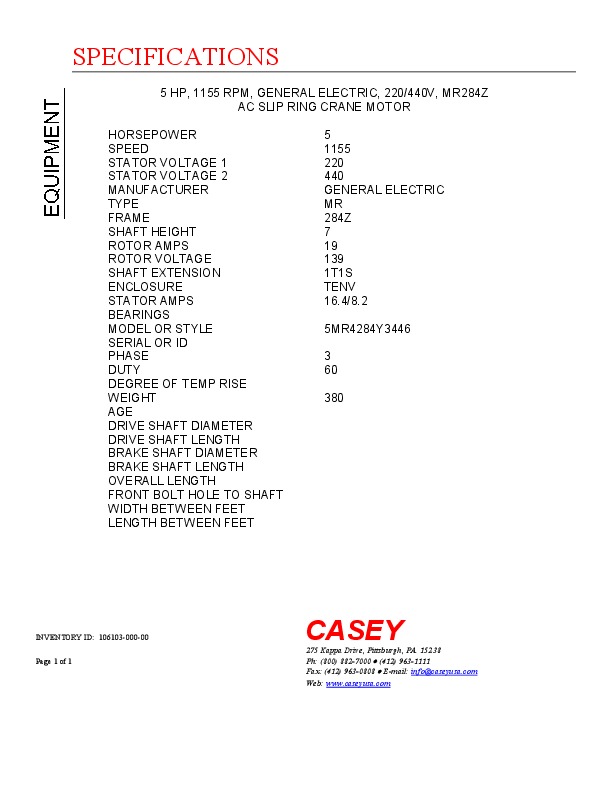

5 HP, 1155 RPM, GENERAL ELECTRIC, 220/440V, MR284Z, AC SLIP RING CRANE MOTOR
 "10610300000 5 HP, 1155 RPM, GENERAL ELECTRIC, 220/440V, MR284Z, AC SLIP RING CRANE MOTOR")
| INVENTORY ID | 10610300000 |
| TITLE | 5 HP, 1155 RPM, GENERAL ELECTRIC, 220/440V, MR284Z, AC SLIP RING CRANE MOTOR |
| HORSEPOWER | 5 |
| SPEED | 1155 |
| STATOR VOLTAGE 1 | 220 |
| STATOR VOLTAGE 2 | 440 |
| MANUFACTURER | GENERAL ELECTRIC |
| TYPE | MR |
| FRAME | 284Z |
| SHAFT HEIGHT | 7 |
| ROTOR AMPS | 19 |
| ROTOR VOLTS | 139 |
| SHAFT EXTENSION | 1T1S |
| ENCLOSURE | TENV |
| STATOR AMPS | 16.4/8.2 |
| MODEL NUMBER OR STYLE NUMBER | 5MR4284Y3446 |
| PHASE | 3 |
| DUTY (MINUTES) | 60 |
| WEIGHT | 380 |
