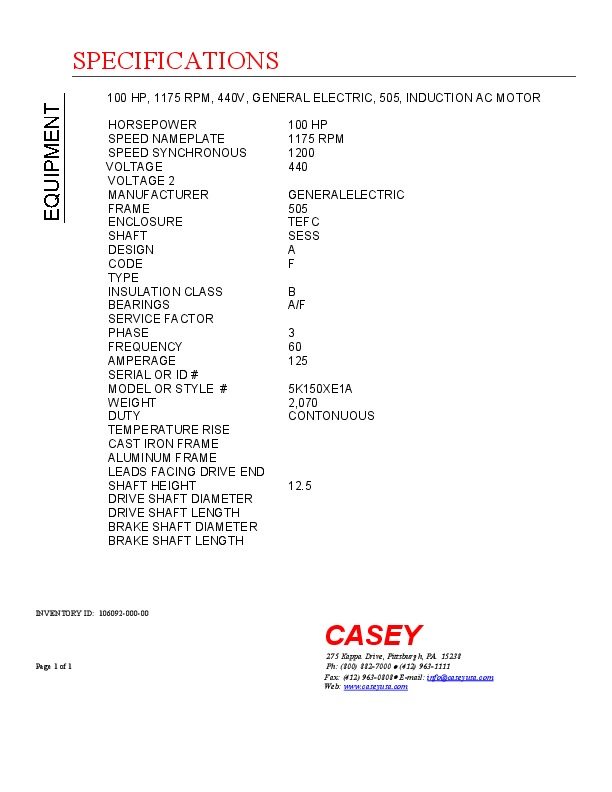

100 HP, 1175 RPM, 440V, GENERAL ELECTRIC, 505, INDUCTION AC MOTOR
| INVENTORY ID | 10609200000 |
| TITLE | 100 HP, 1175 RPM, 440V, GENERAL ELECTRIC, 505, INDUCTION AC MOTOR |
| HORSEPOWER | 100 HP |
| SPEED NAMEPLATE | 1175 RPM |
| SPEED SYNCHRONOUS | 1200 |
| VOLTAGE | 440 |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 505 |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | A |
| CODE | F |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 125 |
| MODEL NUMBER OR STYLE NUMBER | 5K150XE1A |
| WEIGHT | 2,070 |
| DUTY | CONTONUOUS |
| SHAFT HEIGHT | 12.5 |
