125 HP, 1750 RPM, 500V, GENERAL ELECTRIC, CD504A, STAB SHUNT USED DC MOTOR
 "10574600000 125 HP, 1750 RPM, 500V, GENERAL ELECTRIC, CD504A, STAB SHUNT USED DC MOTOR")
 "10574600000 125 HP, 1750 RPM, 500V, GENERAL ELECTRIC, CD504A, STAB SHUNT USED DC MOTOR")

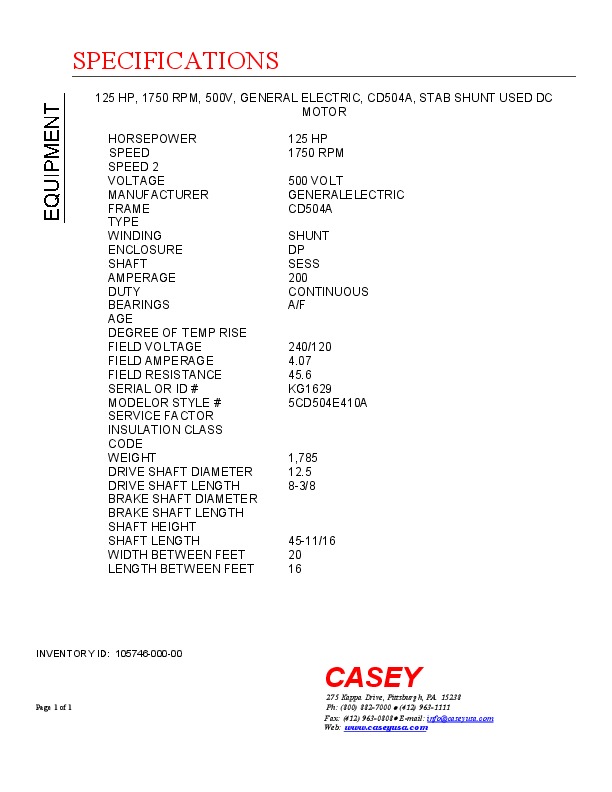

| INVENTORY ID | 10574600000 |
| TITLE | 125 HP, 1750 RPM, 500V, GENERAL ELECTRIC, CD504A, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 125 HP |
| SPEED | 1750 RPM |
| VOLTAGE | 500 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |

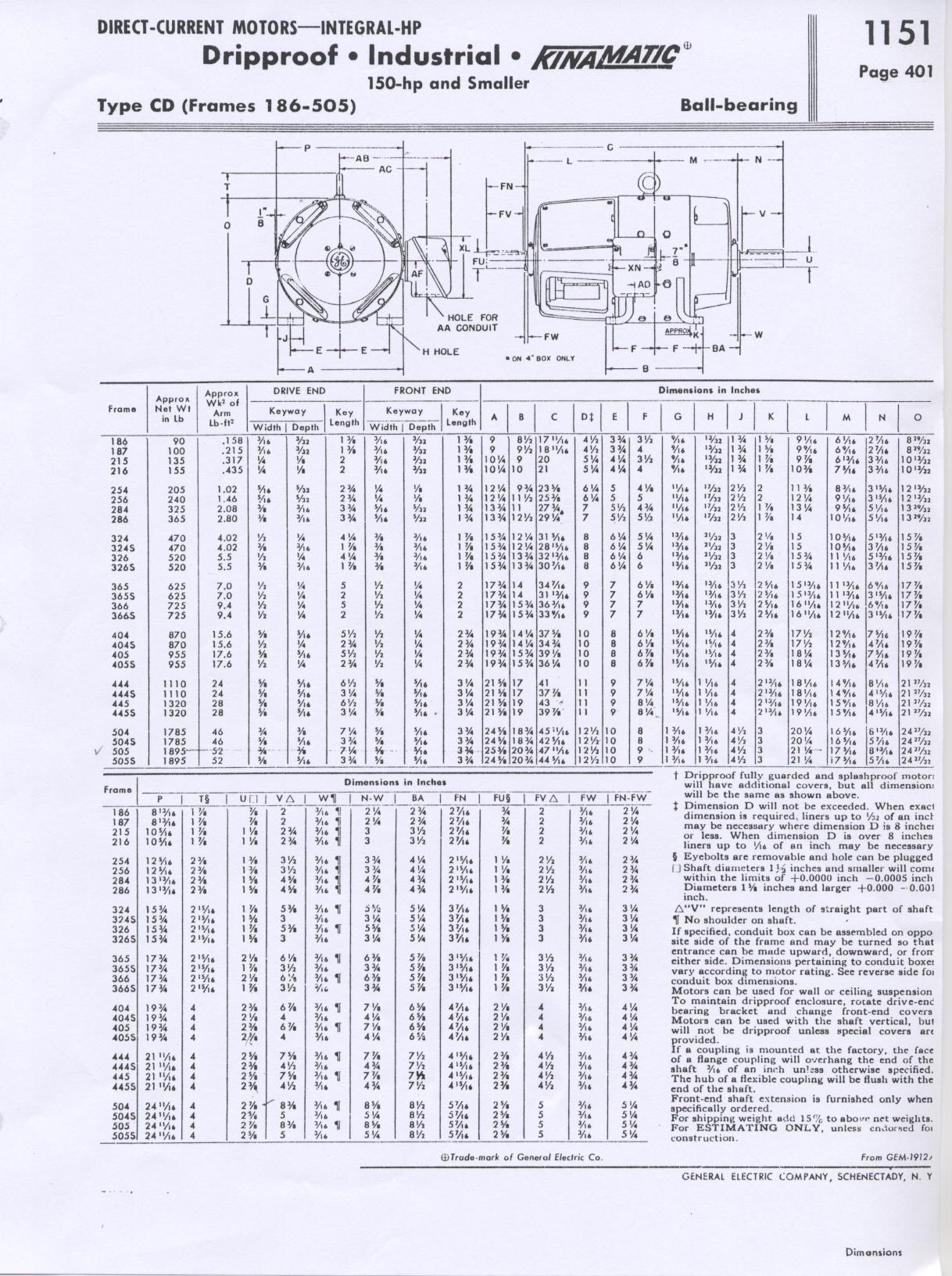

| FRAME | 504A |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | DP |
| SHAFT | SESS |
| AMPERAGE | 200 |
| DUTY | CONTINUOUS |
| BEARINGS | A/F |
| FIELD VOLTAGE | 240/120 |
| FIELD AMPERAGE | 4.07 |
| FIELD RESISTANCE | 45.6 |
| SERIAL NUMBER OR ID NUMBER | KG1629 |
| MODEL NUMBER OR STYLE NUMBER | 5CD504E410A |
| WEIGHT | 1,785 |
| DRIVE SHAFT DIMENSION | 12.5 |
| DRIVE SHAFT LENGTH | 8-3/8 |
| MOTOR LENGTH | 45-11/16 |
| WIDTH BETWEEN FEET | 20 |
| LENGTH BETWEEN FEET | 16 |
