QTY (2) 150 HP, 1750/2000 RPM, 250V, GENERAL ELECTRIC, CD505, STAB SHUNT USED DC MOTOR
 "10544700000 QTY (2) 150 HP, 1750/2000 RPM, 250V, GENERAL ELECTRIC, CD505, STAB SHUNT USED DC MOTOR")
 "10544700000 QTY (2) 150 HP, 1750/2000 RPM, 250V, GENERAL ELECTRIC, CD505, STAB SHUNT USED DC MOTOR")

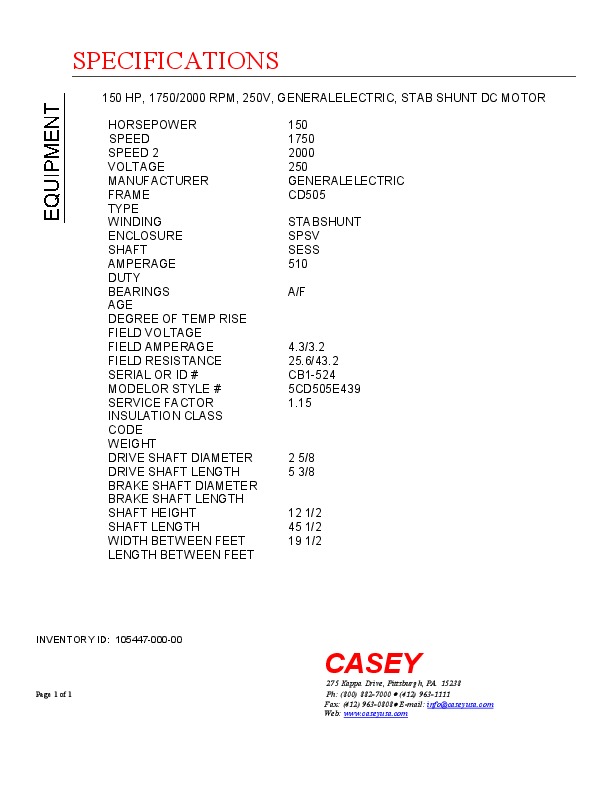

| INVENTORY ID | 10544700000 |
| TITLE | QTY (2) 150 HP, 1750/2000 RPM, 250V, GENERAL ELECTRIC, CD505, STAB SHUNT USED DC MOTOR |
| HORSEPOWER | 150 HP |
| SPEED | 1750 RPM |
| SPEED 2 | 2000 RPM |
| VOLTAGE | 250 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |

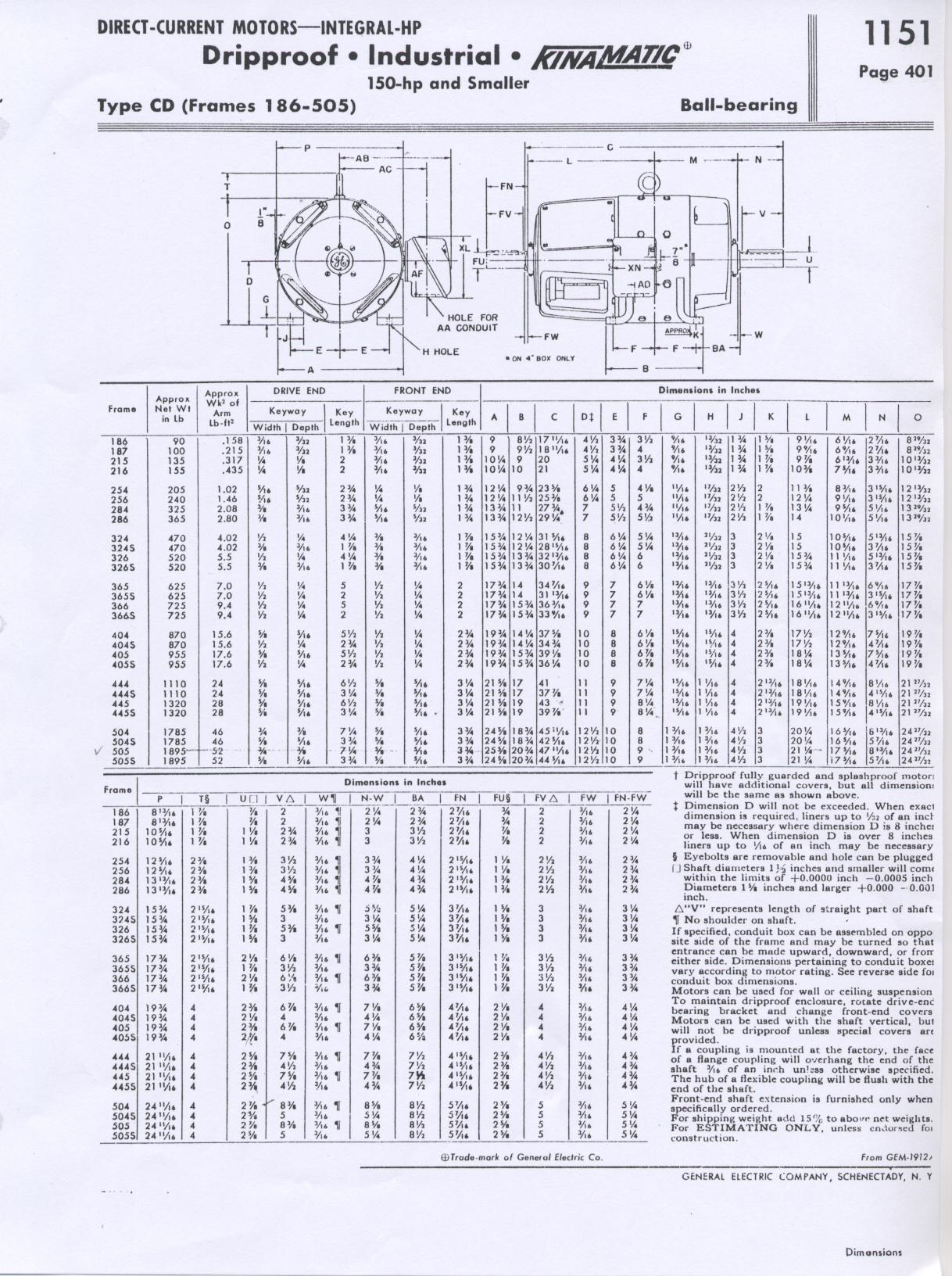

| FRAME | 505 |
| TYPE | CD |
| WINDING | STABSHUNT |
| ENCLOSURE | SPSV |
| SHAFT | SESS |
| AMPERAGE | 510 |
| BEARINGS | A/F |
| FIELD AMPERAGE | 4.3/3.2 |
| FIELD RESISTANCE | 25.6/43.2 |
| SERIAL NUMBER OR ID NUMBER | CB1-524 |
| MODEL NUMBER OR STYLE NUMBER | 5CD505E439 |
| SERVICE FACTOR | 1.15 |
| DRIVE SHAFT DIMENSION | 2 5/8 |
| DRIVE SHAFT LENGTH | 5 3/8 |
| SHAFT HEIGHT | 12 1/2 |
| SHAFT LENGTH | 45 1/2 |
| WIDTH BETWEEN FEET | 19 1/2 |
