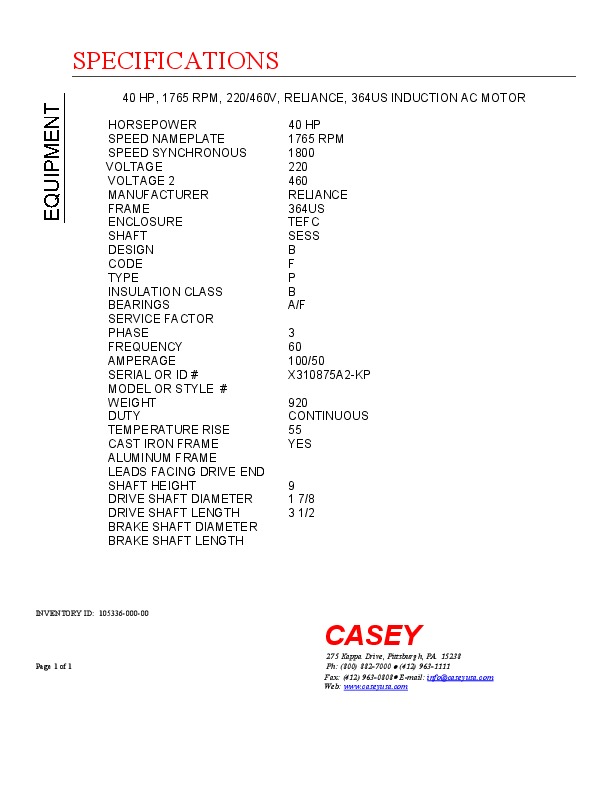

40 HP, 1765 RPM, 220/460V, RELIANCE, 364US INDUCTION AC MOTOR
| INVENTORY ID | 10533600000 |
| TITLE | 40 HP, 1765 RPM, 220/460V, RELIANCE, 364US INDUCTION AC MOTOR |
| HORSEPOWER | 40 HP |
| SPEED NAMEPLATE | 1765 RPM |
| SPEED SYNCHRONOUS | 1800 |
| VOLTAGE | 220 |
| VOLTAGE 2 | 460 |
| MANUFACTURER | RELIANCE |
| FRAME | 364US |
| ENCLOSURE | TEFC |
| SHAFT | SESS |
| DESIGN | B |
| CODE | F |
| TYPE | P |
| INSULATION CLASS | B |
| BEARINGS | A/F |
| PHASE | 3 |
| FREQUENCY | 60 |
| AMPERAGE | 100/50 |
| SERIAL NUMBER OR ID NUMBER | X310875A2-KP |
| WEIGHT | 920 |
| DUTY | CONTINUOUS |
| TEMPERATURE RISE | 55 |
| CAST IRON FRAME | YES |
| SHAFT HEIGHT | 9 |
| DRIVE SHAFT DIAMETER | 1 7/8 |
| DRIVE SHAFT LENGTH | 3 1/2 |
