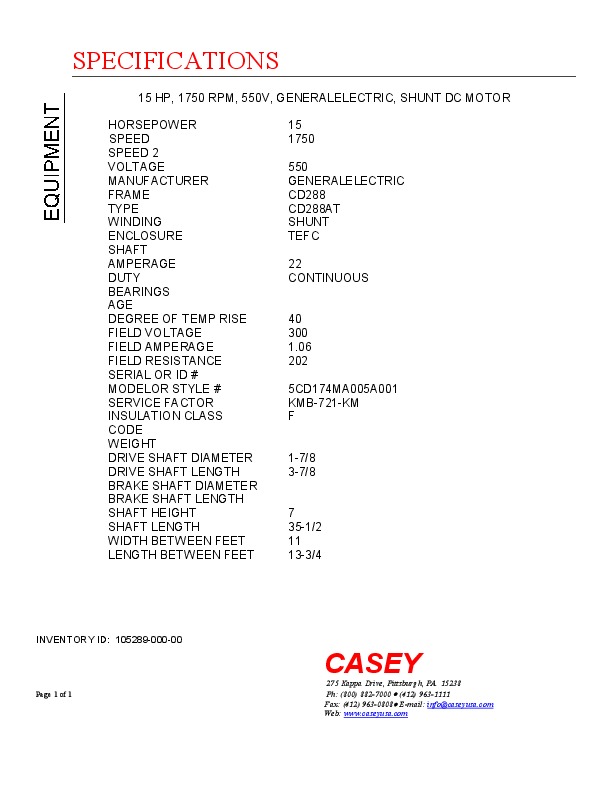

15 HP, 1750 RPM, 550V, GENERAL ELECTRIC, CD288, SHUNT USED DC MOTOR
| INVENTORY ID | 10528900000 |
| TITLE | 15 HP, 1750 RPM, 550V, GENERAL ELECTRIC, CD288, SHUNT USED DC MOTOR |
| HORSEPOWER | 15 HP |
| SPEED | 1750 RPM |
| VOLTAGE | 550 VOLT |
| MANUFACTURER | GENERAL ELECTRIC |
| FRAME | 288AT |
| TYPE | CD |
| WINDING | SHUNT |
| ENCLOSURE | TEFC |
| AMPERAGE | 22 |
| DUTY | CONTINUOUS |
| FIELD VOLTAGE | 300 |
| FIELD AMPERAGE | 1.06 |
| FIELD RESISTANCE | 202 |
| DEGREE OF TEMPERATURE RISE | 40 |
| MODEL NUMBER OR STYLE NUMBER | 5CD174MA005A001 |
| SERVICE FACTOR | KMB-721-KM |
| INSULATION CLASS | F |
| DRIVE SHAFT DIMENSION | 1-7/8 |
| DRIVE SHAFT LENGTH | 3-7/8 |
| SHAFT HEIGHT | 7 |
| MOTOR LENGTH | 35-1/2 |
| WIDTH BETWEEN FEET | 11 |
| LENGTH BETWEEN FEET | 13-3/4 |
